6 Installation
FLUXUS F501 6.2 Transducers
37
UMFLUXUS_F501V1-3EN, 2020-06-30
Select the installation instructions according to the supplied clasp:
Band clamp clasp
Insert the tension strap into the tension strap clamp (2), see Fig. 6.22.
Place the tension strap around the pipe and insert it into the clasp, see Fig. 6.23.
Tighten the tension strap.
Tighten the clasp screw.
Tighten the nut of the tension strap clamp (2), but not too firmly in order not to damage the tension strap, see Fig. 6.22.
Quick release clasp
Insert the tension strap into the tension strap clamp (2) and the metal spring, see Fig. 6.22 and Fig. 6.24.
Place the tension strap around the pipe and insert it into the clasp.
Position the metal spring opposite to the tension strap clamp (2).
Tighten the tension strap.
Tighten the clasp screw.
Tighten the nut of the tension strap clamp (2), but not too firmly in order not to damage the tension strap, see Fig. 6.22.

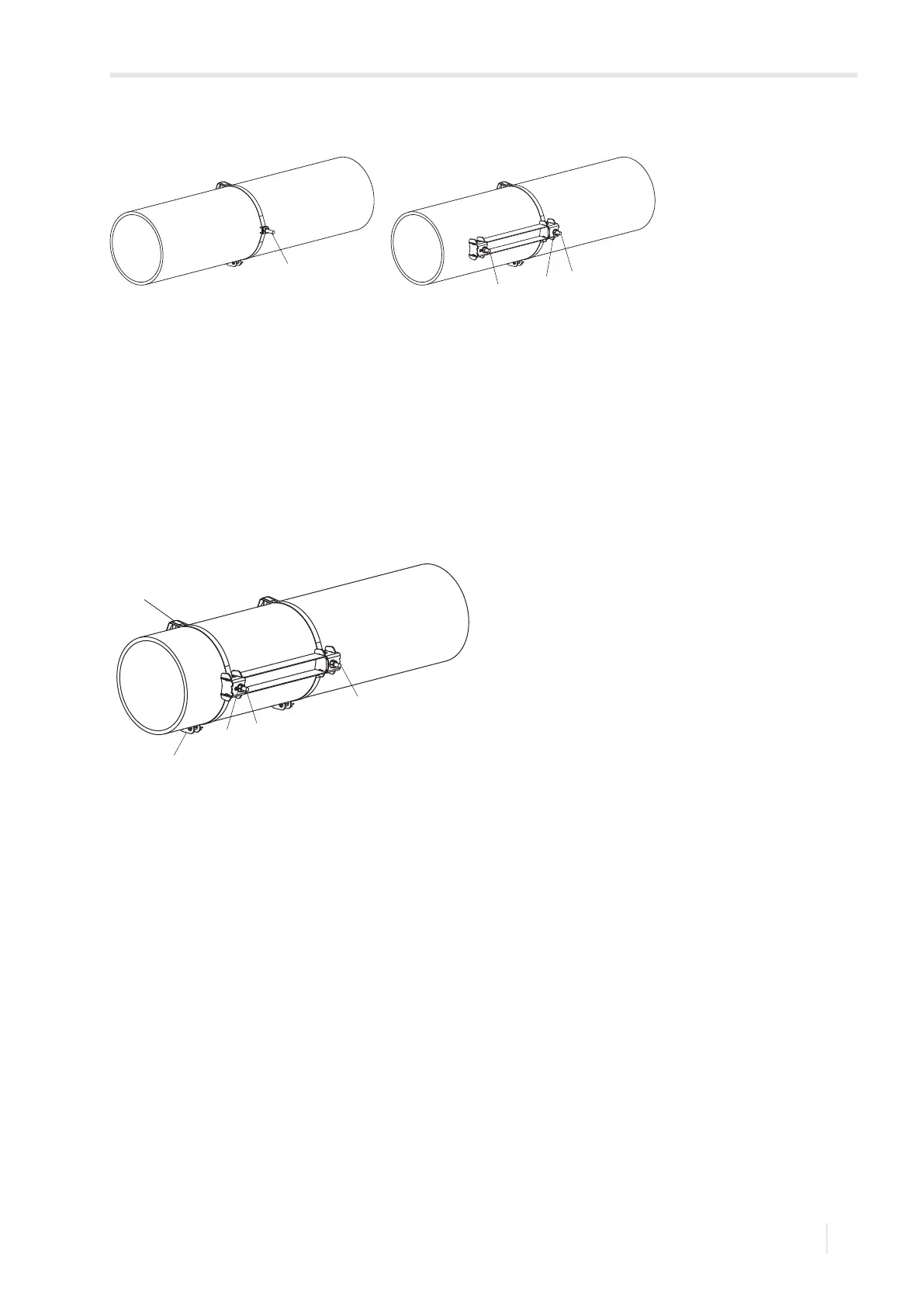

Fig. 6.21: Rail, mounted on one side of the pipe
1 tension strap clamp
2 tension strap clamp
3 nut
Fig. 6.22: Rail on the pipe
1 tension strap clamp
2 tension strap clamp
3 metal spring
4 nut
5 clasp
2
1
3
1
3
4
2
5
1
