Flexim FLUXUS F501 User Manual

6 Installation
FLUXUS F501 6.2 Transducers
41
UMFLUXUS_F501V1-3EN, 2020-06-30
6.2.2.4 Mounting with Variofix C

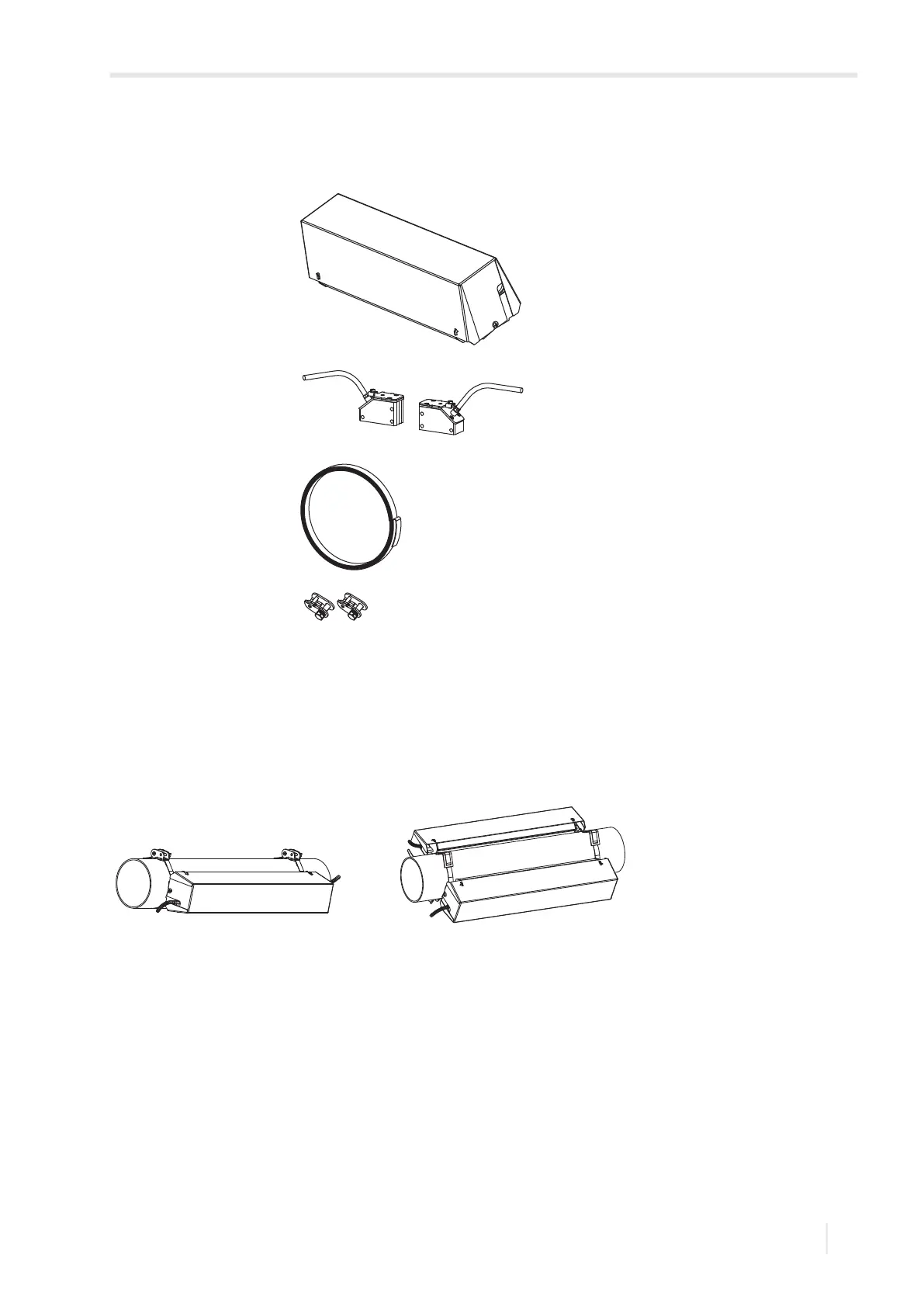

Scope of delivery
Mounting
When measuring in reflection arrangement, 1 transducer mounting fixture is mounted laterally on the pipe, see Fig. 6.31.
When measuring in diagonal arrangement, 2 transducer mounting fixtures are mounted on opposite sides of the pipe, see
Fig. 6.32.
In the following, the installation of 1 transducer mounting fixture in reflection arrangement is described.
Overview of the mounting steps
• step 1
dismounting of the transducer mounting fixture Variofix C
• step 2
mounting the rail
• step 3
installation of the transducers in the transducer mounting fixture Variofix C
1 × Variofix C
1 × transducer pair
1 × tension strap coil
2 × ratchet clasp
Fig. 6.31: Transducer mounting fixture
Variofix C (reflection arrangement)
Fig. 6.32: Transducer mounting fixture
Variofix C (diagonal arrangement)
