6 Installation
FLUXUS F501 6.2 Transducers
43
UMFLUXUS_F501V1-3EN, 2020-06-30
• Insert approx. 100 mm of the tension strap into one of the slots of the tension strap clamp and bend it, see Fig. 6.35.
• If necessary, insert the long end of the tension strap into the metal spring, see Fig. 6.36. The metal spring does not have
to be mounted on:
– steel pipes
– pipes with an outer pipe diameter < 80 mm
– pipes that are not subjected to significant temperature fluctuations
• Place the tension strap around the pipe, see Fig. 6.37.
• Position the tension strap clamp and metal spring (if necessary) on the pipe, see Fig. 6.37:
– on a horizontal pipe, mount the tension strap clamp on the side of the pipe, if possible
– mount the metal spring (if necessary) opposite to the tension strap clamp
• Insert the long end of the tension strap into the second slot of the tension strap clamp, see Fig. 6.37 a.
• Tighten the tension strap and bend it.
• Bend both ends of the tension strap, see Fig. 6.37 b.
• Repeat the steps for the second tension strap. Position the tension strap at the distance s, see Fig. 6.37.
• Put the rail on the tension strap clamps.
• Use the screws to fix the rail to the tension strap clamps, see Fig. 6.38.
• Tighten the screws.

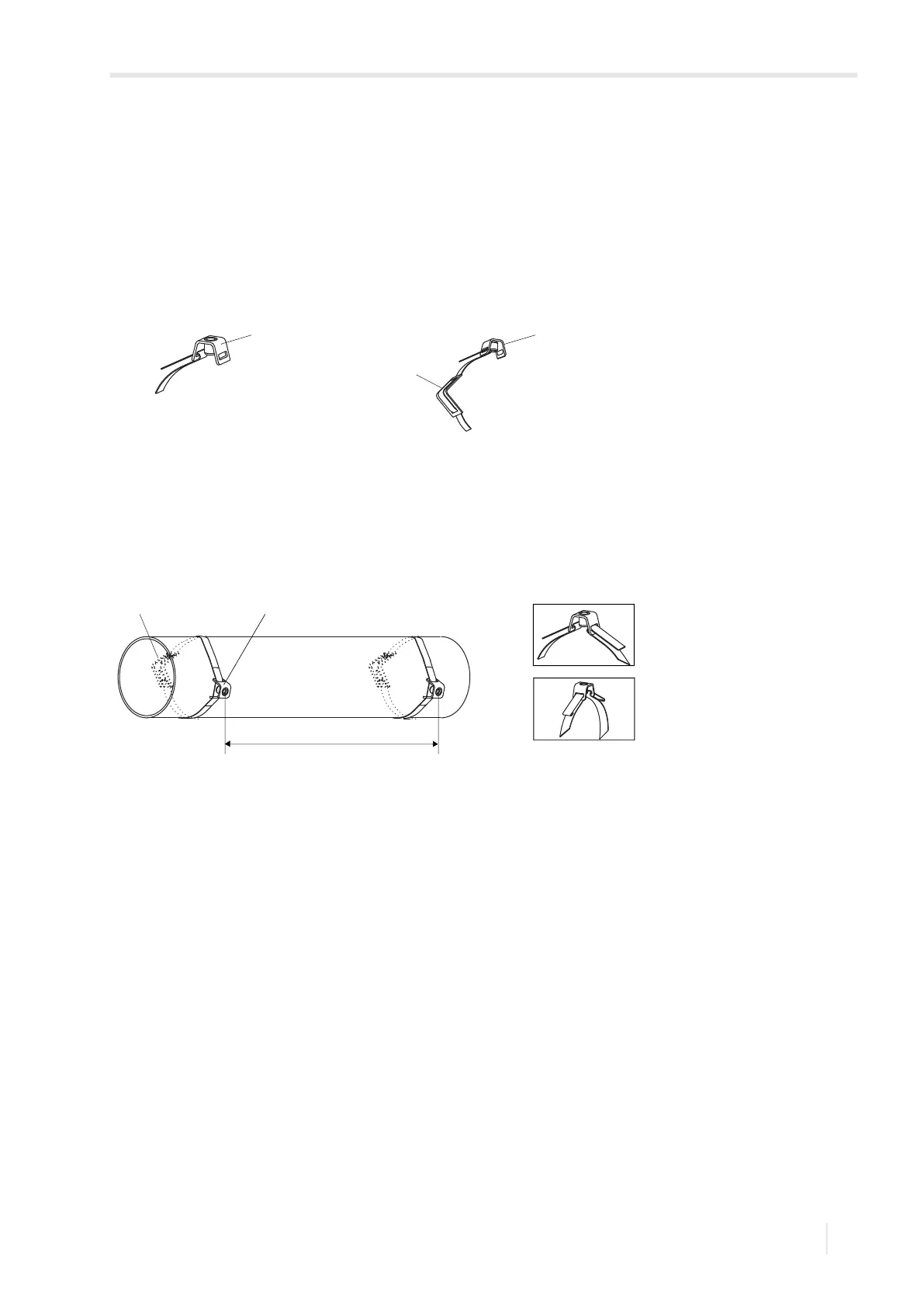

Fig. 6.35: Tension strap with clamp Fig. 6.36: Tension strap with metal spring and clamp
1 – tension strap clamp 1 – tension strap clamp
2 – metal spring
Fig. 6.37: Tension strap with tension strap clap and metal spring on the pipe
1 – metal spring
2 – tension strap clamp
s = length of the rail - 33 mm
1 1
2
1 2 a
b
s
