6 Installation
6.2 Transducers FLUXUS F501
2020-06-30, UMFLUXUS_F501V1-3EN
44
Mounting the rail with ratchet clasp
• Cut the tension strap to length (pipe circumference + at least 120 mm).
• Insert approx. 100 mm of the tension strap into part (1) and (2) of the ratchet clasp, see Fig. 6.39 a.
• Bend the tension strap.
• Insert the tension strap into part (1) of the ratchet clasp, see Fig. 6.39 b.
• Tighten the tension strap.
• Insert the long end of the tension strap into the tension strap clamp and the metal spring, see Fig. 6.40. The metal spring
does not have to be mounted on:
– steel pipes
– pipes with an outer pipe diameter < 80 mm
– pipes that are not subjected to significant temperature fluctuations
• Place the tension strap around the pipe, see Fig. 6.41.

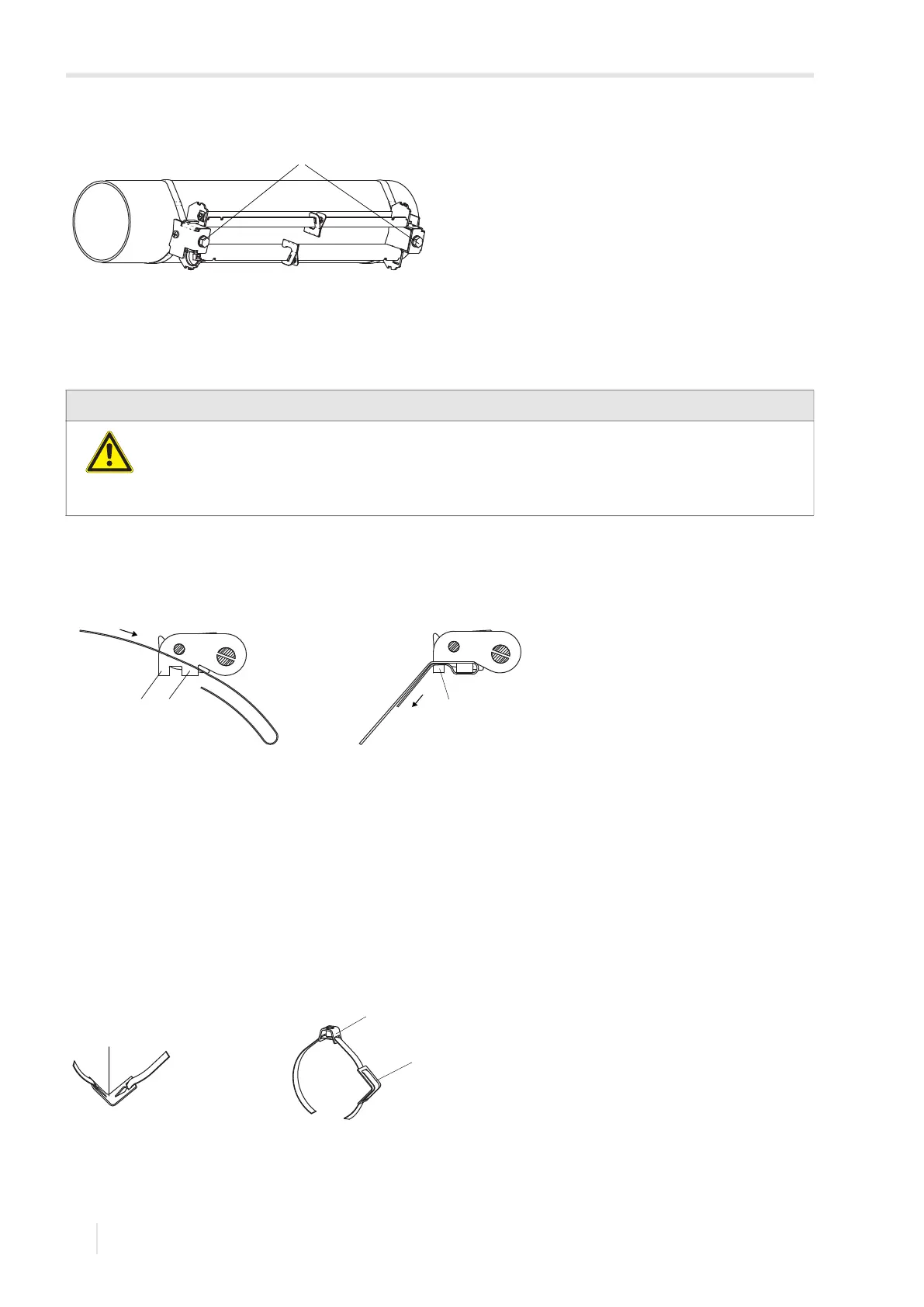

Fig. 6.38: Rail on the pipe
1 – screws
Caution!
The edge of the tension strap is very sharp.
Risk of injury!
→ Debur sharp edges.
→ Wear the required personal protective equipment. Observe the applicable rules.
Fig. 6.39: Ratchet clasp with tension strap
Fig. 6.40: Tension strap with metal spring and clamp
1 – metal spring
2 – tension strap clamp
1
a b
1 2 1
1
1
2
