6 Installation
FLUXUS F501 6.2 Transducers
45
UMFLUXUS_F501V1-3EN, 2020-06-30
• Position the ratchet clasp, tension strap clamp and metal spring (if necessary) on the pipe:
– on a horizontal pipe, mount the tension strap clamp on the side of the pipe, if possible
– mount the metal spring (if necessary) opposite to the tension strap clamp
• Insert the long end of the tension strap into the second slot of the tension strap screw, see Fig. 6.42.
• Tighten the tension strap.
• Cut off the protruding tension strap, see Fig. 6.42.
• Tighten the screw of the ratchet clasp.
• Repeat the steps for the second tension strap.
• Put the rail on the tension strap clamps, see Fig. 6.43.
• Fix the rail to the tension strap clamps with the screws.
• Tighten the screws.
Notice!
In order to release the screw and the tension strap, press the lever down, see Fig. 6.42.

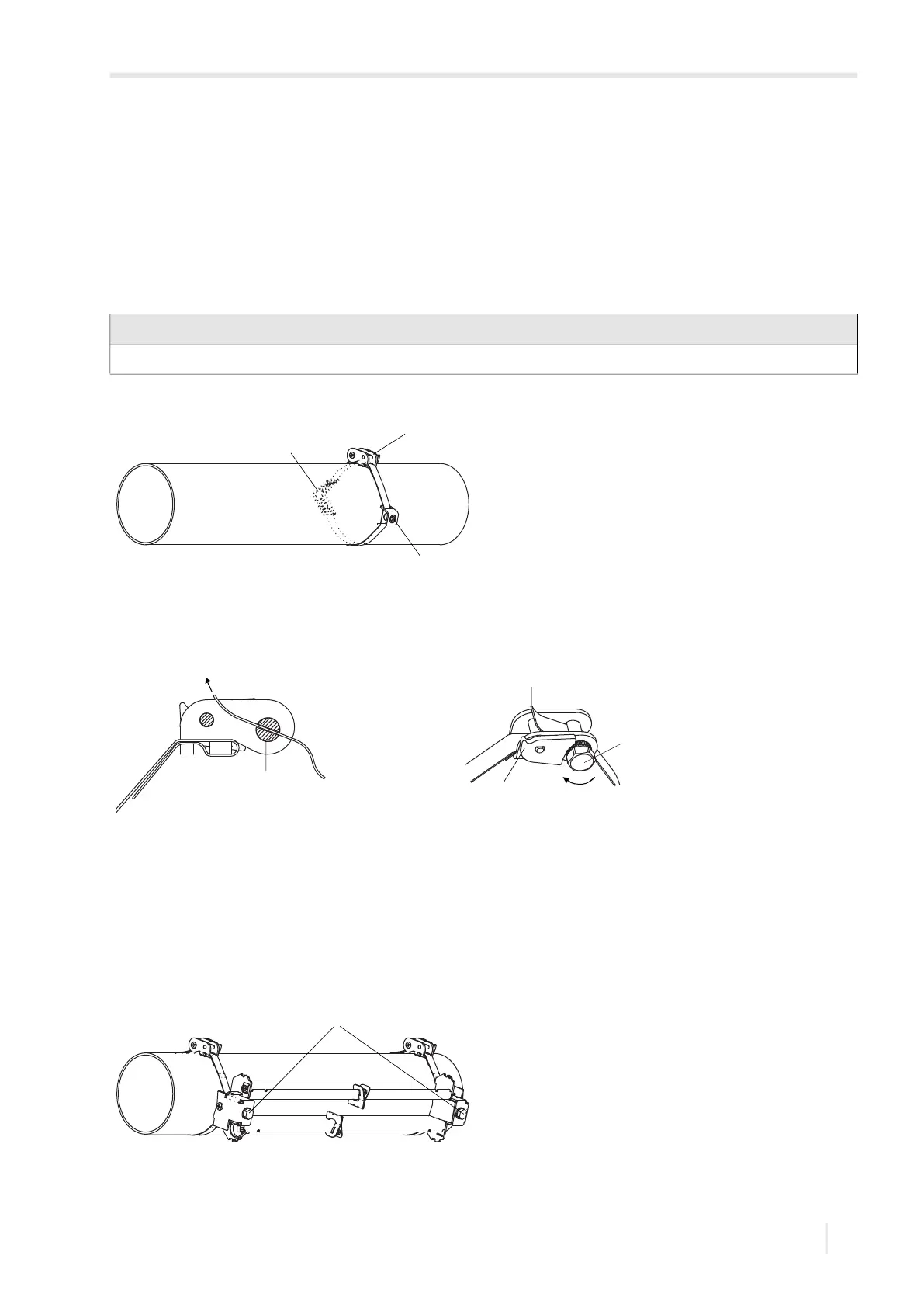

Fig. 6.41: Ratchet clasp with tension strap, tension strap clamp and metal spring on the pipe
1 – metal spring
2 – ratchet clasp
3 – tension strap clamp
Fig. 6.42: Ratchet clasp with tension strap
1 – sense of rotation
2 – edge
3 – lever
4 – clasp screw with slot
Fig. 6.43: Rail on the pipe
1 – screws
2
1
3
1
2
4
3
4
1
