FLUXUS WD100, WD200 5 Selection of the Measuring Point
18 UMFLUXUS_F5WDV1-1EN, 2016-04-08

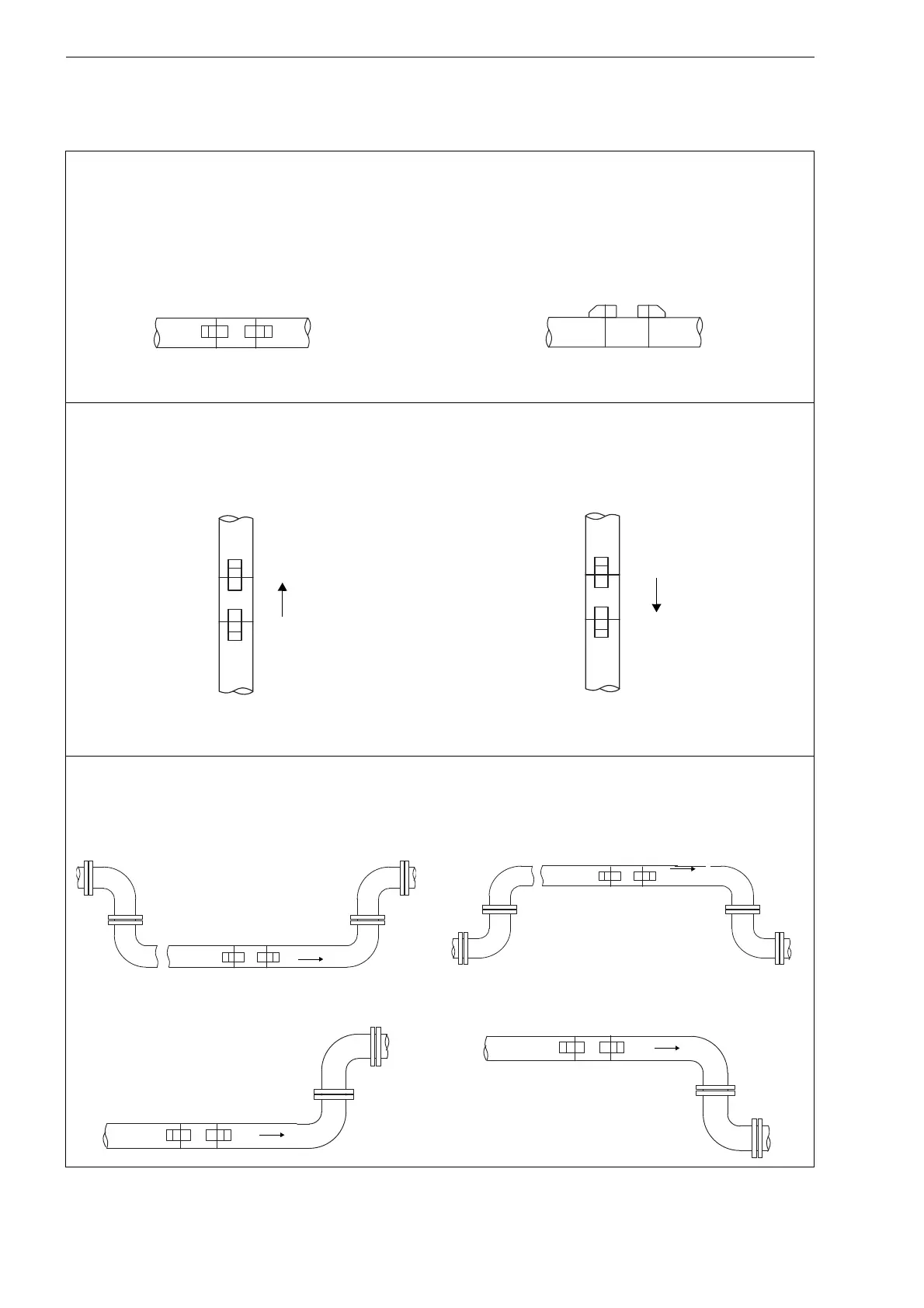

Tab. 5.1: Recommended transducer position
Horizontal pipe
Select a measuring point where the transducers can be mounted on the side of the pipe, allowing the sound waves to
propagate in the pipe horizontally. Thus, solids at the bottom or gas bubbles in the pipe's upper part from will not influ-
ence the propagation of the signal.
correct: disadvantageous:
Vertical pipe
Select the measuring point at a pipe location where the fluid flows upward. The pipe has to be completely filled.
correct: disadvantageous:
Free inlet or outlet pipe section:
Select the measuring point at a pipe location where the pipe cannot run empty.
correct: disadvantageous:
correct: disadvantageous:
