7 Installation of the Transducers FLUXUS WD100, WD200
UMFLUXUS_F5WDV1-1EN, 2016-04-08 39
The cover can be removed from the mounted transducer mounting fixture as follows:
• Use a lever tool to remove the cover.
• Insert the lever tool in one of the four openings of the cover (see Fig. 7.20).
• Press the lever tool against the fixture.
• Bend the cover outwards and release it from the anchoring.
• Repeat the steps for the other three openings.
• Remove the cover from the rail.

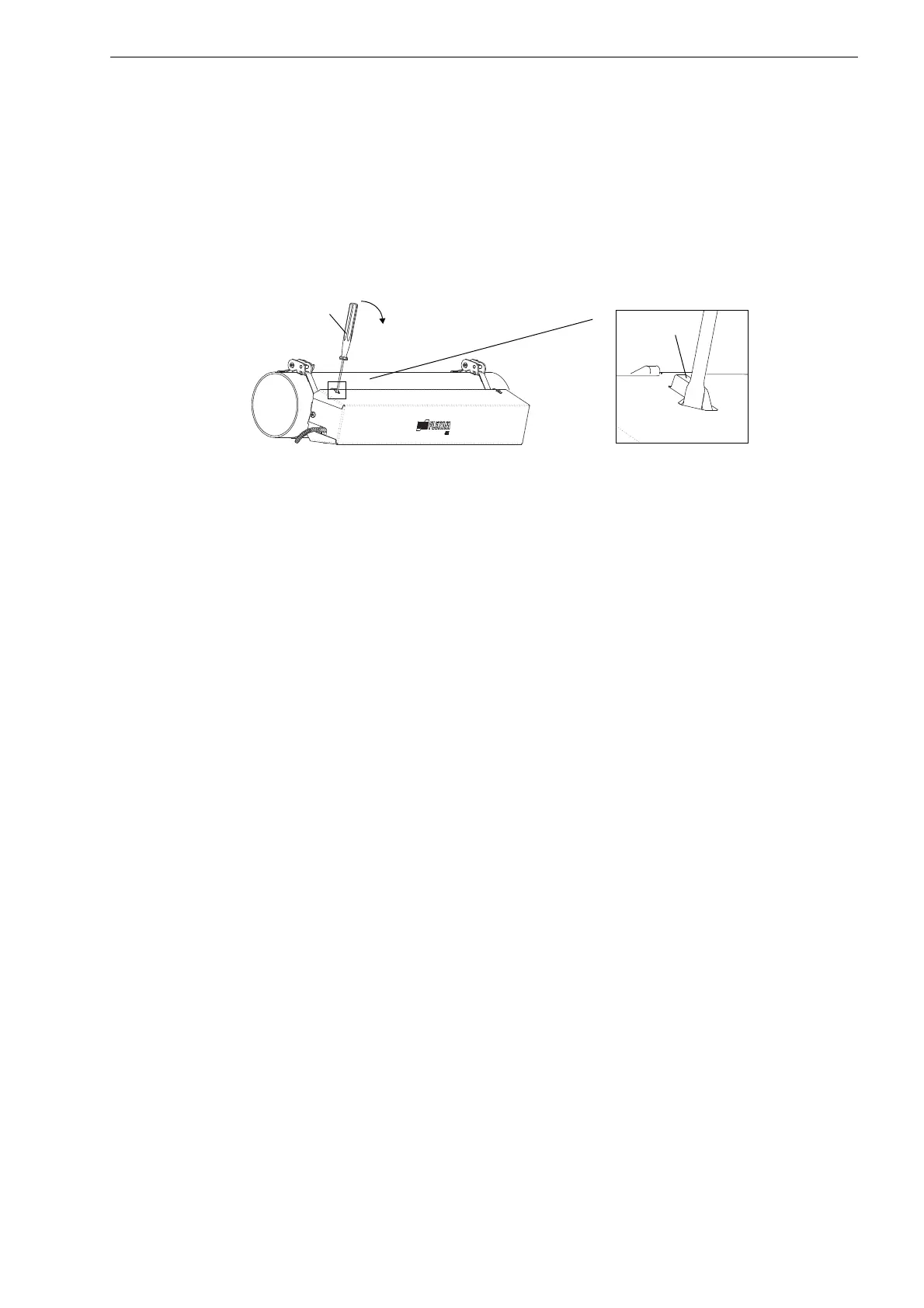

Fig. 7.20: Removal of the cover
