5 Selection of the Measuring Point PIOX S70x
UMPIOX_S7V4-6-3EN, 2018-10-10 23
disturbance source: T piece
supply line: l ≥ 50 D return line: l ≥ 10 D
disturbance source: diffuser
supply line: l ≥ 30 D return line: l ≥ 5 D
disturbance source: valve
supply line: l ≥ 40 D return line: l ≥ 10 D
disturbance source: reducer
supply line: l ≥ 10 D return line: l ≥ 5 D
disturbance source: pump
supply line: l ≥ 50 D

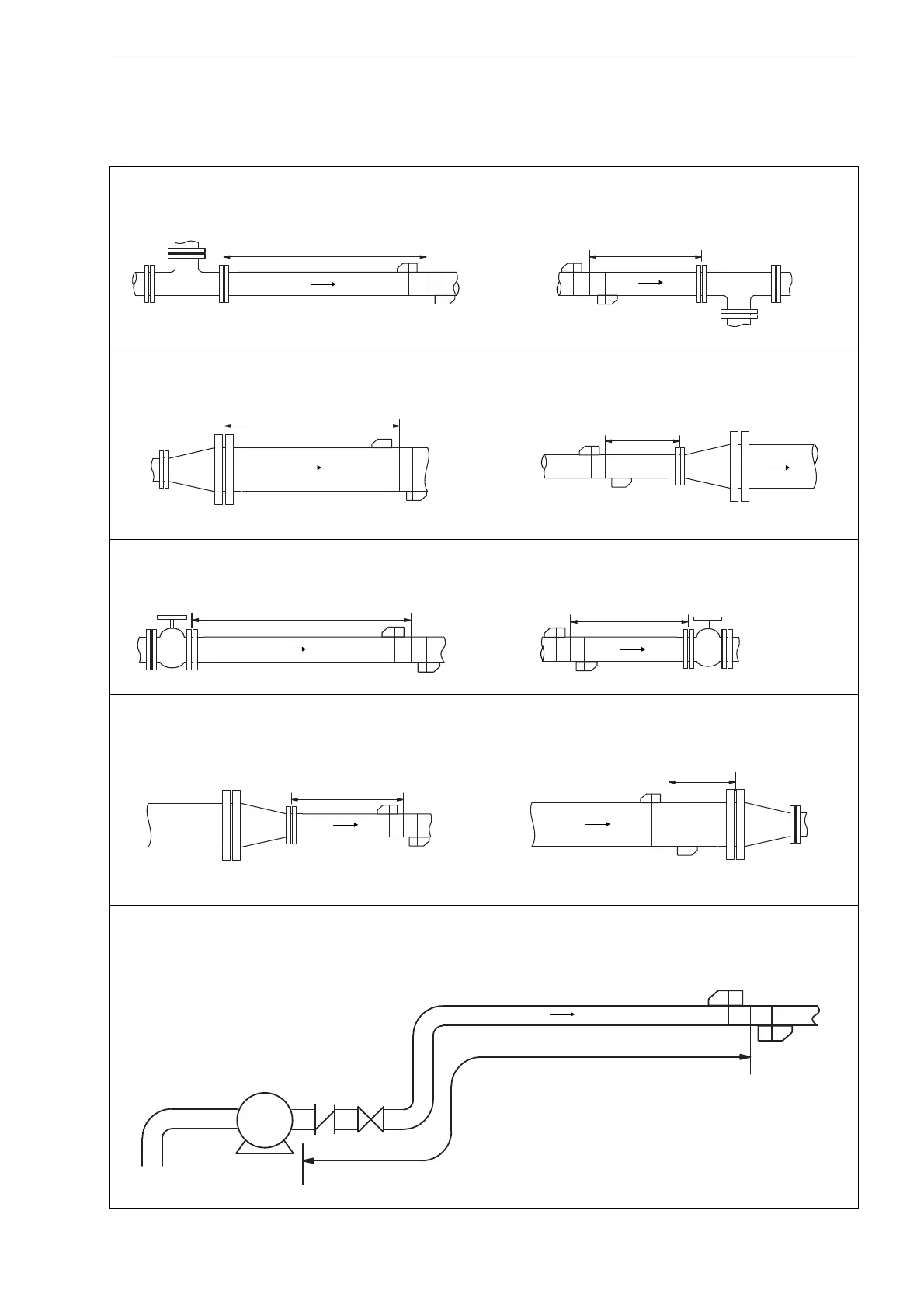

Tab. 5.2: Recommended distance from disturbance sources
D = nominal pipe diameter at the measuring point, l = recommended distance
