6 Installation PIOX S70x

UMPIOX_S7V4-6-3EN, 2018-10-10 31

6.4.3.1 Disassembly of Variofix L

• Disassemble the transducer mounting fixture Variofix L (see Fig. 6.12).

6.4.3.2 Fixing the Clasps to the Tension Straps

Select the installation instructions that correspond to the supplied clasp:

Band clamp clasp

The clasp is fixed to the tension strap (see Fig. 6.13).

Quick release clasp

The clasp is fixed to the tension strap (see Fig. 6.14).

• Cut the tension straps to length (pipe circumference + at least 120 mm).

Ratchet clasp

• Cut the tension strap to length (pipe circumference + at least 120 mm).

• Insert approx. 100 mm of the tension strap into parts 1 and 2 of the clasp (see Fig. 6.15 a).

• Bend the tension strap.

• Insert the tension strap into part (1) of the ratchet clasp (see Fig. 6.15 b).

• Tighten the tension strap.

• Repeat the steps for the second tension strap.

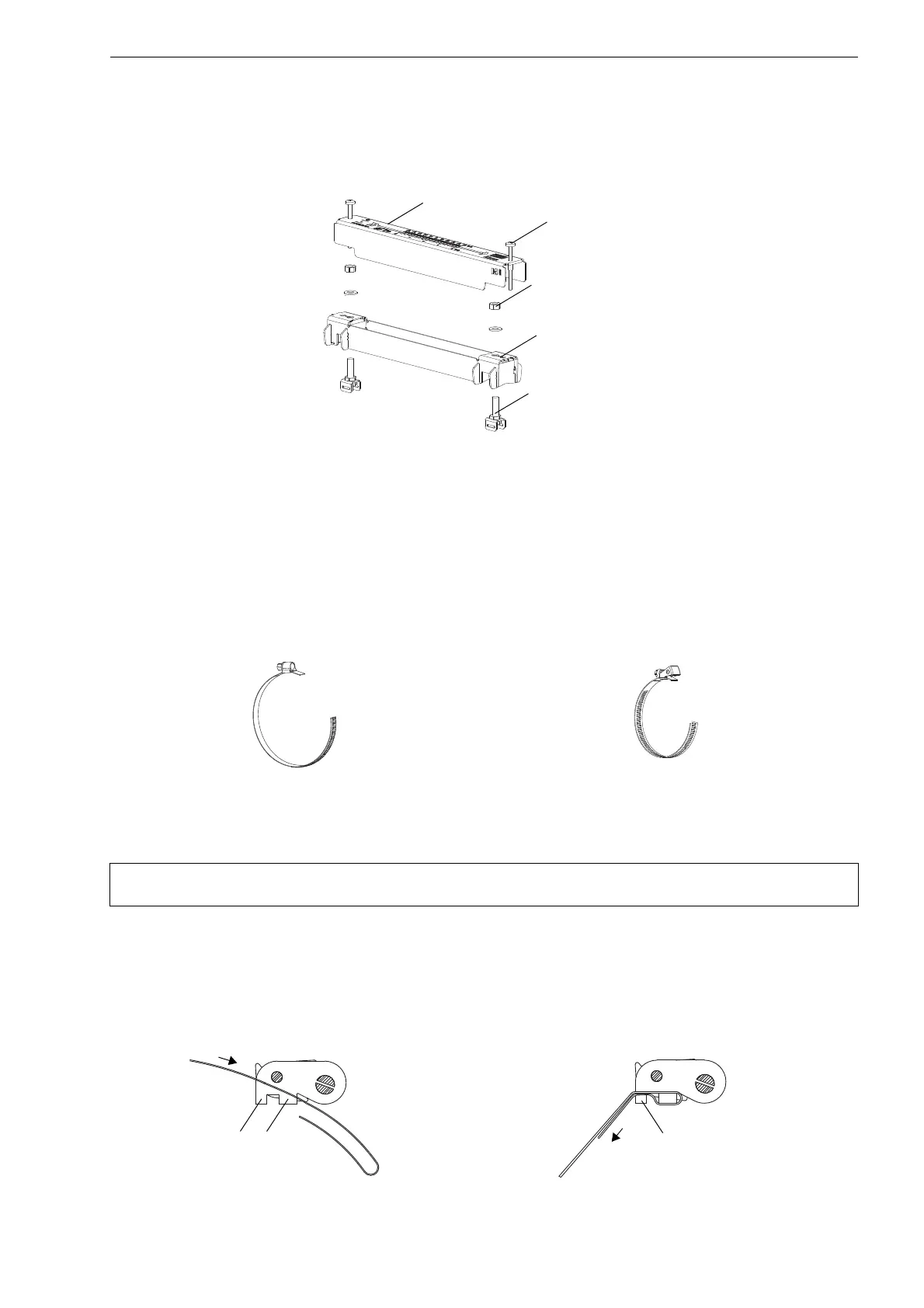

Fig. 6.12: Disassembly of Variofix L

Fig. 6.13: Band clamp clasp with tension strap Fig. 6.14: Quick release clasp with tension strap

Attention! The edge of the tension strap is very sharp, leading to risk of injury. Remove the burr of the sharp

edge.

a b

Fig. 6.15: Ratchet clasp with tension strap

cover

rail

tension strap clamp

nut

screw

1 2
