PIOX S70x 6 Installation
40 UMPIOX_S7V4-6-3EN, 2018-10-10
Position the metal spring (if mounted) and the tension strap clamp (see Fig. 6.43):
On a horizontal pipe, mount the tension strap clamp on the side of the pipe, if possible.
Mount the metal spring (if necessary) on the opposite side of the tension strap clamp.
Insert the long end of the tension strap into the second slot of the tension strap clamp (see Fig. 6.43 a).
Tighten the tension strap and bend it.
Bend both ends of the tension strap (see Fig. 6.43 b).
Repeat the steps for the second tension strap. Position the tension strap at the distance s (see Fig. 6.43).
Put the rail on the tension strap clamps.
Use the screws to fix the rail to the tension strap clamps (see Fig. 6.44).
Tighten the screws.
Installation of the rail with the ratchet clasp
Cut the tension strap to length (pipe circumference + at least 120 mm).
Insert approx. 100 mm of the tension strap into parts 1 and 2 of the ratchet clasp (see Fig. 6.45 a).

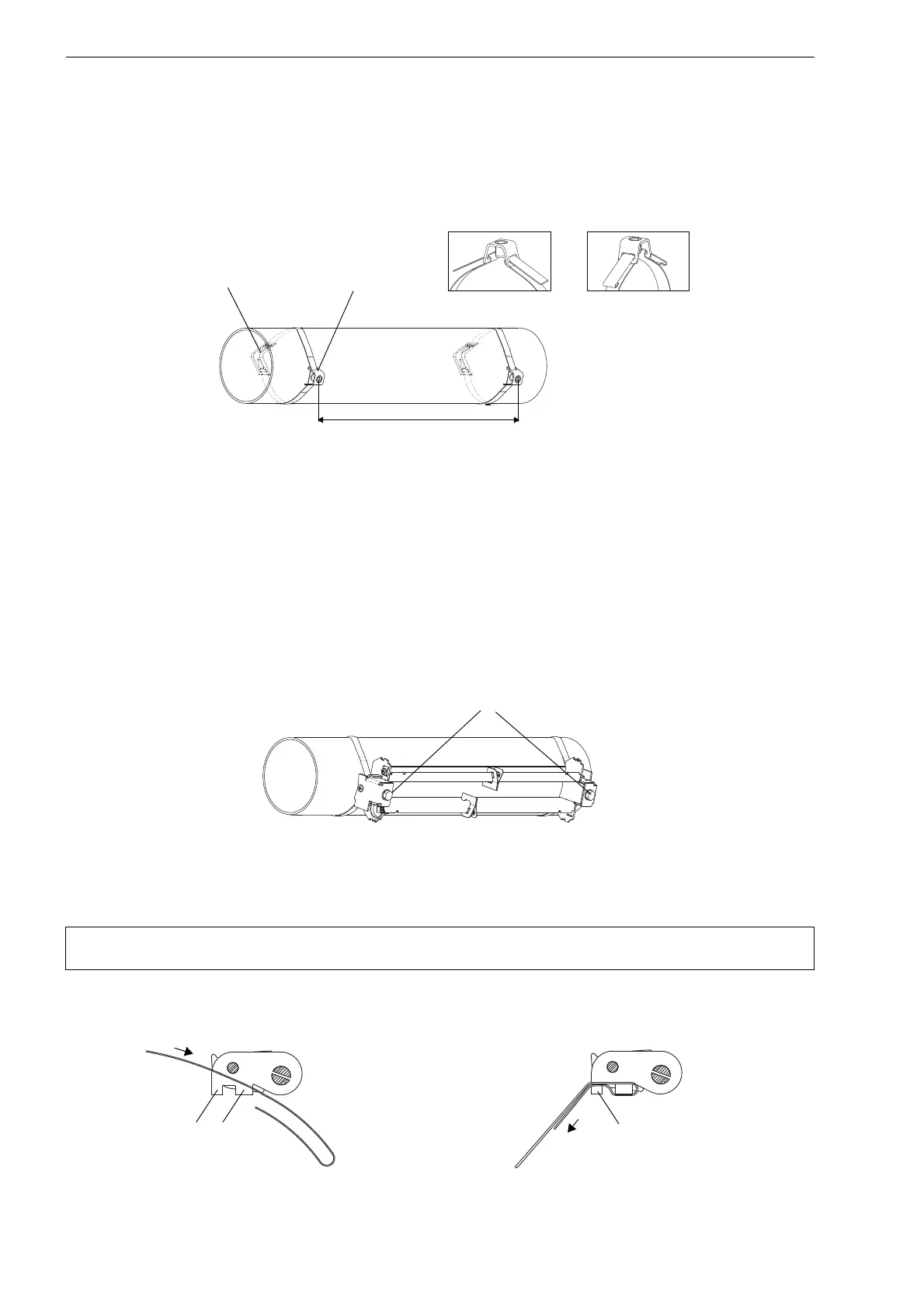

Fig. 6.43: Tension strap with the metal spring and the tension strap clamp on the pipe
Fig. 6.44: Rail on the pipe
Note! The edge of the tension strap is very sharp, leading to risk of injury. Remove the burr of the sharp
edge.
a b
Fig. 6.45: Ratchet clasp with tension strap
s
ab
tension
strap
metal spring
s = length of the rail - 33 mm
screws
1 2
1
