FlexRadio Systems Tuner Genius XL User Manual


Page32of72
Copyright 2021 FlexRadio. All Rights Reserved. 7 June 2021(FW:0.9.12, Utility: 0.9.12)
6.3.2.3 ICOM
ThetunerrequiresbothbanddataandaPTTlinefromIcomradios.BanddataisavailableusingRS‐232(CAT)or
CI‐Vdependingonthemodel.
PTT

Connectanappropriatecablebetweentheradio'sPTToutputandthePTTInputcorrespondingtothetuner
Port(AorB).
SomemodelsmayrequireacustomcabletoaccessradioPTTfromanaccessoryconnector.

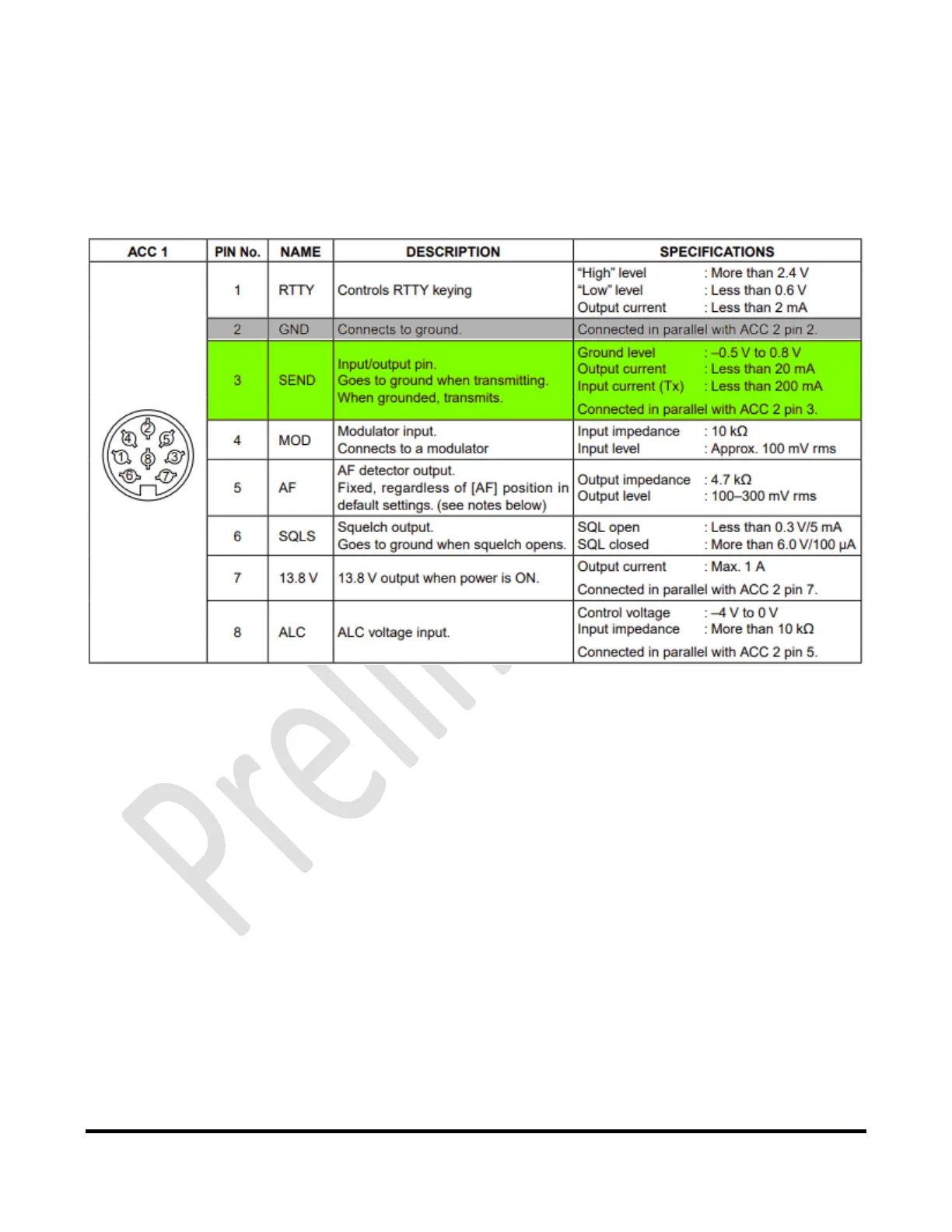

Createacustomcableconnectingpins2(GND)and3(SEND)fromthe8‐pinDINACC1jackandastandardRCA
plugfromthePTT‐INRCAjack.Pin3connectstothecenter
conductoroftheRCAplug,andpin2totheouter
conductor.
