Alternatively,youcanuseaBCDconnectionbetweentheeight‐pinDIN(BandData)connectorontheYaesu
transceivertotheBandDataAorBandDataB(DB15)connectoronthetuner.Therestrictiondescribedin
section6.3.1.4,BandDataandFrequencyMeasurementbasedrestrictions,appliesinthiscase.


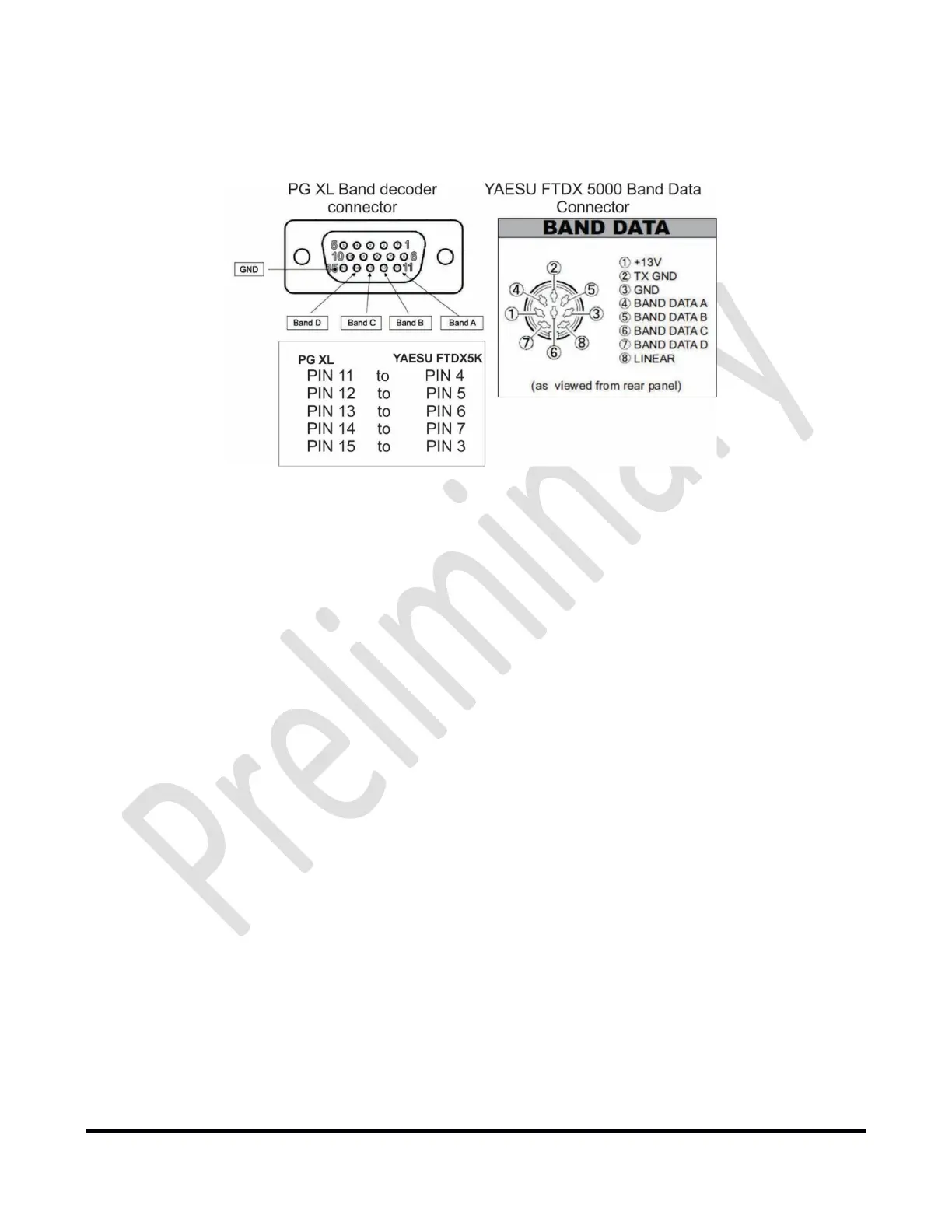

BCDconnectionsuseacustomcableconfiguredasshowninthisdiagram.
i–OptocouplersprotectallserialanddigitalinputsoroutputsontheTunerGeniusXL

