6.3.2.4 Yaesu
ThetunerrequiresbothbanddataandaPTTlinefromYaesuradios.BanddataisavailableusingeithertheCAT
protocolviaRS‐232orBCDbanddatafromaDINconnector.
PTT
Connectanappropriatecablebetweentheradio'sPTToutputandthePTTInputcorrespondingtothetuner

Port(AorB).SomemodelsmayrequireacustomcabletoaccessradioPTTfromanaccessoryconnector.
BandData(CAT)


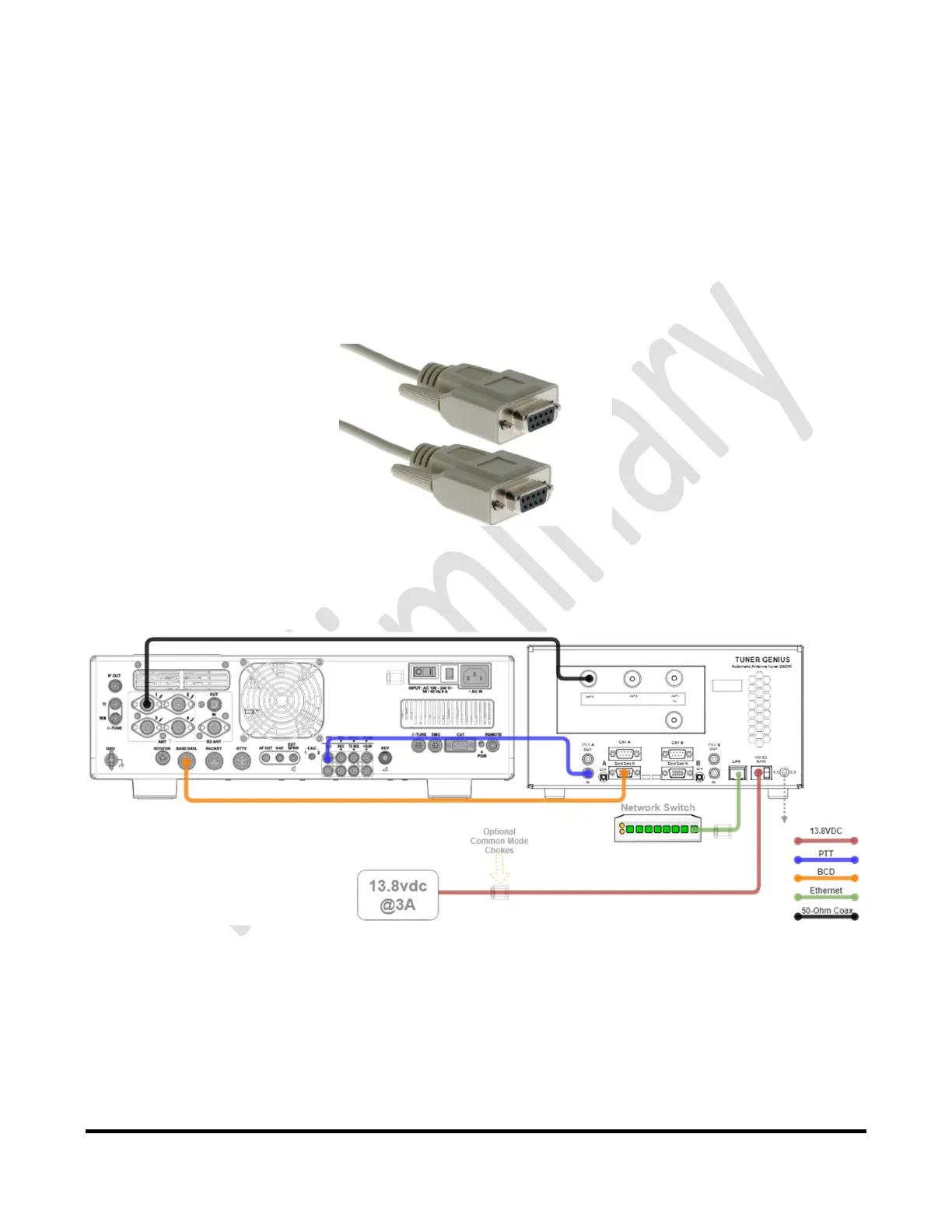

RS‐232(CAT)connectionsuseastraight‐throughfemale‐to‐femaleDB9cable.
YoucanconnecteithertheCATInputAorCATInputBconnectoronyour
tunertotheCATconnectoronthe
Yaesutransceiverusingafemale‐to‐femaleDB9cable.

