6.6 Electrical systems
All wiring and connections on the trailer are ready for operation and fully assembled.
Do not tap in directly to the ignition switch (risk of fire or damage to the electrical system).
Lighting connection
Procedure:
Power is supplied by the towing vehicle via plug
connection(s).
Plug connection for lighting (7-pin connector,
ISO 1724)
Control current via (12 V) connector.

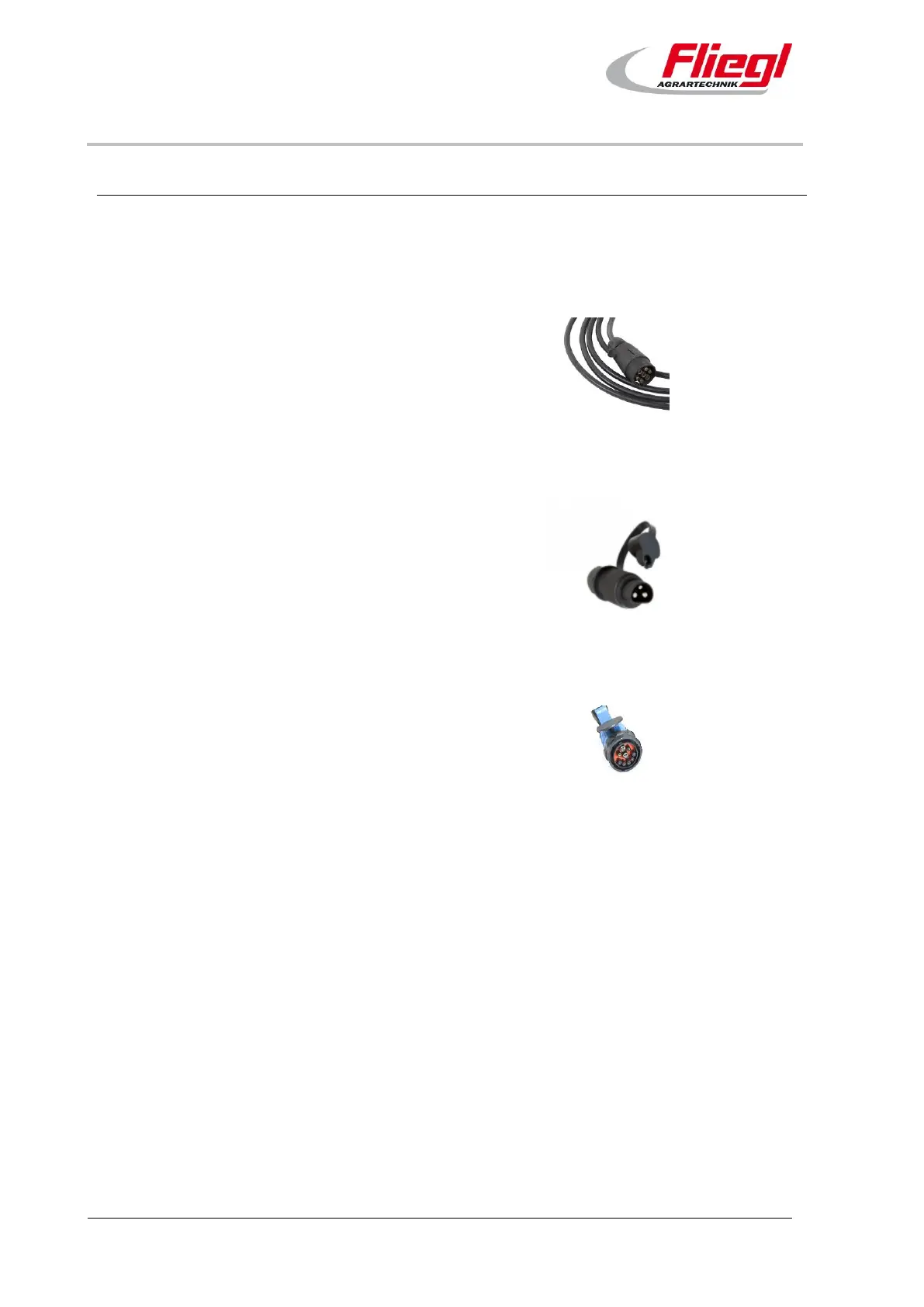

Fig. 38: 7-pin connector
Control panel connection (optional)
Procedure:
Power is supplied by the towing vehicle via plug
connection(s).
Plug connection for control panel (3-pin
connector, DIN 9680)
Control current via (12 V) connector.
Fig. 39: 3-pin connector
ISOBUS control connection (optional)
Procedure:
Connect the 9-pin ISO plug (ISO 11783) to the
ISOBUS socket on the tractor
Fig. 40: ISOBUS plug connection
