6.8 Converting the discharge tube retainer

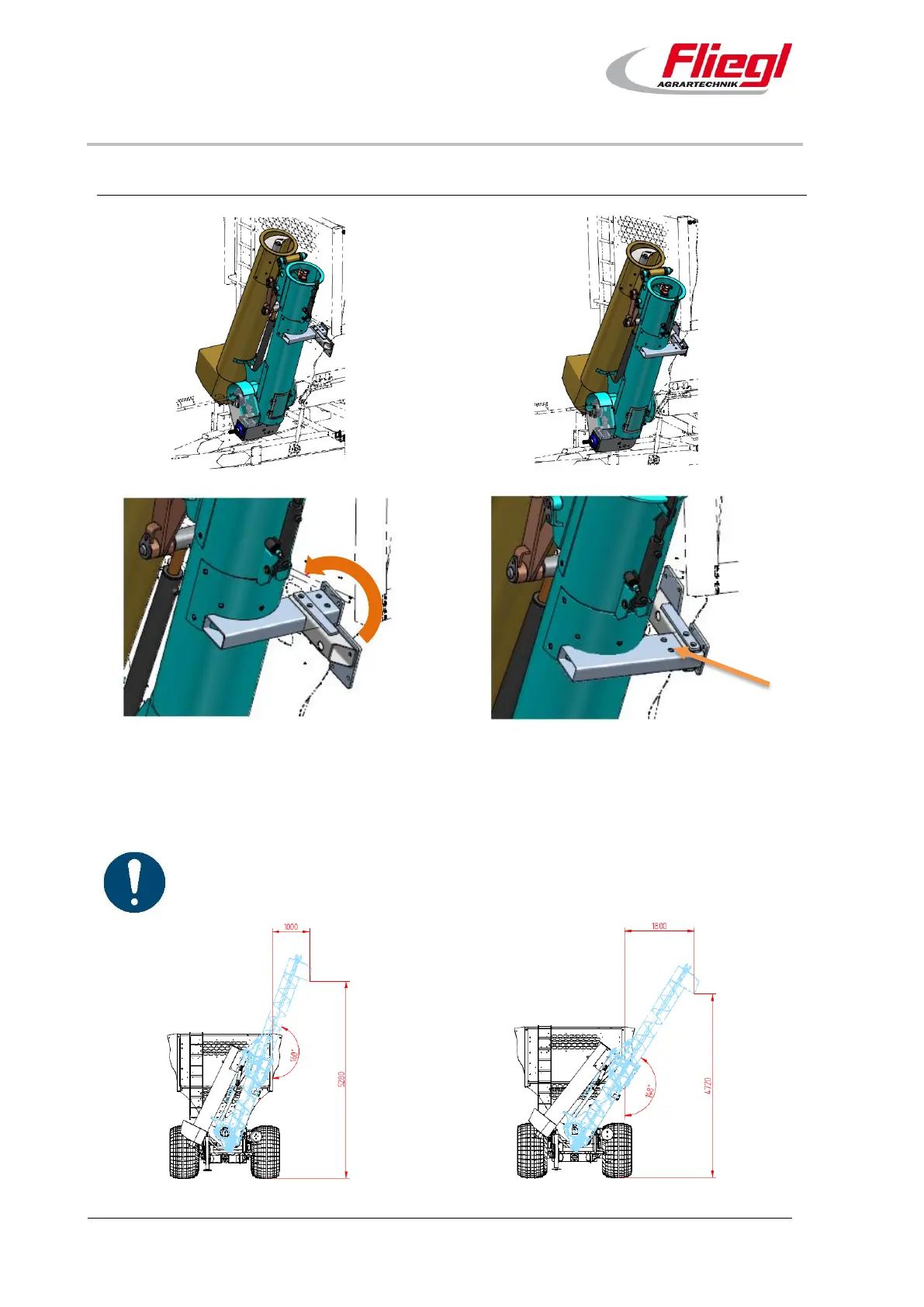

Fig. 43: Retracted (1)
Fig. 44: Extended (2)
Fig. 45: Retainer position 1
Fig. 46: Retainer position 2
The discharge tube is delivered in position 1.
This ensures a lower transport width. Before start-up, the operator must change the position. To set
position 2, the retainer must be detached and rotated by 180° before being screwed back on again.
Where possible, have the conversion work performed by a specialist workshop!
Fig. 47: Position 1
Fig. 48: Position 2
Retainer
