12. Electrics

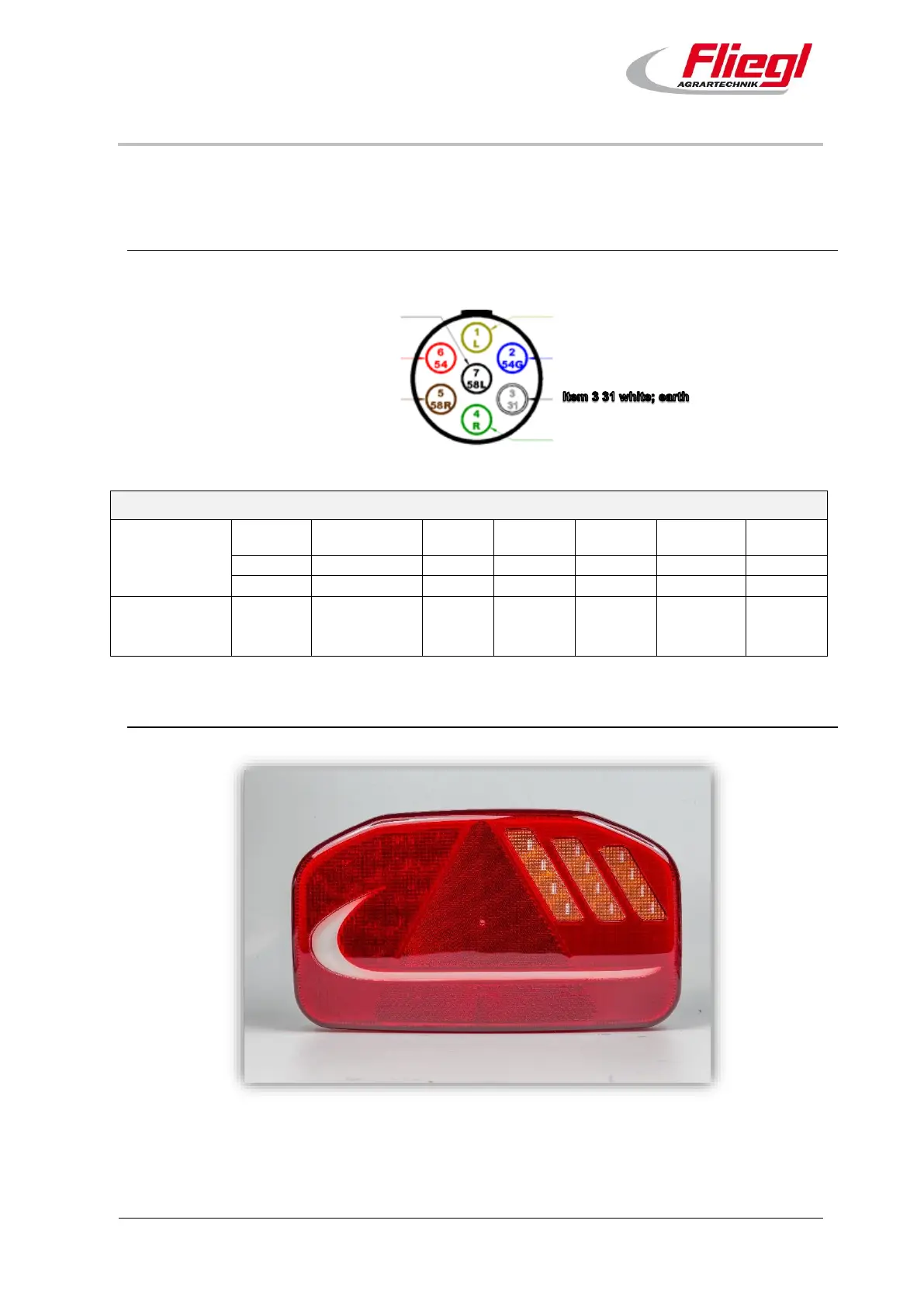

12.1 Contact assignment plan
According to DIN/ISO 1724 (12 V)
Contact assignment plan – 12 V
Assignment plan
Contact
assignment
plan
Left
indicator
Rear fog light
Earth*
Right
indicator
Right
rear light
Brake light
Left rear
light
1
2
3
4
5
6
7
L
54g
31
R
58R
54
58L
7-pin
connector
ISO/DIN 1724
Yellow
Blue
White
Green
Brown
Red
Black
* The three earth wires must not be electrically connected to the trailer.
12.2 Rear light model
Fig. 71: Rear light
Item 1 L yellow; left indicator
Item 2 54G blue; rear fog light
Item 4 R green; right indicator
Item 5 58R brown; right rear light
Item 6 54 red; brake light
Item 7 58L black; left rear light
