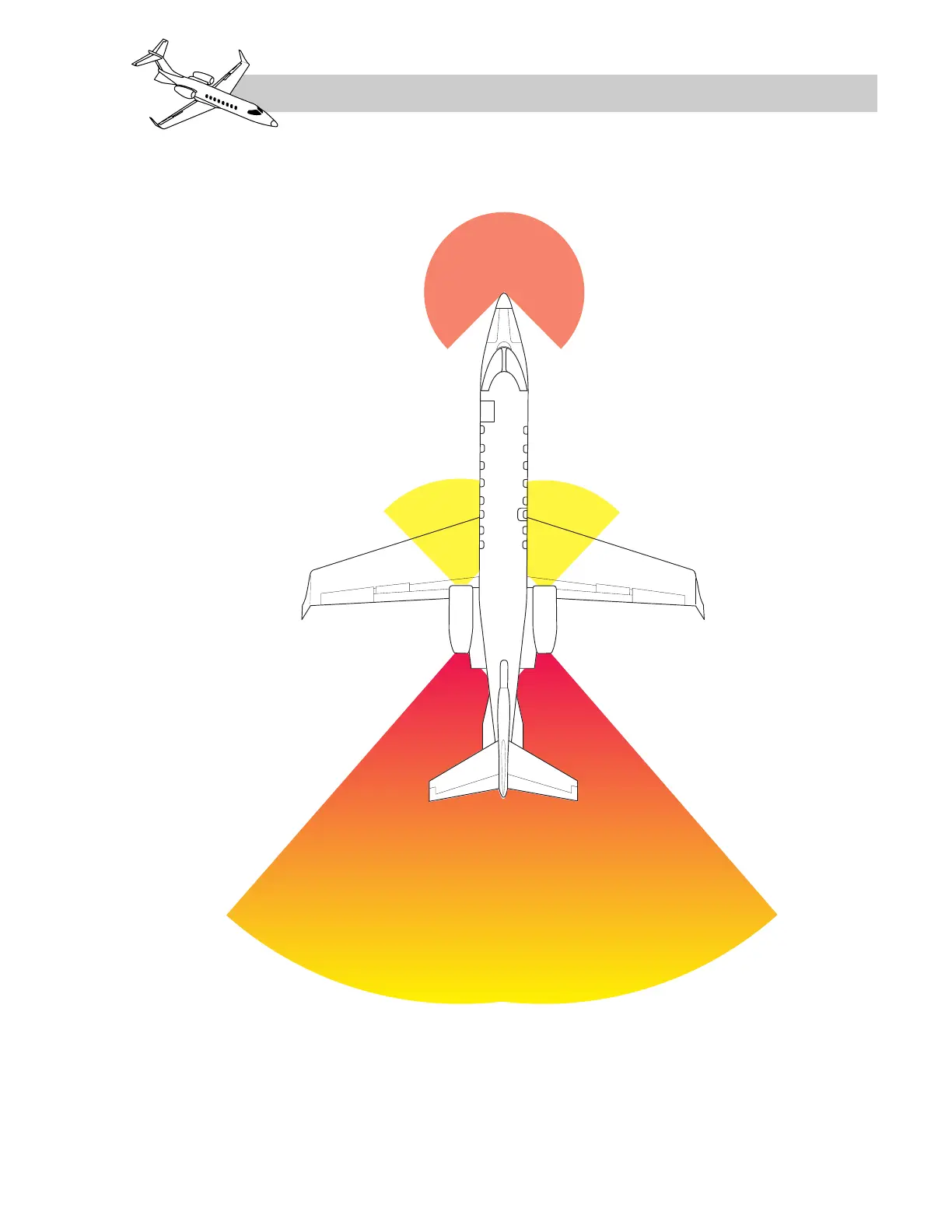

Figure 1-4. Danger Areas

ENGINE INTAKE

12 FEET (4 M)

WEATHER RADAR

9 FEET (2.7 M)

ENGINE EXHAUST

750° F (399° C)

100° F

(38° C)

40 FEET (12 M)

NOTE: EXHAUST DANGER AREA

SHOWN FOR IDLE RPM. VALUES

APPROXIMATELY DOUBLE FOR

TAKEOFF RPM.

NOTE:

THE ANTENNA SCAN AREA

MUST BE FREE OF METALLIC

OBJECTS FOR A DISTANCE

OF AT LEAST 100 FEET.

REFUELING OPERATION

MUST NOT BE PERFORMED

WITHIN 100 FEET OF THE

ANTENNA SCAN AREA.
