PILOT LINE
REFUEL SHUTOFF VALVE
PRECHECK VALVE
REFUEL ADAPTER
GRAVITY TRANSFER LINE
REFUELING MANIFOLD
LEFT WING FUEL TANK
FUSELAGE FUEL TANK
VENT/EXPANSION LINE
REFUEL/DEFUEL
D
E
F
U
E
L
PWR ON
OFF
READY
OFF
F
U
E
L
S
Y
S
P
A
N
E
L
TOTAL FUEL QTY
TO
RIGHT
ENGINE
DEFUELING VALVE
PILOT VALVE
RIGHT WING
STANDBY PUMP
*
*
NOTE: On some aircraft equipped with the optional pylon lights,
the FUEL SYS switch has three positions: Up is labeled
ON/FLD LT (flood light); middle – ON; and down – OFF.

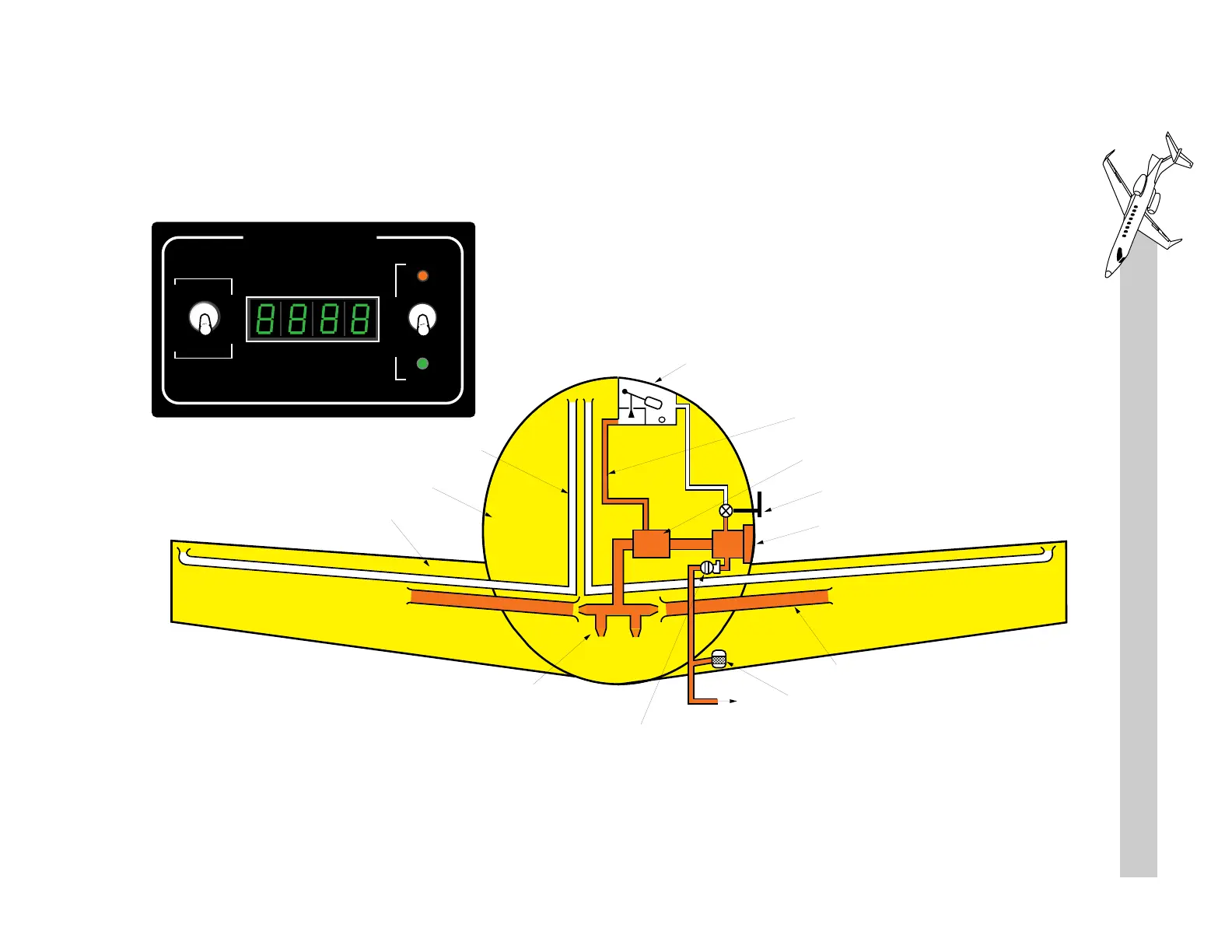

Figure 5-15. Single–Point Pressure Refueling (SPPR) Schematic
