• Exhaust
• Accessory Gearbox

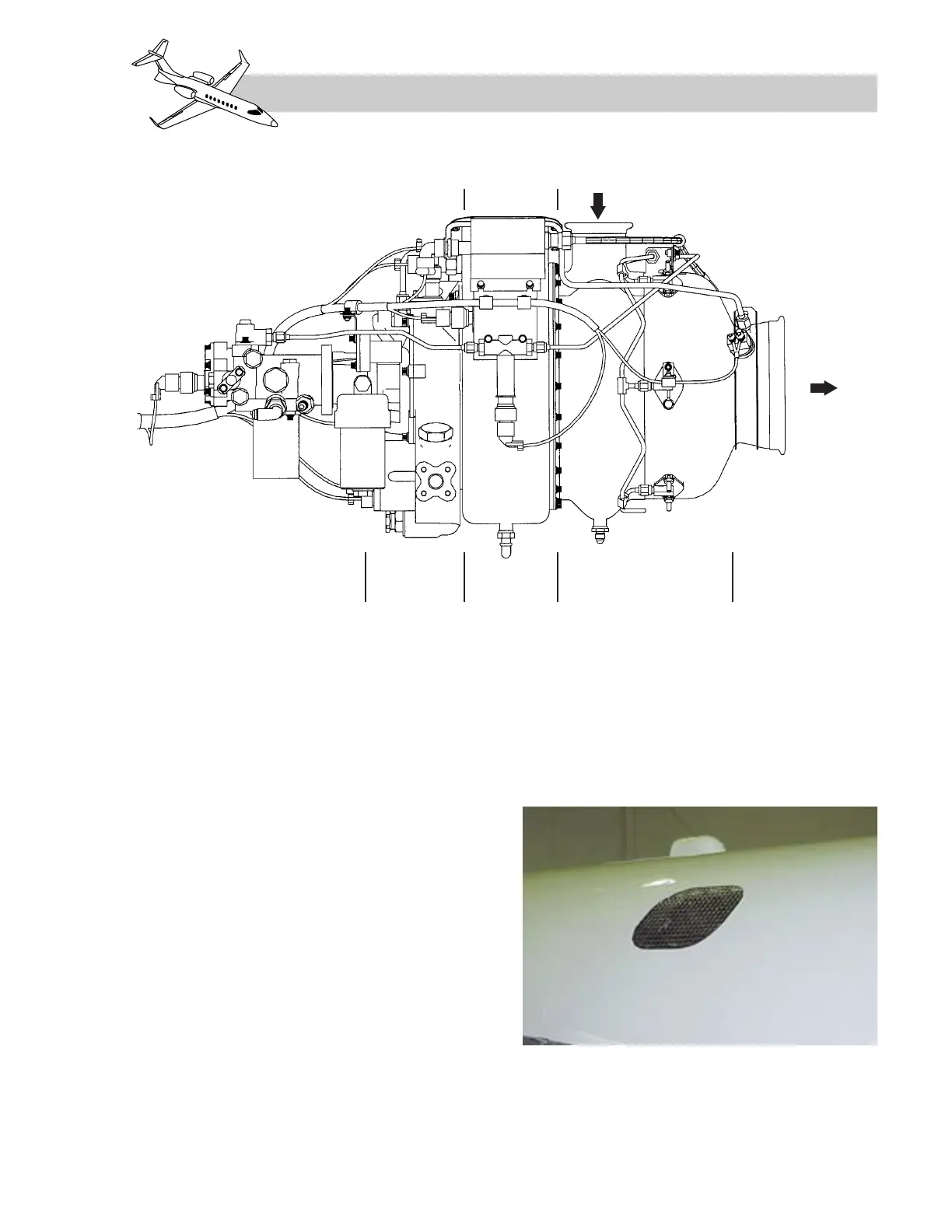

Air Intake
The air intake is a screened rectangular inlet
located on the upper left side of the rear fuse-
lage above the engine pylon (Figure 6-3).
Intake air is used for both combustion and in-
ternal cooling of the APU. An intake drain is
routed to a port on the right underside of the
aft fuselage.
Compressor
The compressor section consists of a single-
stage centrifugal impeller and diffuser. The
compressor develops approximately 45 psi at
normal operating speed.
Combustion Section
The combustion section consists of a single,
annular, reverse flow combustion chamber
and single ignitor plug.
6-3
