LEARJET 45 PILOT TRAINING MANUAL
13-7
FOR TRAINING PURPOSES ONLY
FlightSafety
international
MULTI-
FUNCTIONAL
DISPLAY
(MFD)
ENGINE
INSTRUMENT
CREW ALERTING
SYSTEM (EICAS)
CAS
FUEL
FLT
ECS
HYD
ELEC
SUMRY
ELECT
VOLTS
EMER-V
AMPS
TEMP °C
28.5 28.0
28.0
50
65
30
50
HYD/ECS
MAIN
B-ACUM
CAB ALT
OXY QTY
3000
3000
1300
669
FLT
SPLR
PIT
AIL
RUD
0
0
R 3
L 2
SUMRY
ELEC
HYD
RTN
ECS
FLT
FUEL
M/P
RNG
BRAKE
ACCUM
3000
PSI
A
PUMPAUX
RESERVOIR
R
3000
L
MAIN PSI
ENGINE PUMPS

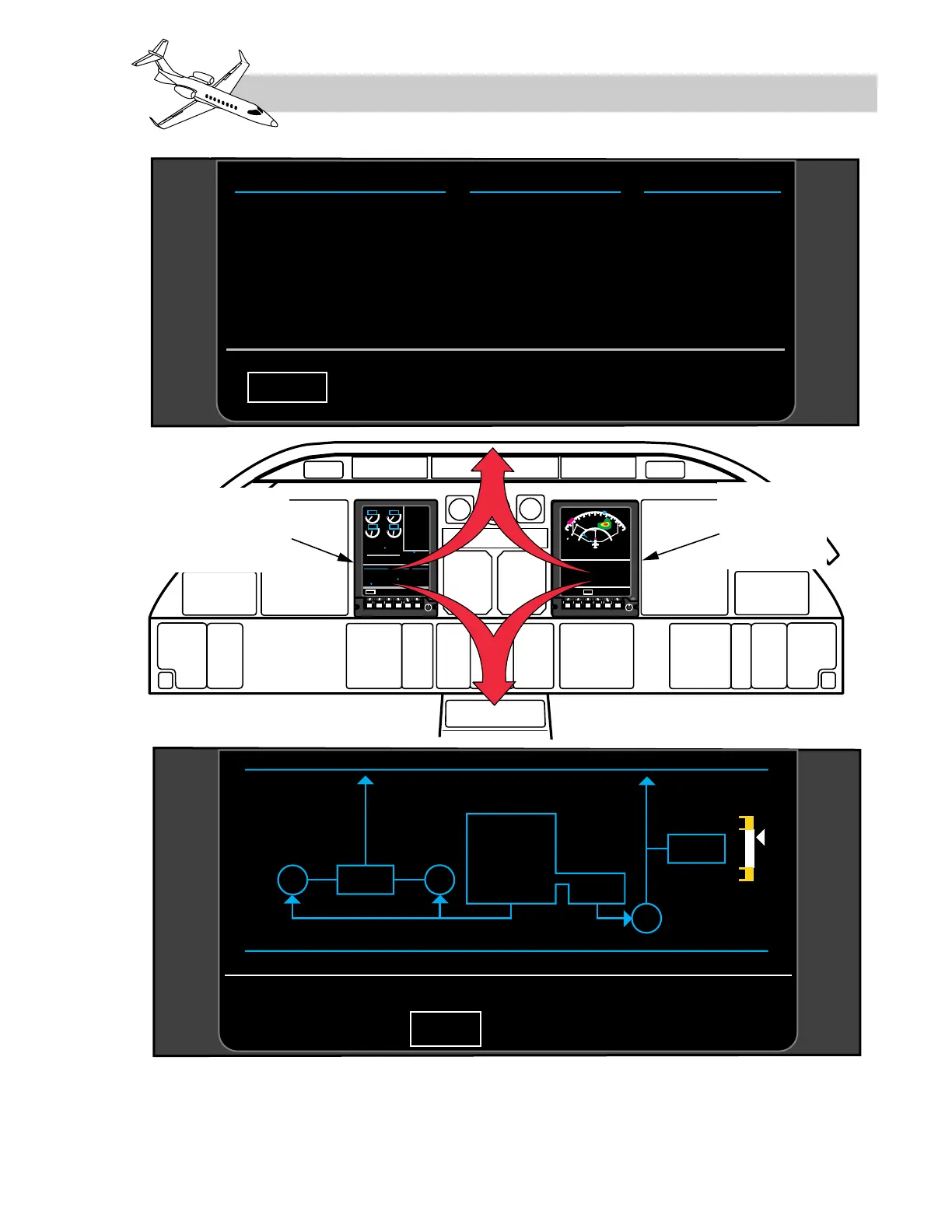

Figure 13-4. Hydraulic System Indications on EICAS and MFD
