LEARJET 45 PILOT TRAINING MANUAL
16-53
FOR TRAINING PURPOSES ONLY
FlightSafety
international
33
30
W
N
3
6
E
12
15
S
21
24
3
2
1
0
1
2
3
1000
30
30
40
20
20
14500
143
00
20
80
29.92 IN
140
00
160
180
140
1
9
120
160
HDG
VS
HDG
001
359
CRS
VOR1
13.1
NM
25
VOR1
ADF2
100
14000
10
10
3000
CAPTURED LATERAL
FLIGHT DIRECTOR
MODE FIELD
CAPTURED VERTICAL
FLIGHT DIRECTOR
MODE FIELD
ALTITUDE PRESELECT
(BOX - CYAN/AMBER)
(DIGITS - MAGENTA/AMBER)
500 FOOT
CHEVRON
1000 FOOT
CHEVRON
VERTICAL
SPEED
SET DISPLAY
TCAS "NO-FLY"
ZONE
(RED)
TCAS "FLY TO"
ZONE
(GREEN)
HEADING SELECT
DIGITAL READOUT
BEARING #2 ANNUNCIATOR
BEARING #1
ANNUNCIATOR
WIND DISPLAY
COURSE/DESIRED
TRACK DIGITAL
READOUT
(GREEN/WHITE/
YELLOW)
MACH SPEED
(DIGITS - WHITE/
AMBER/RED)
EYEBROW
(BLUE OR
BROWN)
AIRSPEED
TREND
VECTOR
.400 M
EXCESSIVE PITCH
CHEVERON

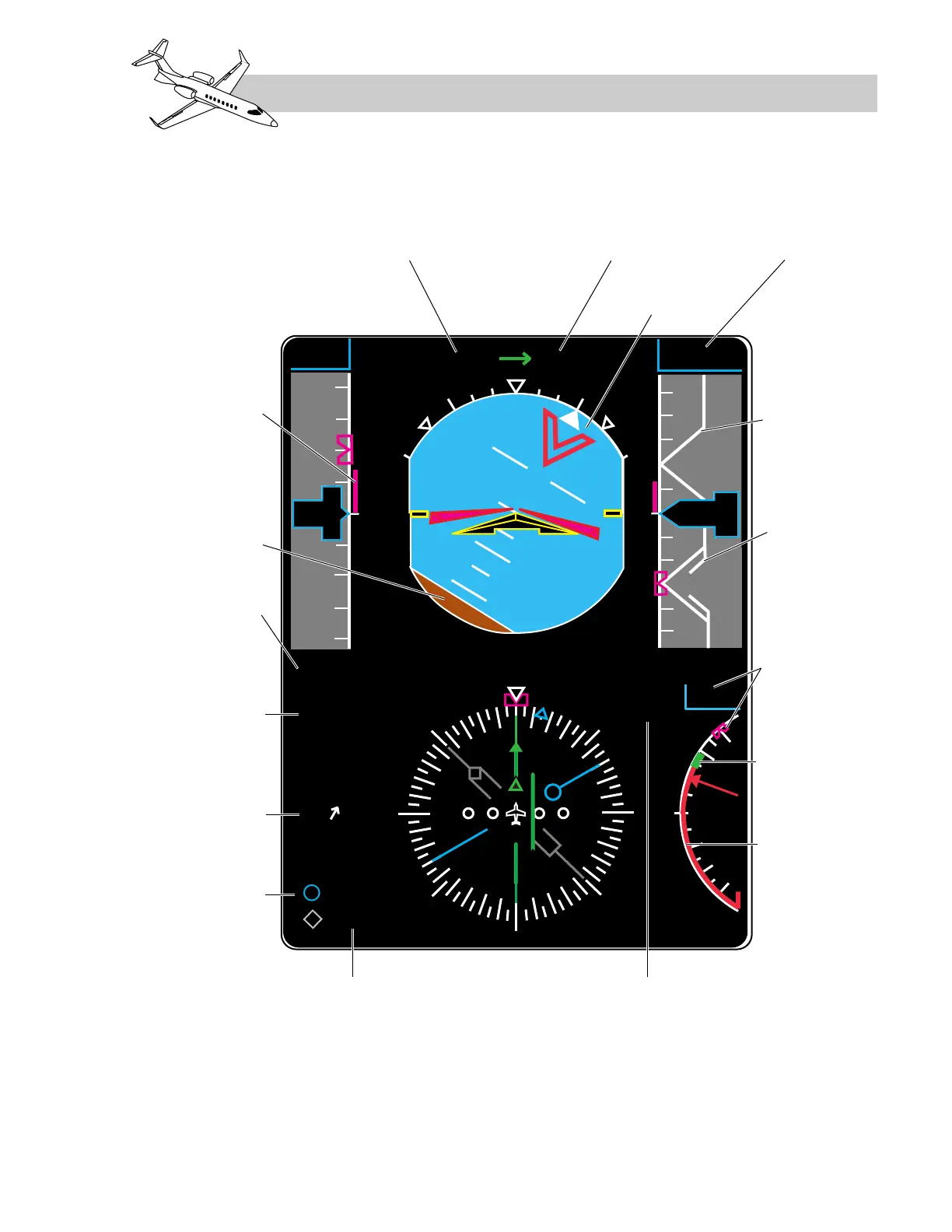

Figure 16-34. Primary Flight Display/TCAS Display Format
