FlightSafety LEARJET 45 - Page 450

LEARJET 45 PILOT TRAINING MANUAL
16-66
FOR TRAINING PURPOSES ONLY
FlightSafety
international
STAB
TGT
WX
-4
30
33
N
3
6
50
50
360
KDVT
LL01
PBD01
PLAB1
#TOC
FL300
25
FMS1
KDVT
12.5 NM
12 MIN
300 TAS
+15 SAT
245 GSPD
315
47.0
CHK EICAS MAG2
PLAB2
CHECK EICAS
MESSAGE
WX VIDEO FAULT
ANNUNCIATOR
HEADING DIGITAL
DISPLAY
AHRS REVERSION
HEADING SOURCE
ANNUNCIATOR
DRIFT BUG
TRUE AIRSPEED
(LABEL - CYAN)
(DIGITS - WHITE)
STATIC AIR
TEMP
GROUNDSPD
WEATHER
RADAR
PATCH
WEATHER
RADAR
DISPLAY
AREA
TICKS
MAP RANGE
RING
AND DIGITAL
VALUE
DESIGNATOR
BEARING AND
DISTANCE
LRN SOURCE
ANNUNCIATOR
"TO" WAYPOINT
IDENTIFIER
DISTANCE
TIME-TO-GO
HEADING BUG
WIND DISPLAY
AIRPLANE
SYMBOL
WX MODES
(AMBER)
WX TARGET
ALERT
(AMBER/CYAN)
WX MODES
(AMBER/CYAN)
WX TILT
WX
Honeywell
WXSYS MFD
MENU
CKLST PLAN
MAP
TCAS
00
-05
+20
-10
-12
TCAS TEST
ABV
FL
RA NO BRG
TA NO BRG
6

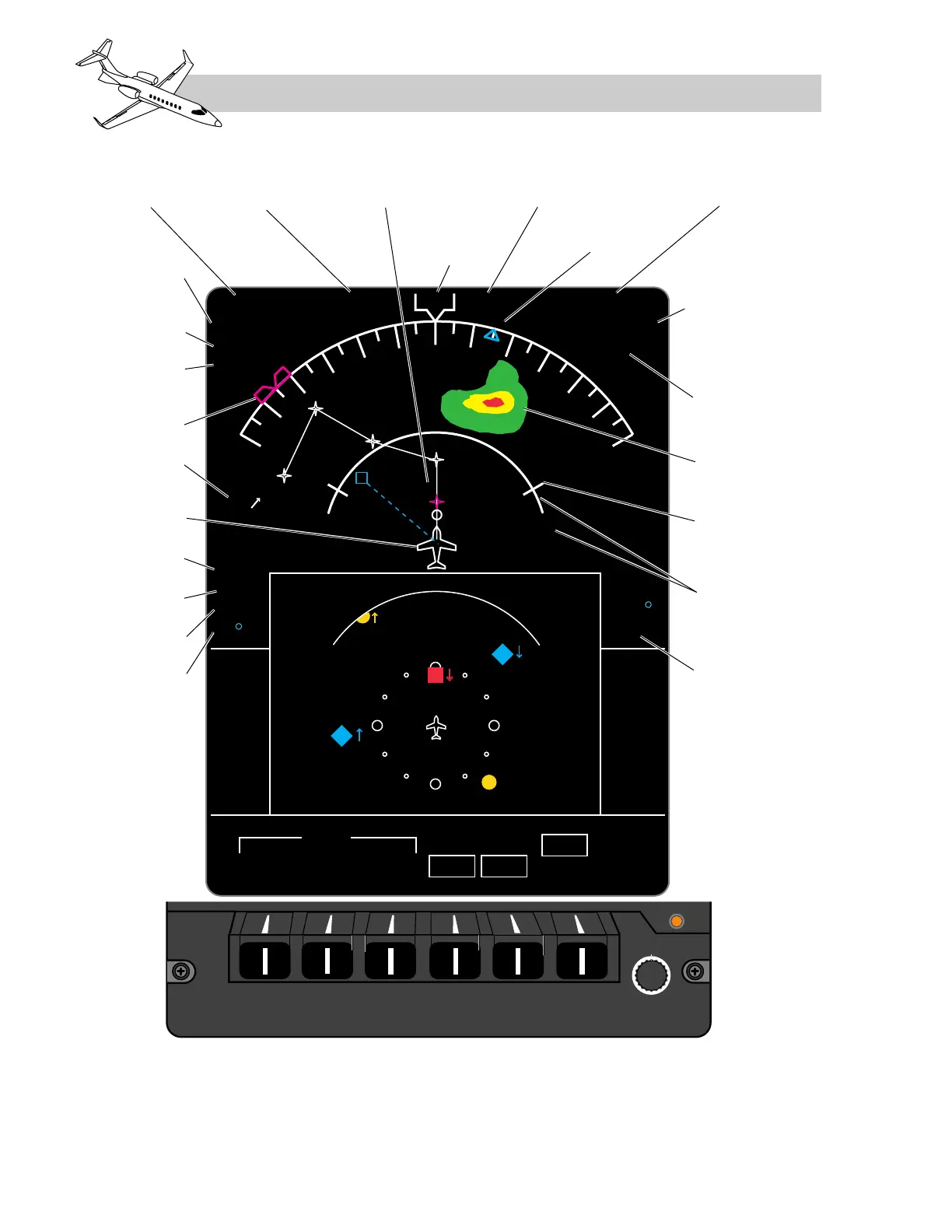

Figure 16-38. MFD Format – WX on MAP Display
