W X
30
33
N
3
6
50 50
---
FMS1
--.- NM
--- M I N
--- TAS
--- SAT
--- GSPD
MENU INOP
HDG
FAIL
INVALID
SYSTEM PAGE
DISPAY AREA
INVALID HEADING
DIGITAL DISPLAY
(AMBER DASHES)
INVALID
TRUE AIRSPEED
(AMBER DASHES)
INVALID
STATIC AIR
TEMPERATURE
(AMBER DASHES)
INVALID
GROUNDSPEED
(AMBER DASHES)
INVALID HEADING
DISPLAY
INVALID
DISTANCE
(AMBER DASHES)
INVALID
TIME-TO-GO
(AMBER DASHES)
INVALID WX
(AMBER)
INVALID BEZEL
MENU DISPLAY

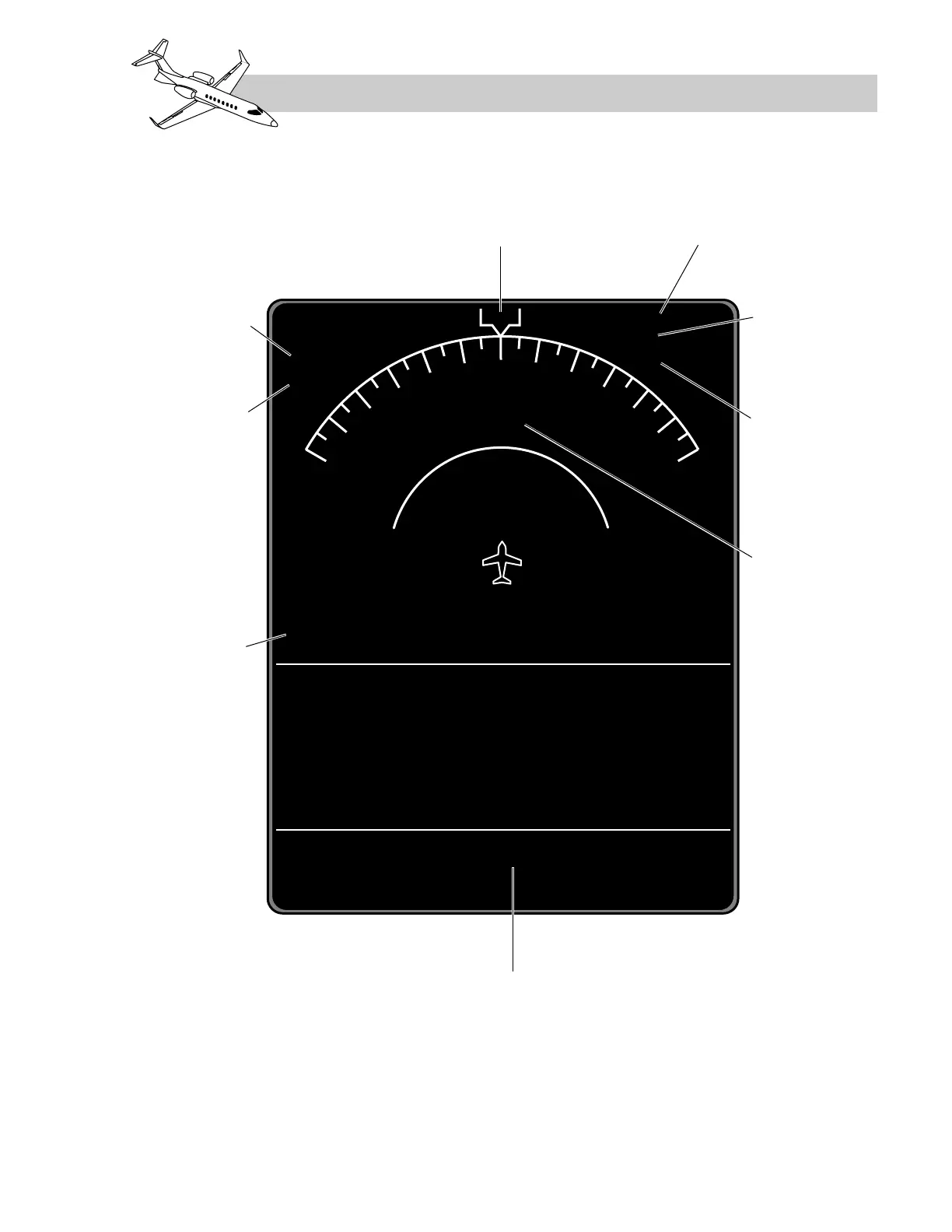

Figure 16-45. MFD Format – Test Display
