TCAS TEST
ABV
FL
RA NO BRG
TA NO BRG
20
-12
-05
10
00
BEZEL MENU DISPLAY AREA
MAP/PLAN
DISPLAY AREA
ABOVE/BELOW
DISPLAY MODE
(ABV - WHITE)
(BLW - WHITE)
ABSOLUTE ALTITUDE
ANNUNCIATION
(WHITE)
TCAS SCALE
HALF-RANGE
ARC
RELATIVE
ALTITUDE
DISPLAY
VERTICAL
SENSE
ARROW
TCAS RANGE
DIGITAL READOUT
TA NO BEARING
DISPLAY
(AMBER)
RA NO BEARING
DISPLAY (RED)

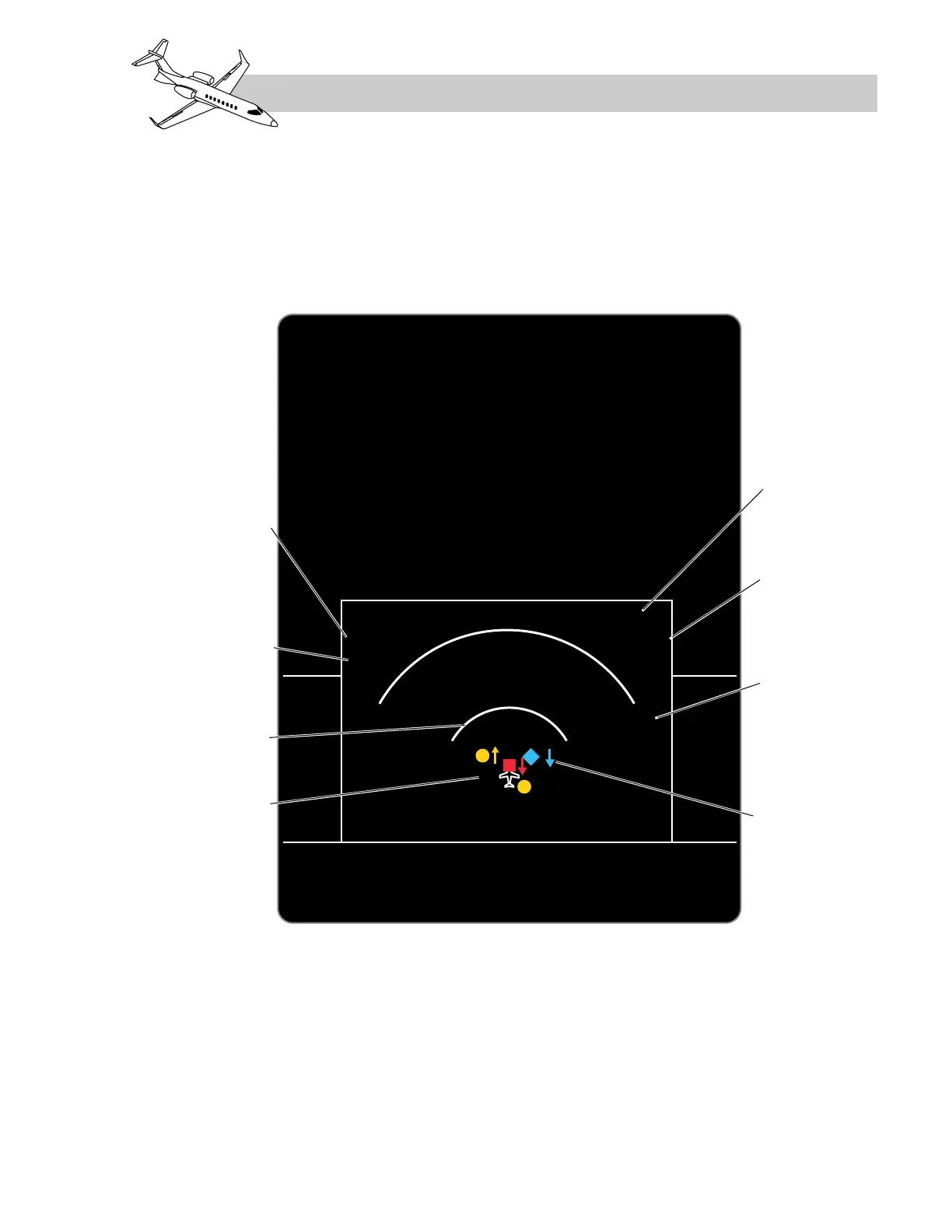

Figure 16-56. TCAS Annunciations Long Range
