OXYGEN CYLINDER
PASSENGER
OXYGEN
BLEED FITTING
PASSENGER OXYGEN
CONTROL VALVE
ALTITUDE COMPENSATING
REGULATOR
OXYGEN CYLINGER
CHARGING VALVE
CREW OXYGEN
MASK CONNECTION
PASSENGER
OXYGEN OUTLET
STANDARD ON 45-170 AND
SUBSEQUENT. OPTIONAL ON
EARLIER AIRCRAFT.
PASSENGER
OXYGEN MASK
CONTAINER
(LAVATORY AREA)
PASSENGER
OXYGEN MASK
CONTAINER
(CABIN AREA)
CREW OXYGEN
MASK CONNECTION
OVERBOARD
DISCHARGE
INDICATOR
OXYGEN
CYLINDER
SHUTOFF VALVE
PAX OXYGEN CONTROL PANEL
CPCS
*
*

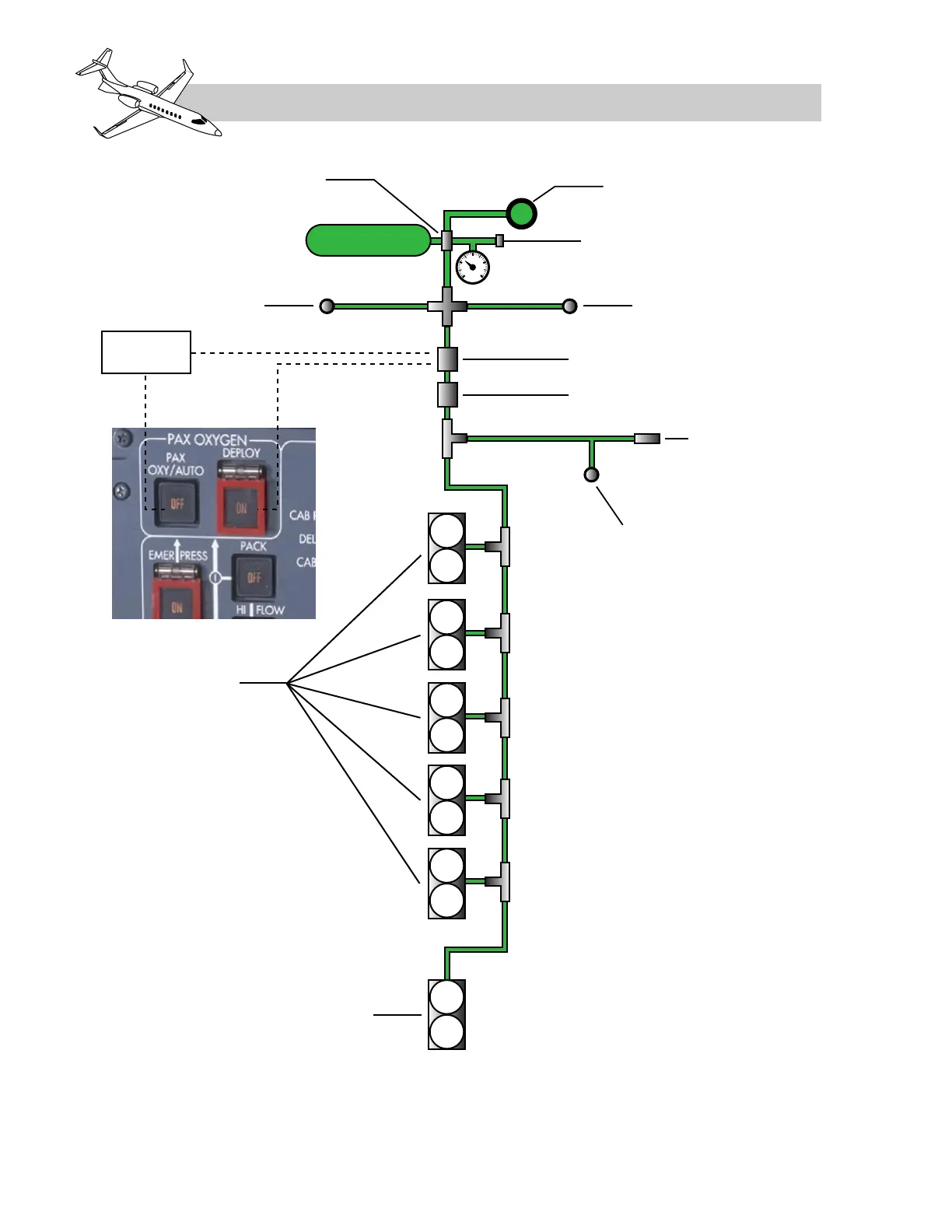

Figure 17-1. Oxygen System Diagram
