Digital Video and PC Interface
432-0012-00-12 Version 110 July 2016 18
Digital Video and PC Interface
A computer (PC) on the network can control and configure the camera using a web browser (see
“IP Interface and PC Operations” on page 20). Additionally, both IR and DLTV digital video
streams are available on the Ethernet connection to a shipboard network for use by a video
management system (VMS) or a network video recorder (for example, FLIR DNR400 Series) to
record video streams and provide other features such as video storage and backup. Refer to the
documentation for the VMS or video recorder for operation and setup details.
FLIR DNR400-Series Connection
1. Open a web browser and enter the camera IP address to log in with the admin user name.
2. Ensure that the VMS Remote INTERFACE 1 driver (ONVIF v2.0) is enabled. Refer to
“Maintenance->Sensor->Communications->VMS Remote” on page 33.
3. Connect the camera Ethernet to the switch, as shown in Figure 2-2.
4. Connect the video recorder on the same Ethernet network.
The DNR400 video recorder must be connected to the Internet to utilize services.
5. Follow the instructions in the VMS or video recorder documentation to discover the camera.

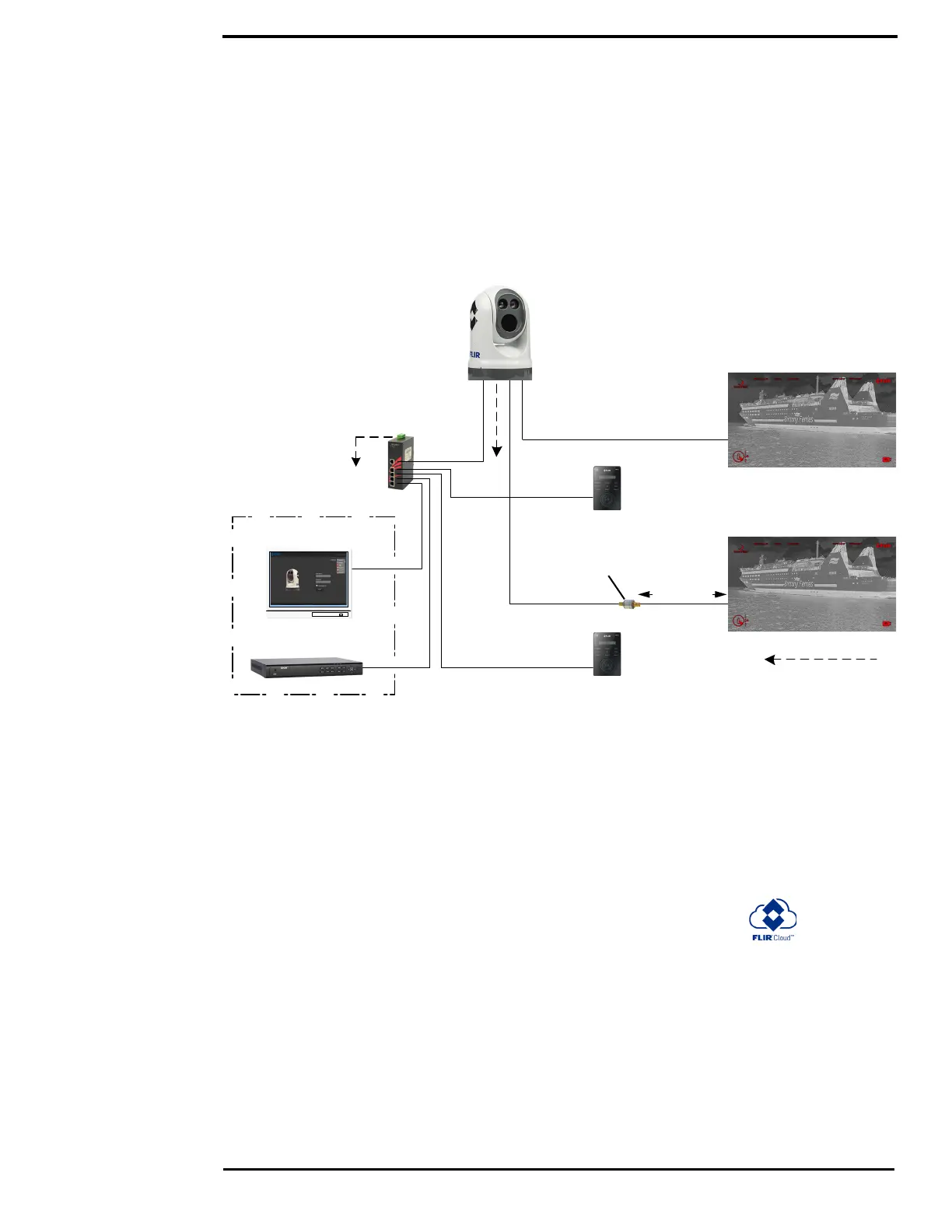

Digital Video/Control
Ethernet
JCU II
Dashed lines represent
connection to power
PC
Analog Video
HD-SDI Video
JCU II
Customer supplied monitor
Customer supplied monitor
PoE Switch
Customer supplied
Isolation
transformer
1 m or less
Network Video Recorder
Figure 2-2: Three-Station System with Video Recorder
