M400 Web Browser Interface
432-0012-00-12 Version 110 July 2016 38

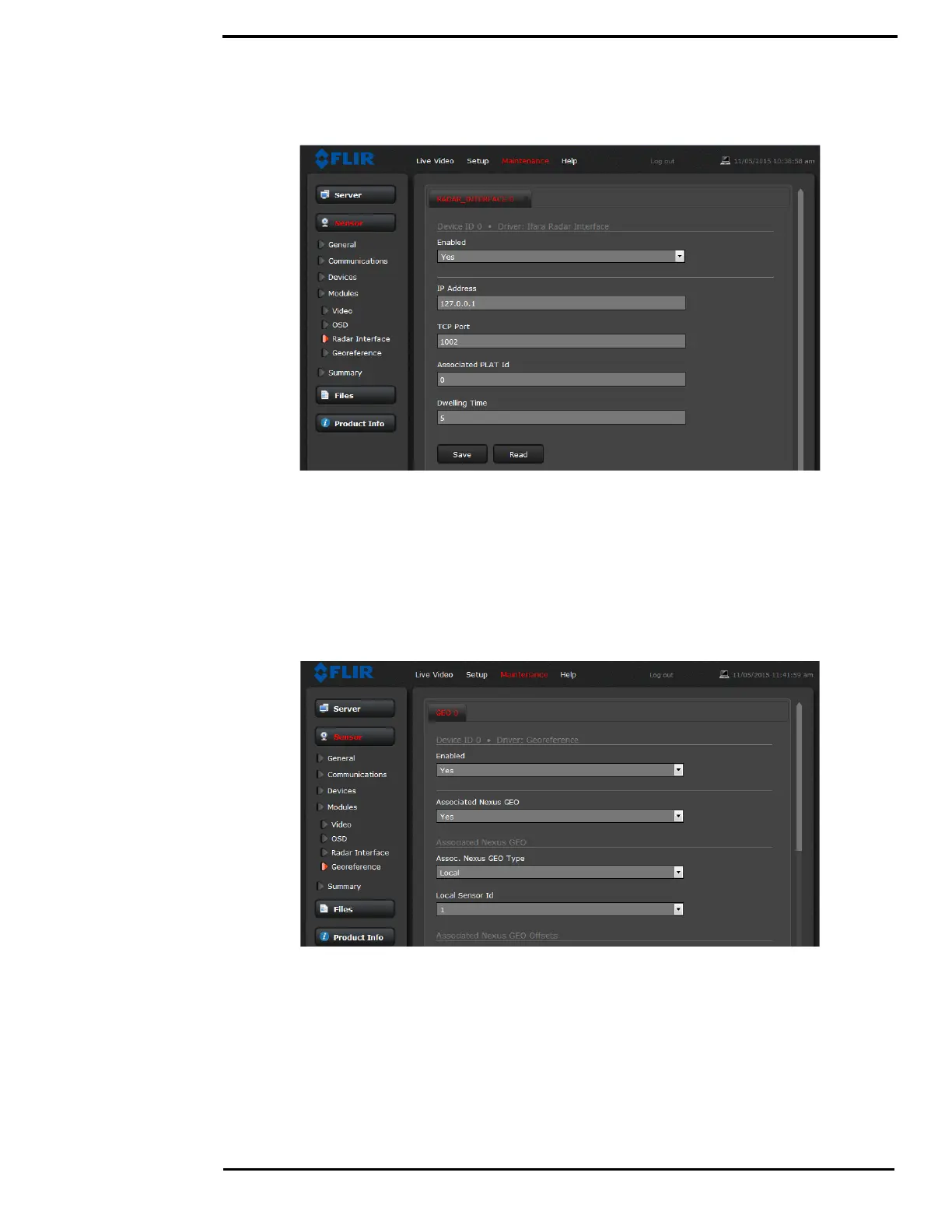

Maintenance->Sensor->Modules->Radar Interface
Geo-Referencing of the Sensors
The Camera Server and the Radar Server can each have a Georeference location. When the
camera is installed on a vessel, the location information can come from a GPS and gyrocompass
and the information is available as NMEA data directly from those devices or through the radar
device.
Maintenance->Sensor->Modules->Georeference
The Camera Server can have a different Georeference location and heading than the Radar
Server, but typically they are associated with each other, with an offset if they are in different
locations on a larger ship. It is recommended that the Radar Server is configured to receive the
live location information, and the Camera Server Georeference can be associated with the Radar
Server Georeference.
