432-0012-00-12 Version 110 July 2016 47
A
Mechanical ICD Reference
The following Mechanical Interface Control Documents detail the outline and mounting for the
M400 systems. These documents are provided for reference only. You should consult your local
sales representative or application engineer to obtain current ICD information. Also, the Thermal
Imaging Camera Data Sheet available from the website contains important mechanical interface
data as well.

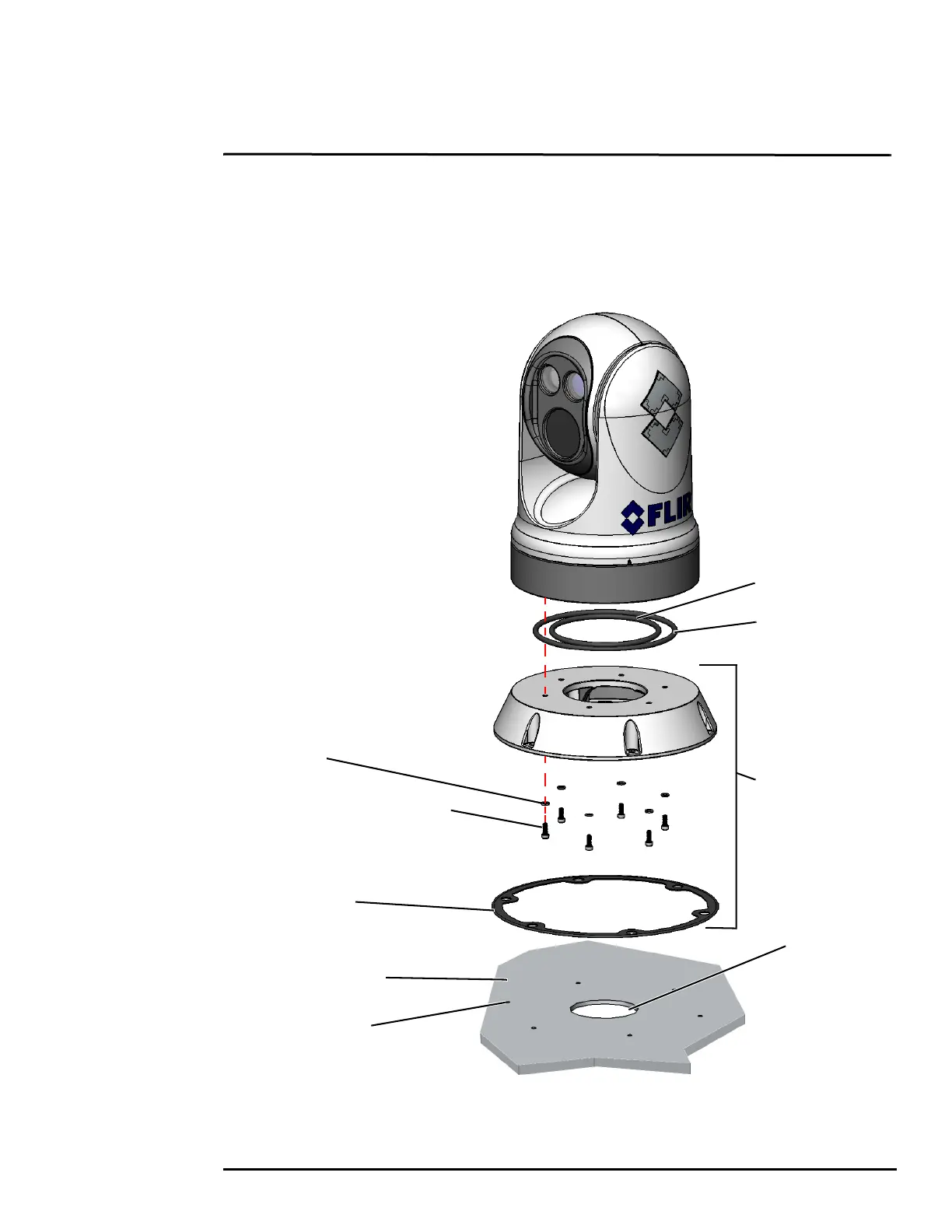

Figure A-1: M400 Top Down Riser Installation—Ball up
Socket Head Cap Screw with locking patch
M6 X 1.0
Length: 16 mm
316 Stainless Steel
6 places
Apply corrosion inhibitor (USS TEF-GEL)
Torque to 9.5 N-m (7 lb-ft)
AS568-436 EPDM O-Ring
[5.85in ID x .275in DIA]
[49mm ID x 7mm DIA]
AS568-444 EPDM O-Ring
[7.72in ID x .275in DIA]
[96mm ID x 7mm DIA]
M400 Weight: <12.25 kg (27 lb)
Cable Port
Washer M6
316 Stainless Steel
Mounting holes per
customer supplied hardware
6 Places
Customer decking, or
other structure
maximum deck thickness for
right angled cables without
Top Down Riser: 10 mm
Gasket, Top Down Riser
Top Down Riser Kit
FLIR PN 4141973
Highly recommended
for installations onto
metal surfaces
Fasteners between Top
Down Riser and
mounting surface to be
supplied by the installer.
Warning
Do not bottom fasteners in base.
Bolt length not to exceed 6 mm into base.
Electronics will be damaged by base penetration
Bolt torque not to exceed 9.5N-m (7 lb-ft).
6 places
