M400 Web Browser Interface
432-0012-00-12 Version 110 July 2016 36
Changing Video Outputs
The M400 camera system has two cameras with different video streams which are then processed
to provide multiple display formats and video resolutions. Use the following web pages to control
these video streams and how they are affected by Active Camera selections from the JCU II.
Maintenance->Sensor->Devices
• Sensor -> Devices->IR, Aspect Ratio—select either 4:3 or 16:9 video
• Sensor -> Devices->DLTV—16:9 video
These video streams are provided unchanged as inputs to VIDMUX.

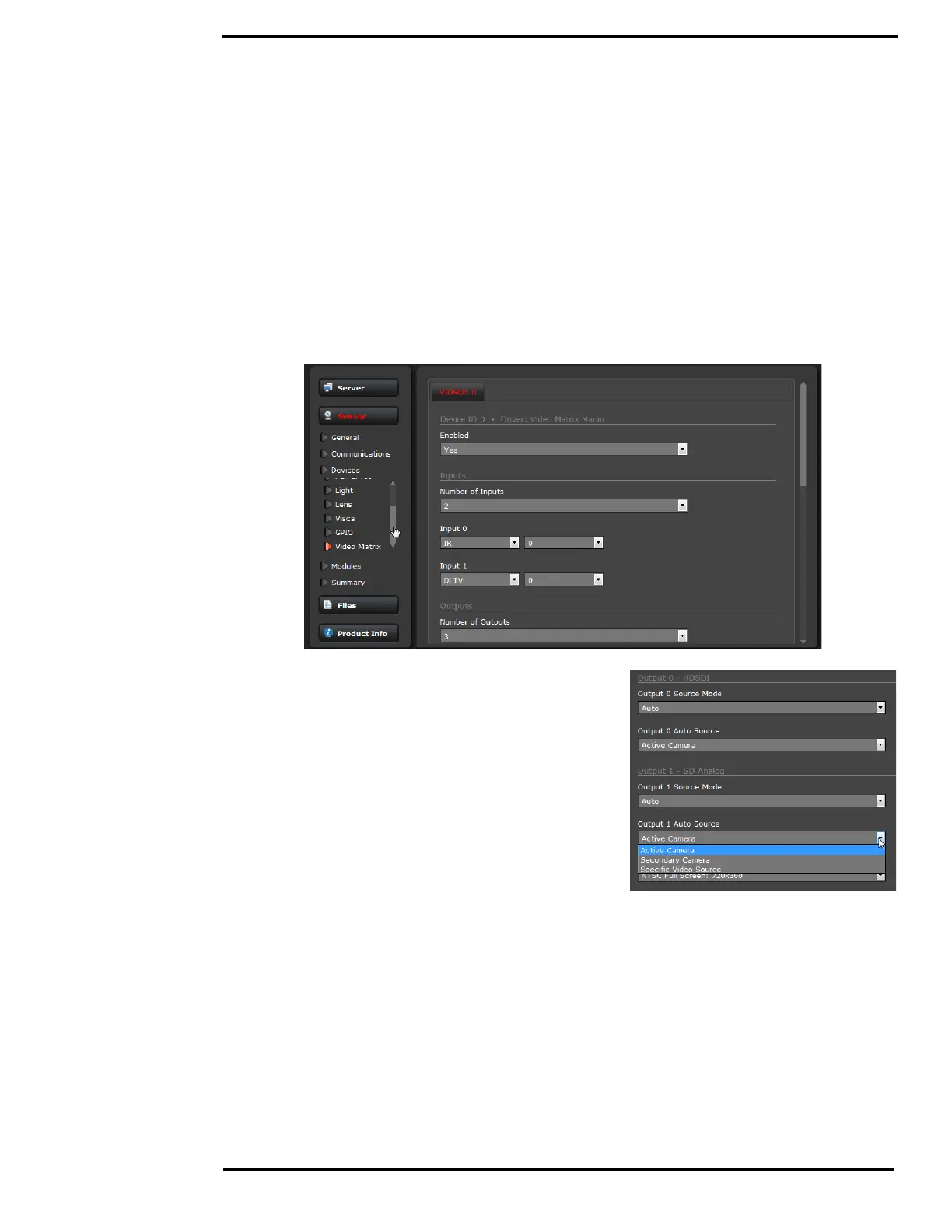

Maintenance->Sensor->Devices->Video Matrix
Scroll down to select how the Active Camera selection
will affect each video Output (HDSDI, SD, or LiveView).
Each video output stream can be set to the Active
Camera, Secondary Camera, or to always display one
or the other of the cameras.
Note: The IP video output streams can not be changed
except by the initial selection above in Maintenance->
Sensor->Devices->IR or DLTV.
Additional display resolution settings can be made for
the standard video (SD) and the LiveView video
streams.
• Sensor -> Devices->Video Matrix Output 0 - HDSDI is output unchanged.
• Sensor -> Devices->Video Matrix Output 1 - SD Analog is processed as either NTSC
Letter Box 720x360 (cropped top and bottom), NTSC Center Box 720x480 (full data), PAL
Letter Box 720x432 (cropped top and bottom), or PAL Center Box 720x576 (full data).
• Sensor -> Devices->Video Matrix Output 2 - LiveView (Live Video web page) is output
unchanged.
