FLIR M400 Installation Guide

Installation Overview
432-0012-00-12 Version 110 July 2016 8
Installation Overview

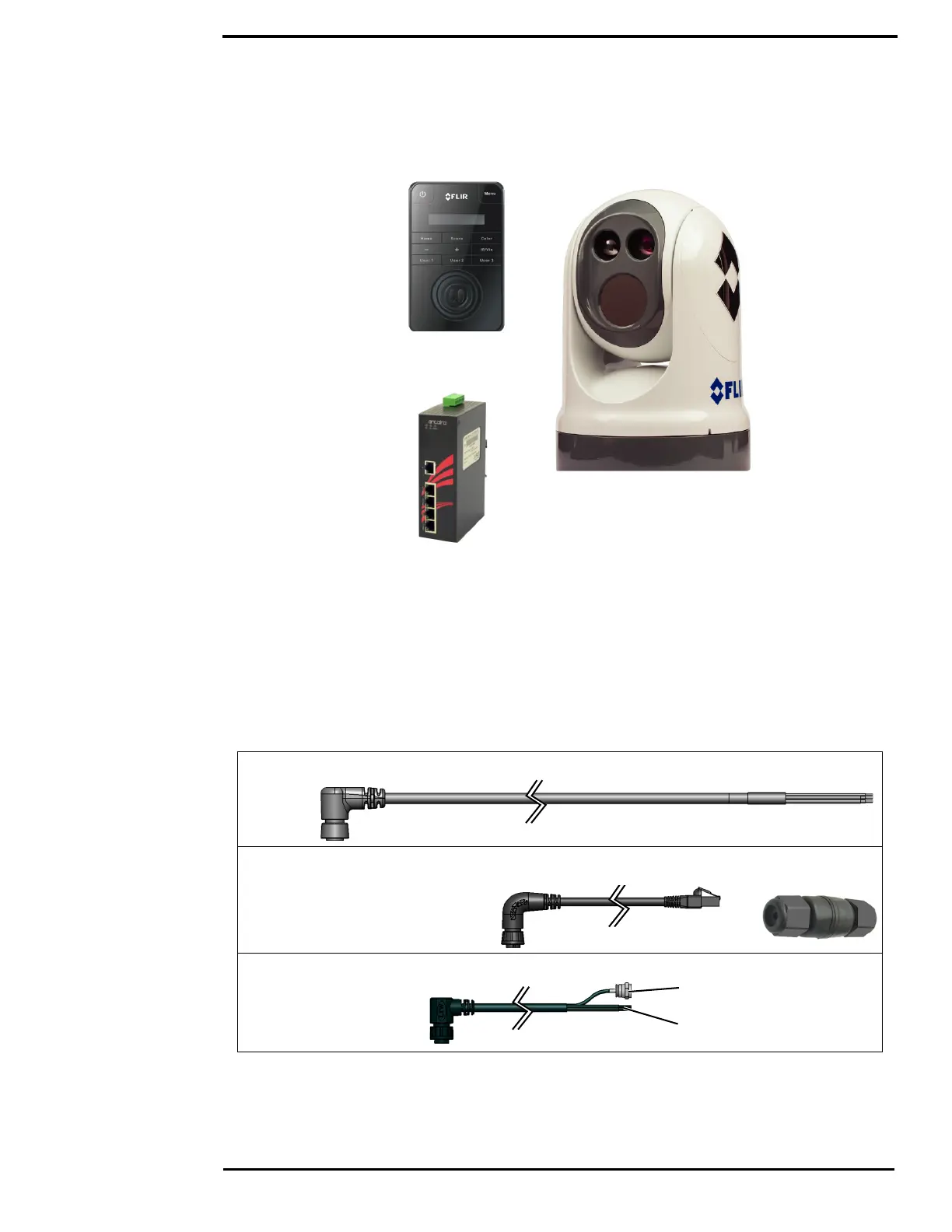

The M400 includes these standard components:
The standard cable set shipped with the M400 system is shown below in Figure 1-1. See “M400
Interface Control Document” on page 55 for the location of cable connections on the bottom of the
M400 camera.
Contact FLIR Systems, Inc. for information on additional cables, shown in Table 1.1, which may be
purchased.
308-0263-01-00 - Power cable - right angle, 12 AWG, 1 m
308-0261-01-00 - Ethernet cable - right angle to RJ45, 1 m
4115028 - RJ45 waterproof enclosure coupler
308-0265-01-00 - AV and serial cable - right angle, 1 m
M400 Pan/Tilt Camera
432-0012-00-00
Joystick Control Unit
PN 500-0398-10
5-port PoE+ Ethernet Switch
PN 4141042
NMEA and Factory test
F-type connector
serial interface

FLIR M400 Specifications

General

Thermal Resolution	640 x 480
Image Stabilization	Yes
Spectral Range	7.5 - 13.5 µm
Frame Rate	30 Hz
Power Supply	24 VDC
Digital Zoom	8x
Pan/Tilt	360° continuous pan, ±90° tilt
Video Output	HD-SDI
Environmental	IP66
Sensor Type	VOx Microbolometer
Thermal Sensitivity	<50 mK
Temperature Range	+55°C (–13°F to +131°F)
Operating Temperature	-25°C to +55°C (-13°F to +131°F)
