FLIR M400 Installation Guide

Installation Overview
432-0012-00-12 Version 110 July 2016 9
308-0267-00 - HD-SDI cable, 1 m
4142057 - HD-SDI isolation transformer

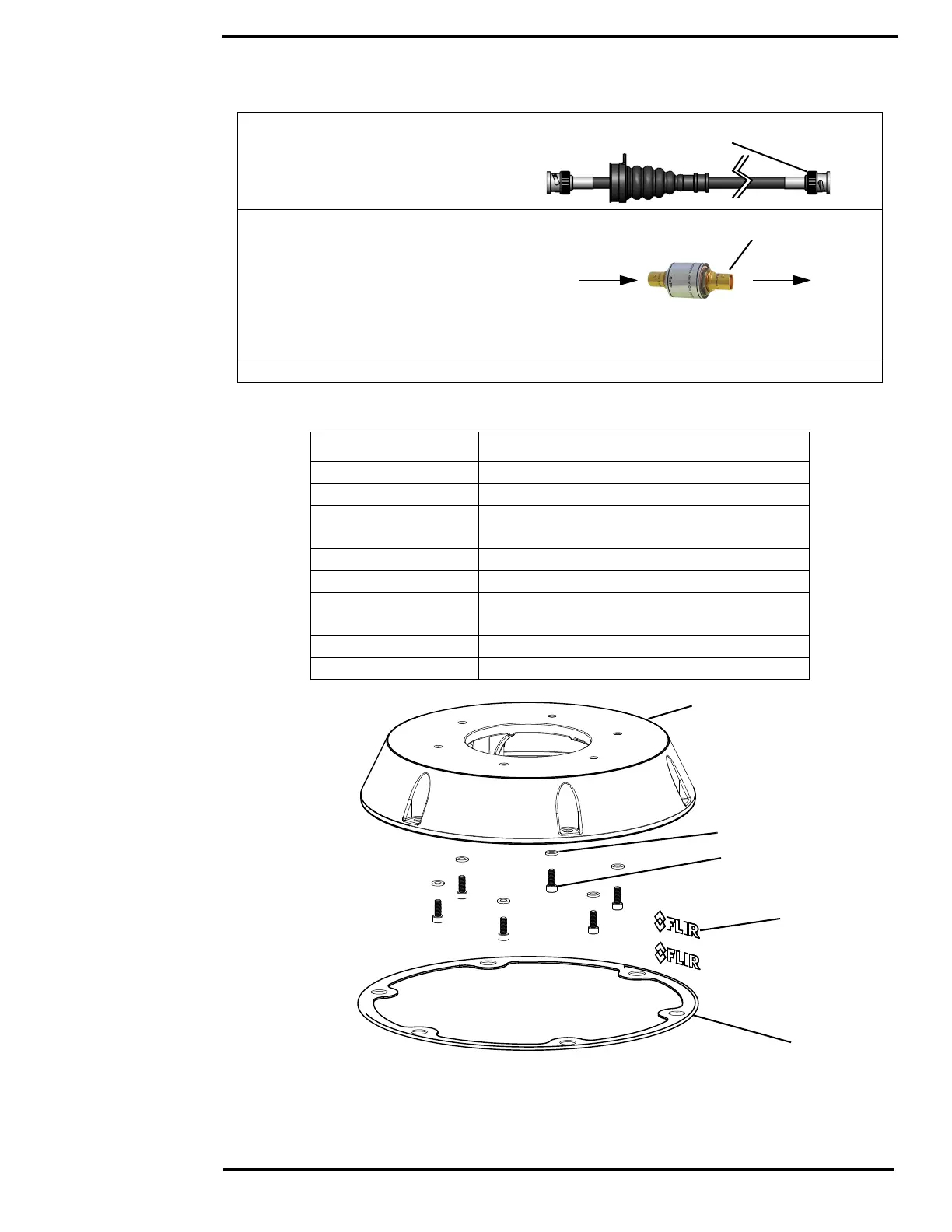

Figure 1-1: Standard Cable Set
TABLE 1.1 Additional Cables Available from FLIR
Part Number Description
308-0260-01-00 Cable - Ethernet to RJ45, 1 m
308-0262-01-00 Power Cable - 12 AWG, 1 m
308-0264-01-00 Cable - AV and serial, 1 m
4141864 Cable - HD/SDI, 100 ft
308-0251-30-00 Cable - Ethernet to RJ45, 100 ft, LSZH
308-0252-30-00 Cable - Ethernet, RA to RJ45, 100 ft, LSZH
308-0253-30-00 Cable - Power, 12 AWG, 100 ft, LSZH
308-0254-30-00 Cable - Power, right angle, 12 AWG, 100 ft, LSZH
308-0255-30-00 Cable - AV and serial, 100 ft, LSZH
308-0256-30-00 Cable - AV and serial right angle, 100 ft, LSZH
BNC connectors (2)
HD-SDI Isolation Transformer
BNC connectors (2)
refer to the latest released ICD
for installation requirements
to display
Input from camera
M6x1 16 mm SHCS (6)
41411973 - Top down riser
Washer M6 (6)
Riser gasket
Vinyl transfer
FLIR logos
Figure 1-2: Top down riser kit

FLIR M400 Specifications

General

Thermal Resolution	640 x 480
Image Stabilization	Yes
Spectral Range	7.5 - 13.5 µm
Frame Rate	30 Hz
Power Supply	24 VDC
Digital Zoom	8x
Pan/Tilt	360° continuous pan, ±90° tilt
Video Output	HD-SDI
Environmental	IP66
Sensor Type	VOx Microbolometer
Thermal Sensitivity	<50 mK
Temperature Range	+55°C (–13°F to +131°F)
Operating Temperature	-25°C to +55°C (-13°F to +131°F)
