M400 Top Down Riser Installation Template
432-0012-00-12 Version 110 July 2016 50

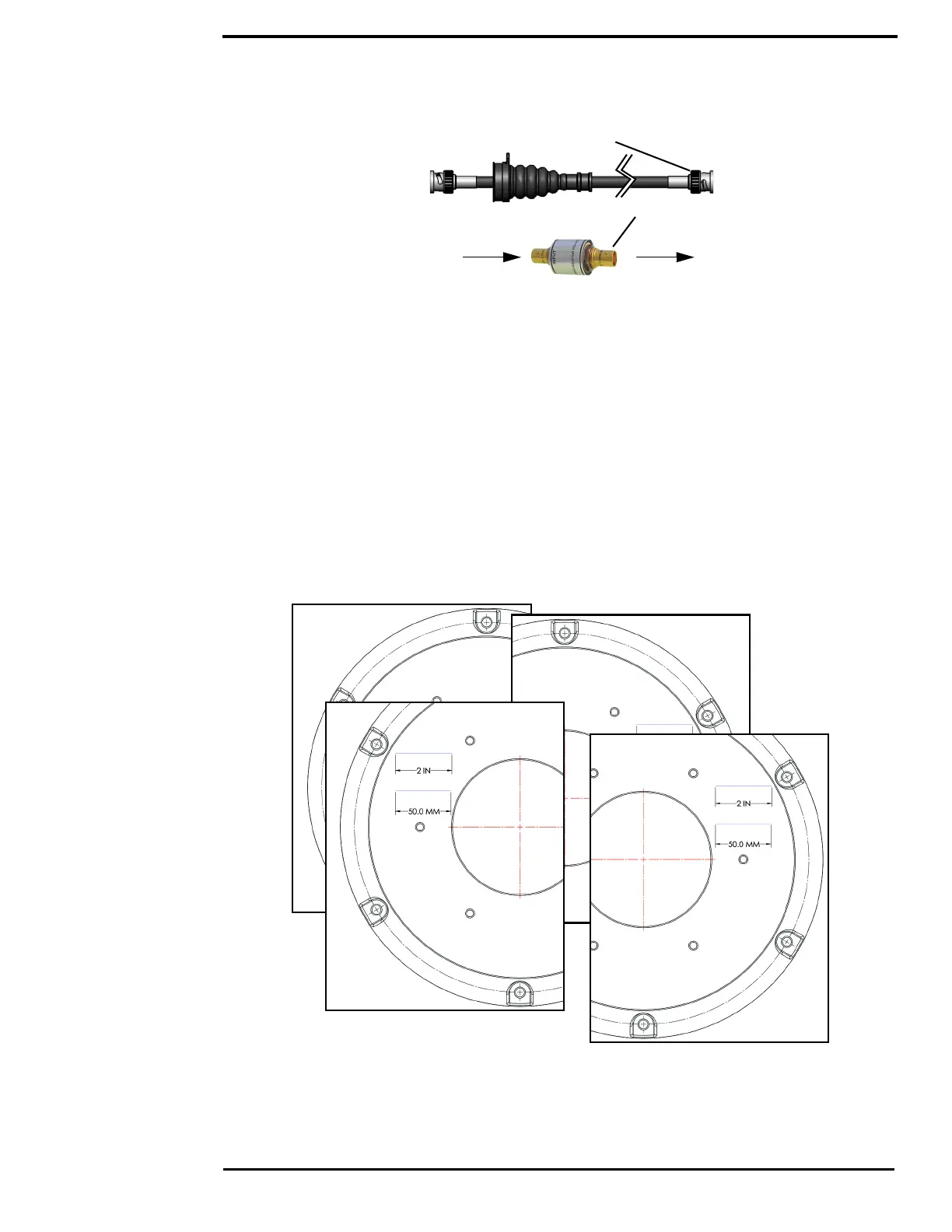

M400 Top Down Riser Installation Template
The following four pages provide a mounting template for the M400 camera using the top down
riser which can be printed on a standard printer using either 8.5x11 or A4 paper. See “M400 Riser
Installation Document” on page 58. for dimensions.
1. Ensure printer margins are set to zero and scale is 100%.
2. After printing verify the scale dimensions of the key on each page.
3. Align the center cross on the sheets to get a full 13 in. by 13 in. template.
Figure A-5: HD-SDI Cable
BNC connectors (2)
HD/SDI Isolation Transformer
BNC connectors (2)
refer to the latest released ICD
for installation requirements
to display Input from camera
To Next Page
