FLIR M400 Installation Guide

432-0012-00-12 Version 110 July 2016 49
TABLE A.1 Analog Video and Serial Cable Pinout
Pin # Signal Name Wire Color
1Factory TX-P GREEN
2 Factory TX-N GREEN/WHITE
3 ANALOG VIDEO OUT RG179
4 ANALOG VIDEO RETURN NATURAL
5NMEA RX-N BROWN/WHITE
6NMEA RX-P BROWN
7NMEA TX-P BLUE
8 Factory RX-N ORANGE/WHITE
9Factory RX-P ORANGE
10 NMEA SHIELD DRAIN
11 Factory SHIELD DRAIN
12 NMEA TX-N BLUE/WHITE
TABLE A.2 Ethernet Cable Pinout
P1
Pin #
Signal Name Wire Color
P2
Pin #
1 TXRX A+ ORANGE/WHITE 1
2 TXRX A- ORANGE 2
3 TXRX C+ DC+ BLUE 4
4 TXRX C- DC+ BLUE/WHITE 5
5 TXRX B+ GREEN/WHITE 3
6 TXRX B- GREEN 6
7 TXRX D+ DC- BROWN/WHITE 7
8 TXRX D- DC- BROWN 8
9NANA
10 DRAIN DRAIN SHELL
NMEA and Factory Test
F-type connector

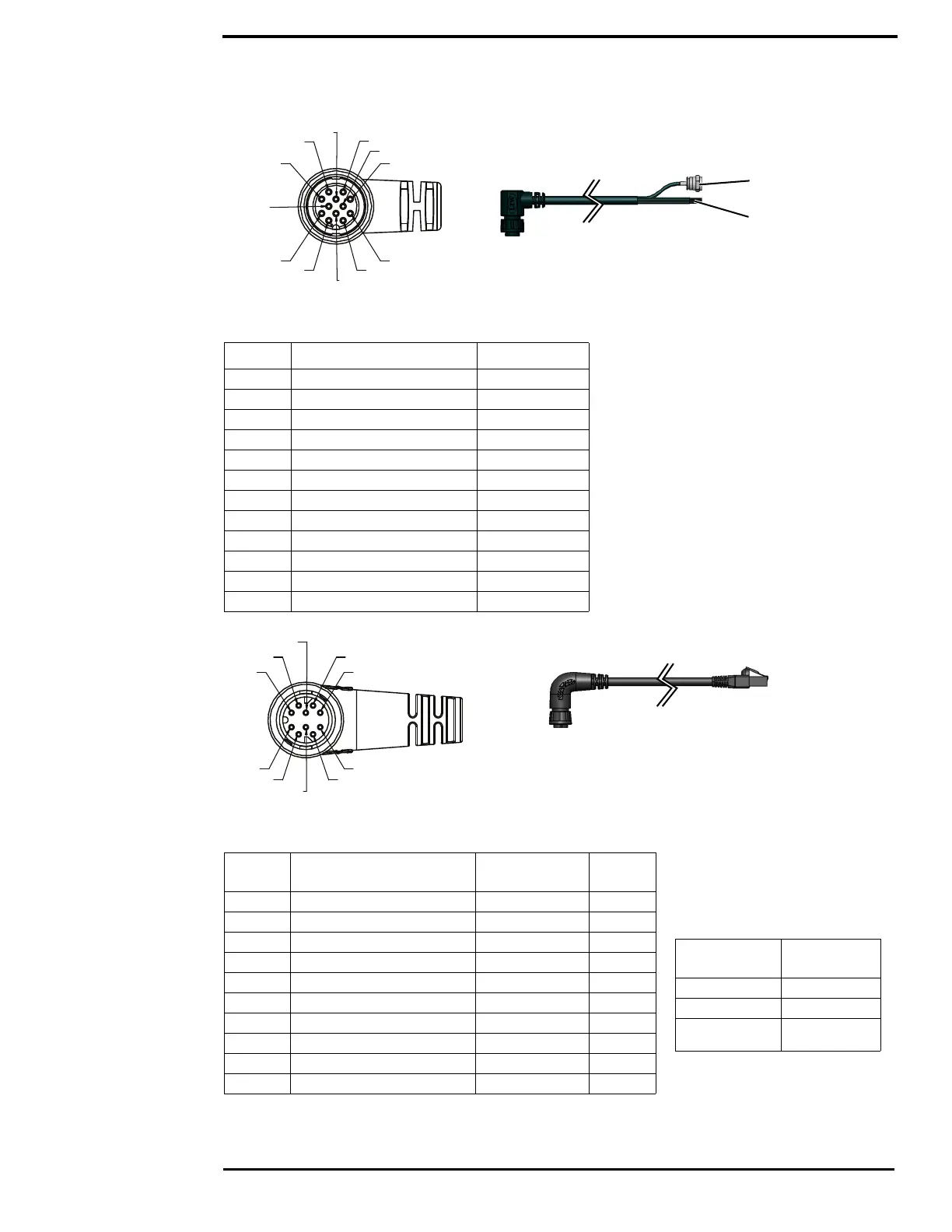

Figure A-3: Analog Video and Serial Cable
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
PIN 7
PIN 8
PIN 9
PIN 10
PIN 11
PIN 12
serial interface
Figure A-4: Ethernet Cable
P1
PIN 2
PIN 1
PIN 9
PIN 8
PIN 7
PIN 6
PIN 5
PIN 10
PIN 3
PIN 4
P2
RJ45 connector pinout in
accordance with 802.3af Standard B
TABLE A.3 Power Cable Pinout
Signal Name
Wire Color
BATT + RED
BATT - BLACK
CHASSIS
GROUND
DRAIN
