M400 Web Browser Interface
432-0012-00-12 Version 110 July 2016 22
Live Video Page
The Live Video page will be displayed, with a live image from the camera on the left part of the
page and a virtual joystick and function buttons on the right part of the page. Next to the FLIR logo
along the top of the screen are some menu choices, including Live Video (the red text indicates it
is selected), Setup, Maintenance, Help, and Log out.
The user log in, shown below, can only use the Live Video page and controls and can only reset
the user password if an admin or expert user has allowed the option for the user log in.
In the lower right of the web page there is a frame rate selector. This selector allows the user to
change the rate at which the frames are displayed in the browser. This rate controls the user’s own
web browser only, and does not affect video streams to other users.

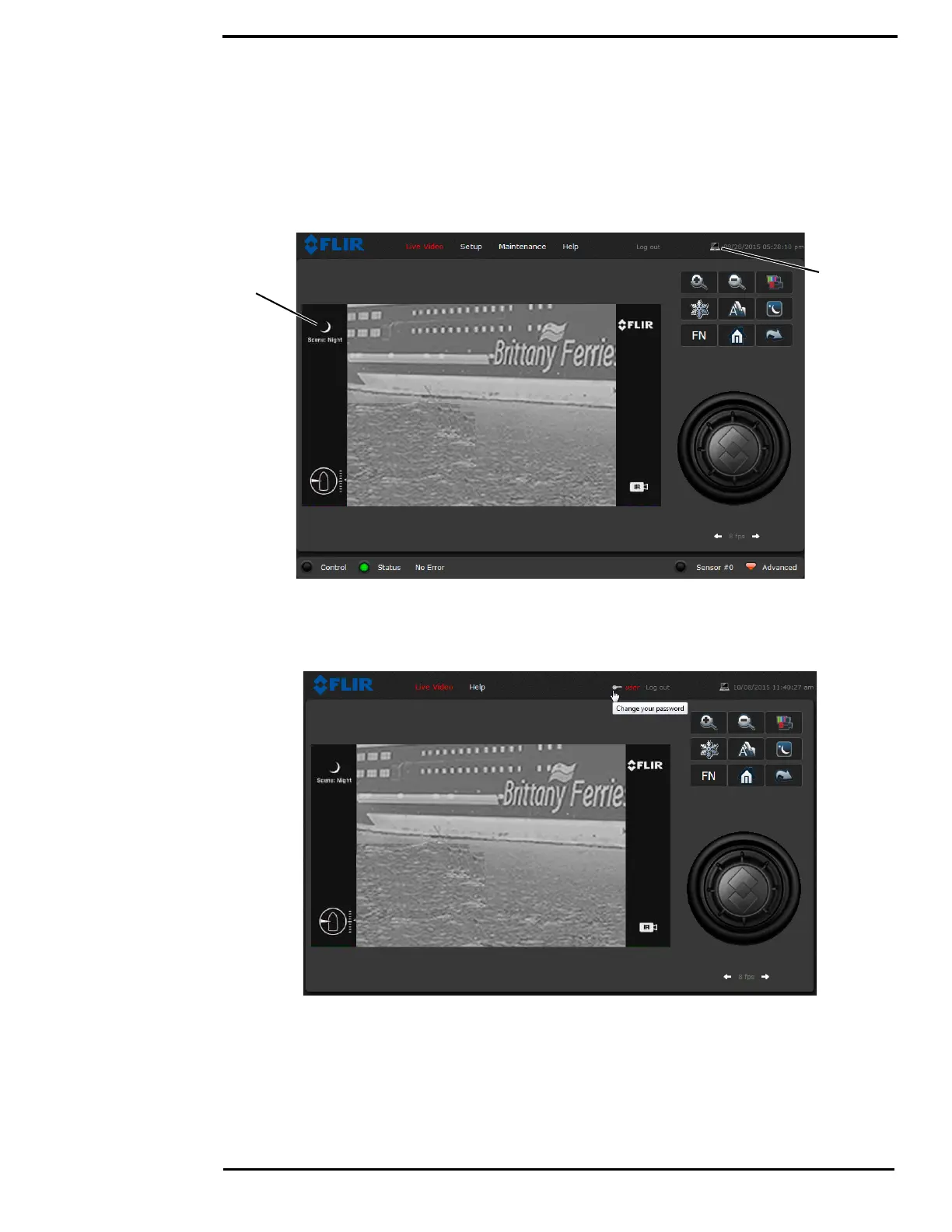

Figure 3-1: Live Video Page from admin or expert Log in
Toggle Time
AGC
Scene
Figure 3-2: Live Video Page (user log in)
