3.0 INSTALLATION
General installation information for all SR-series cameras is given below. While the general
installation procedure is the same for all cameras, there are some differences in the interfaces
and connections between various models. The instructions that are specific to certain models
are provided following the general procedures in the following sections:
4.0 SR-100 Installation
5.0 SR-100P Installation
6.0 VSR-6, SR-19, SR35, SR-50 Installation
If you have a question regarding installation or operation of your SR-Series camera, contact
FLIR Systems, Inc Customer Support, using the contact information at the front of this manual.
Check out our training web site (http://www.flir.com/training/
) to get information on courses
offered and to learn how you can become a FLIR-authorized Installer.
Take care during installation to avoid scratching the camera lens. Do not expose the camera to
direct sun for long periods without the sun shroud installed.
3.1 Accessing the Electrical Connections

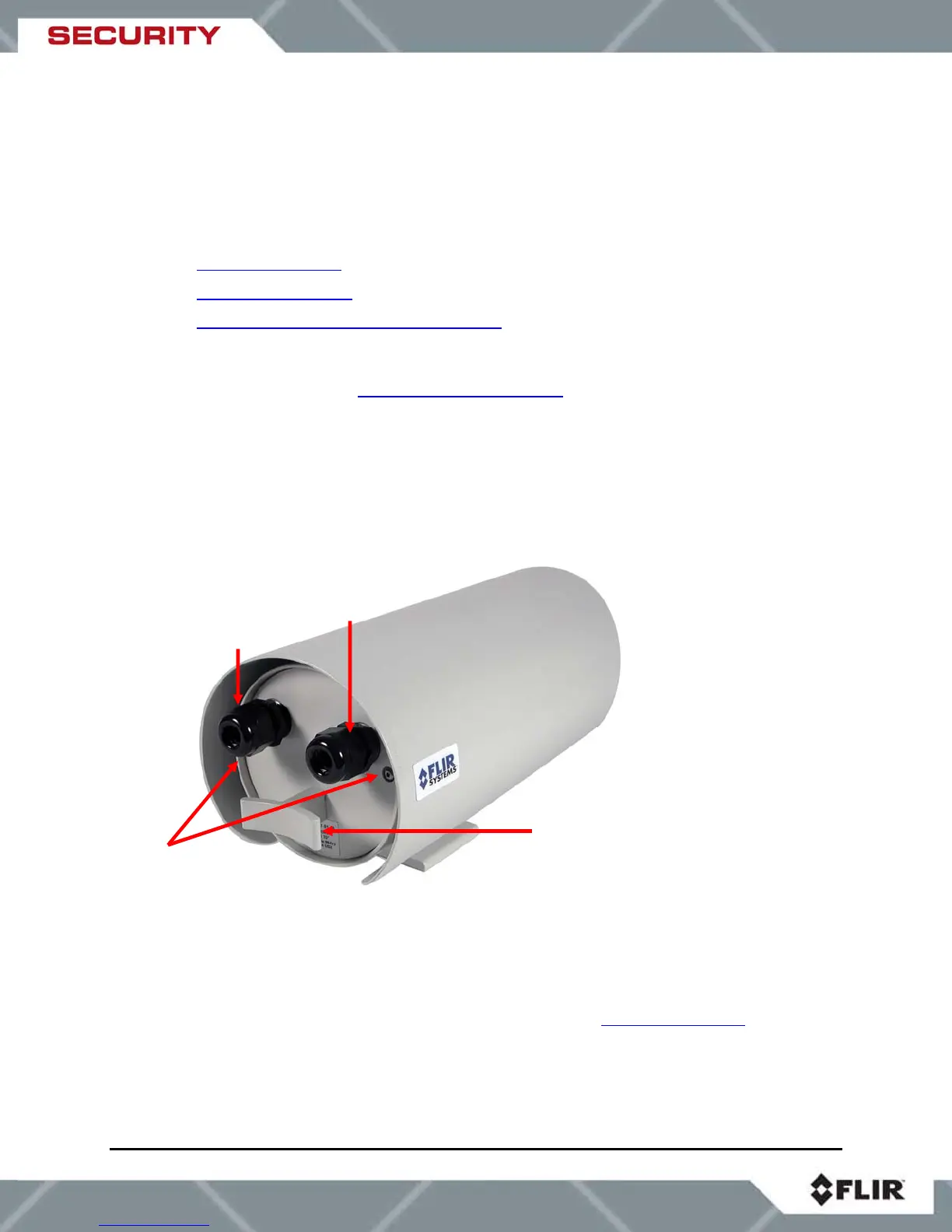

Figure 3-1: Rear view of SR-Series camera
With the exception of the SR-100P camera, it is necessary to remove the rear of the enclosure
in order to access the electrical connections (refer to section 4.0 SR-100 Installation
). No
disassembly is required for the SR-100P pressurized camera.
The SR-Series provides electrical contacts in the form of screw-terminal jacks, allowing it to
receive 16-24 AWG tinned leads from the power supply and serial communication interface.
Hex screws
“T” handle
Power and
optional serial
communications
cable gland
Video cable
gland
