427-0014-00-10 Revision 210
Copyright © 2008 FLIR Systems, Inc.
33
9.1

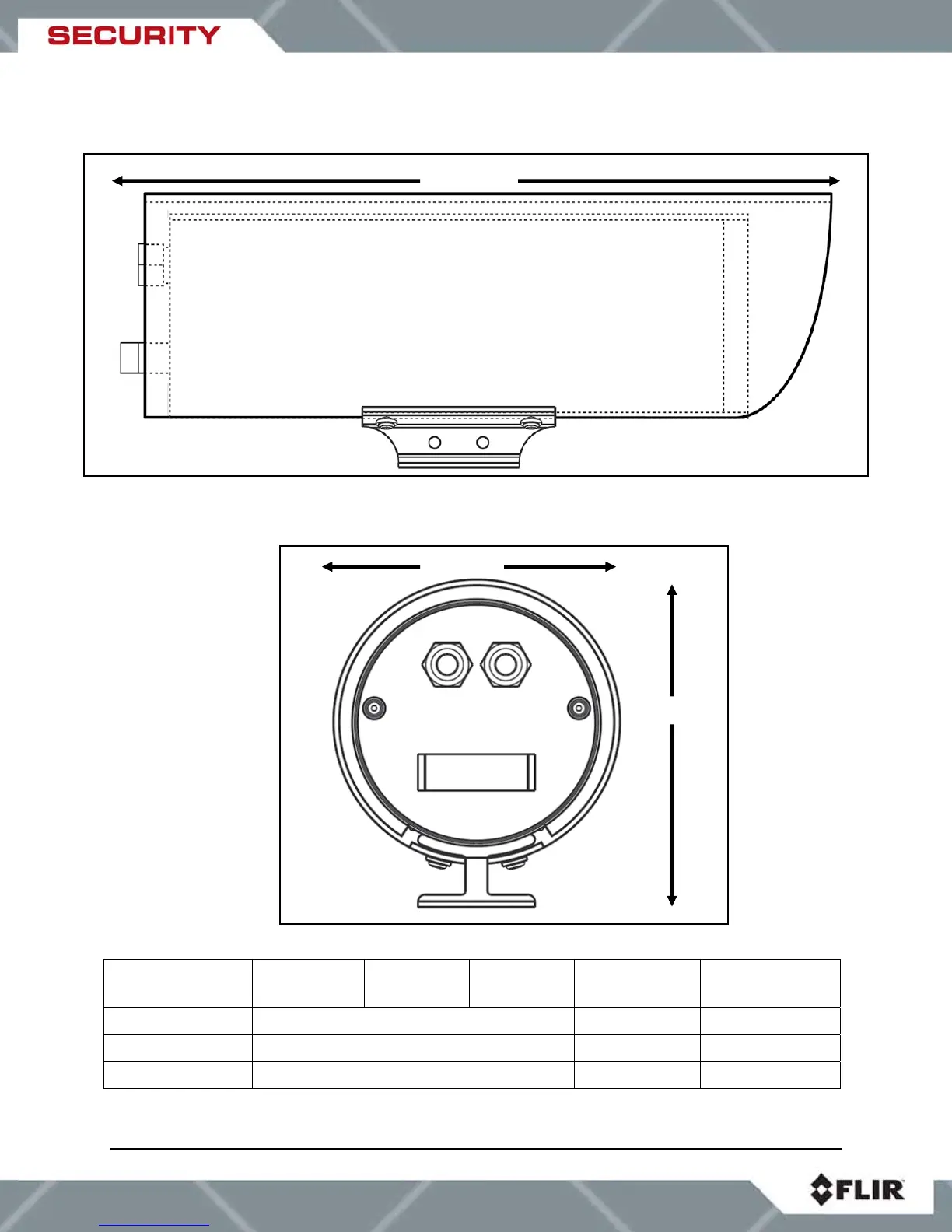

SR-Series Camera Dimensions
Figure 9-1: Camera Side View
Figure 9-2: Camera Rear View
Dimension VSR-6
SR-19
SR-35,
SR-50
SR-100 SR-100P
Length 10.5”
(26.7)
15”
(38.14) 18”
(45.7)
Width 5.0”
(12.7)
5.0”
(12.7)
4.5” (11.4)
Height 5.68”
(14.4)
5.68
” (14.4)
5.5” (13.9)
Note: Values in parentheses are in centimeters, all others in inches.
Len
g
th
Height
Width
32
34
Table of Contents
Default Chapter
2
Flir Systems Inc
2
Table of Contents
3
Revision 210 Copyright © 2008 FLIR Systems, Inc
4
Figure 1-1: Thermal Image from SR-Series Camera
6
Revision 210 Copyright © 2008 FLIR Systems, Inc
6
1 Warnings and Cautions
7
2 Introduction
8
SR-Series Camera Models
8
Figure 2-1 : Daylight Camera on Left; Thermal Image on Right
8
Serial Remote Control
9
Camera Enclosures
10
Figure 2-2: White Hot Palette on Left, Black Hot Palette on Right
10
Figure 2-3: SR-35 Camera with and Without the Environmental Enclosure
10
Package Contents
11
Figure 2-4: SR-100P with Sun Shroud
11
3 Installation
12
Accessing the Electrical Connections
12
Figure 3-1: Rear View of SR-Series Camera
12
Ground Connection
13
Figure 3-2: Earth Ground Connection
13
Input Power
14
Serial Communications
14
Sealed Cable Glands
15
Figure 3-3: Serial Communications Options
15
Analog Video Output
16
Camera Mounting
16
4 Sr-100 Installation
17
Figure 4-1: SR-100 Connection Terminal
17
Figure 4-2: Screw Terminal Connector
18
5 Sr-100P Installation
19
Figure 5-1: SR-100P with Sun Shroud
19
Figure 5-2: Mating Connector as Seen from End of Cable
20
Figure 5-3: SR-100P Enclosure Rear
21
6 Vsr-6, Sr-19, Sr35, Sr-50 Installation
22
Open Camera Enclosure
22
Figure 6-1: Front View of SR-Series Camera
22
DIP Switch Settings
23
Camera Installation
23
Figure 6-2: Serial Communications DIP Switches
23
Figure 6-3: SR-Series Connections (VSR-6, SR-19, SR-35, and SR-50)
24
Figure 6-4: Tongue and Groove Alignment
25
7 Operating the Sr-Series Thermal Camera
26
Advantages of Thermal Imaging
26
Thermal Imaging
26
Figure 7-1: Backlit Daylight Camera on Left; Thermal Image on Right
26
Configuration and Control
27
Pelco Keyboard Control (SR-100 and SR-100P Only)
28
Flat Field Correction (FFC)
28
8 Caring for Your Sr-Series Thermal Camera
29
Temperature
29
Maintenance
29
Troubleshooting Problems
30
9 Sr-Series Camera Specifications
32
SR-Series Camera Dimensions
33
Figure 9-1: Camera Side View
33
Figure 9-2: Camera Rear View
33
SR-100P Specifications
34
Figure 9-3: Enclosure Mounting Foot (All Cameras Except for SR-100P)
34
SR-100P Dimensions
35
Figure 9-4. SR-100P Dimensions Without Sun Shroud
35
Figure 9-5. SR-100P Length with Sun Shroud
35
Figure 9-6 . SR-100P Width and Height with Sun Shroud
36
Kbd300 Commands (Sr-100, Sr-100P)
37
Sr-100 & Sr-100P Control Using Tvis-7 User Interface
38
References
45
