1. Route the RG-59 video cable through the right-hand gland (when viewing from the rear)
n the rear enclosure cover and crimp the connector to the end of the cable. Connect the
able to the BNC bulkhead connector.
2. If necessary, set the SW1 DIP Switches according to the preferred RS-232 or RS-422
configuration.
3. Make sure that the O-rings supplied on the front and rear covers of the camera
enclosure are free of dirt and debris before reassembly. The O-rings are lubricated with
silicone grease.
4. Insert the SR Series camera assembly into the front of the enclosure aligning the tongue
on the underside of the interface board bracket with the groove on the inside bottom of
the enclosure, as shown in Figure 6-4. Press the two components together and ensure
the O-ring is seated properly.

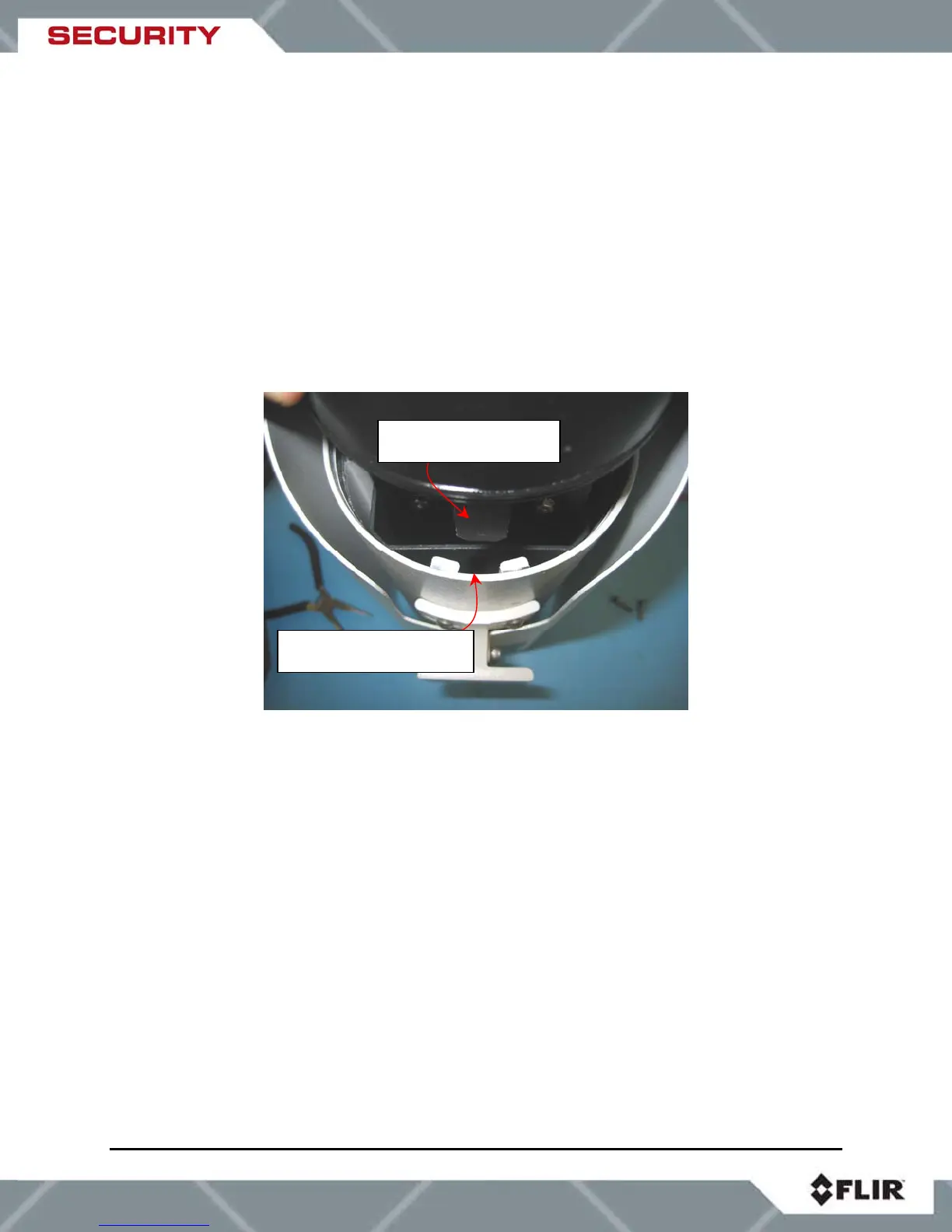

Figure 6-4: Tongue and Groove Alignment
5. Secure the front cover to the enclosure using the hex head screws. If the ground cable
inside the enclosure was disconnected, reconnect it to the ground lug on the rear plate
of the enclosure. Connect the Earth Ground lead to the Earth Ground Lug on the inside
of the rear of the enclosure (refer to Figure 3-2: Earth Ground Connection).
6. Insert the enclosure sled and rear plate into the enclosure body. Press the two
components together and ensure the O-ring is seated properly. Secure the rear plate to
the enclosure with the captive hex head screws.
7. Eliminate almost all of cable slack inside the enclosure. Now tighten the cable glands on
the rear of the enclosure to create an appropriate seal.
Bracket Tongue
Enclosure Groove
Bracket Tongue
Enclosure Groove
