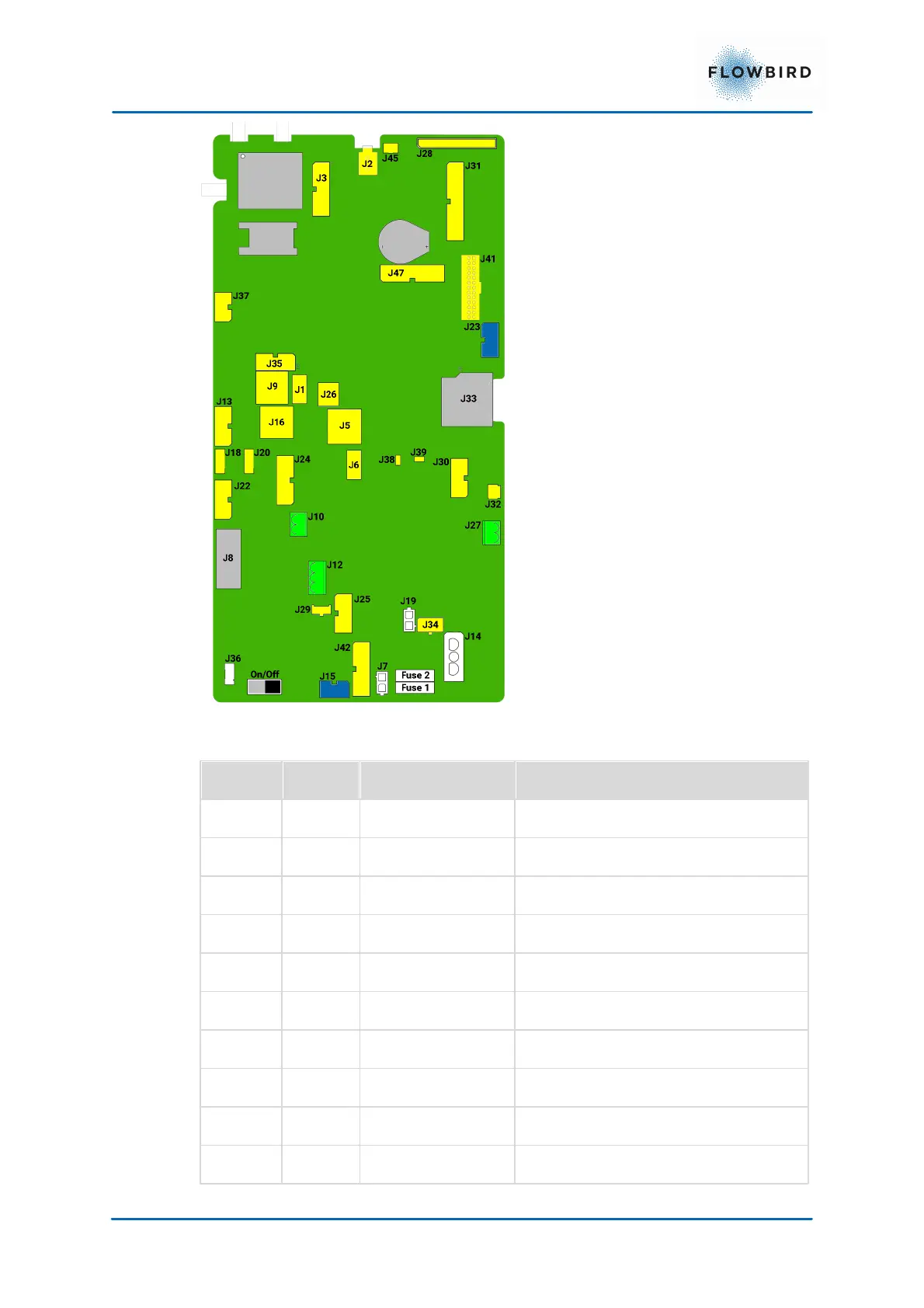

Figure 33, CPU board version 0501-E0153 Rev B
Connector
Com port
Type
Function
F1
4A Fuse (ATO)
F2
10A Fuse (ATO)
J1
USB 2.0 Host Type A
J2
Speaker
J3
Expansion board
J4
Not mounted
J5
Ethernet
J6
USB 2 host type A
J7
Battery voltage
Printer power, Gebe printer (i.e non S5)
J8
Com 7
External SPI UART
Serial 2
