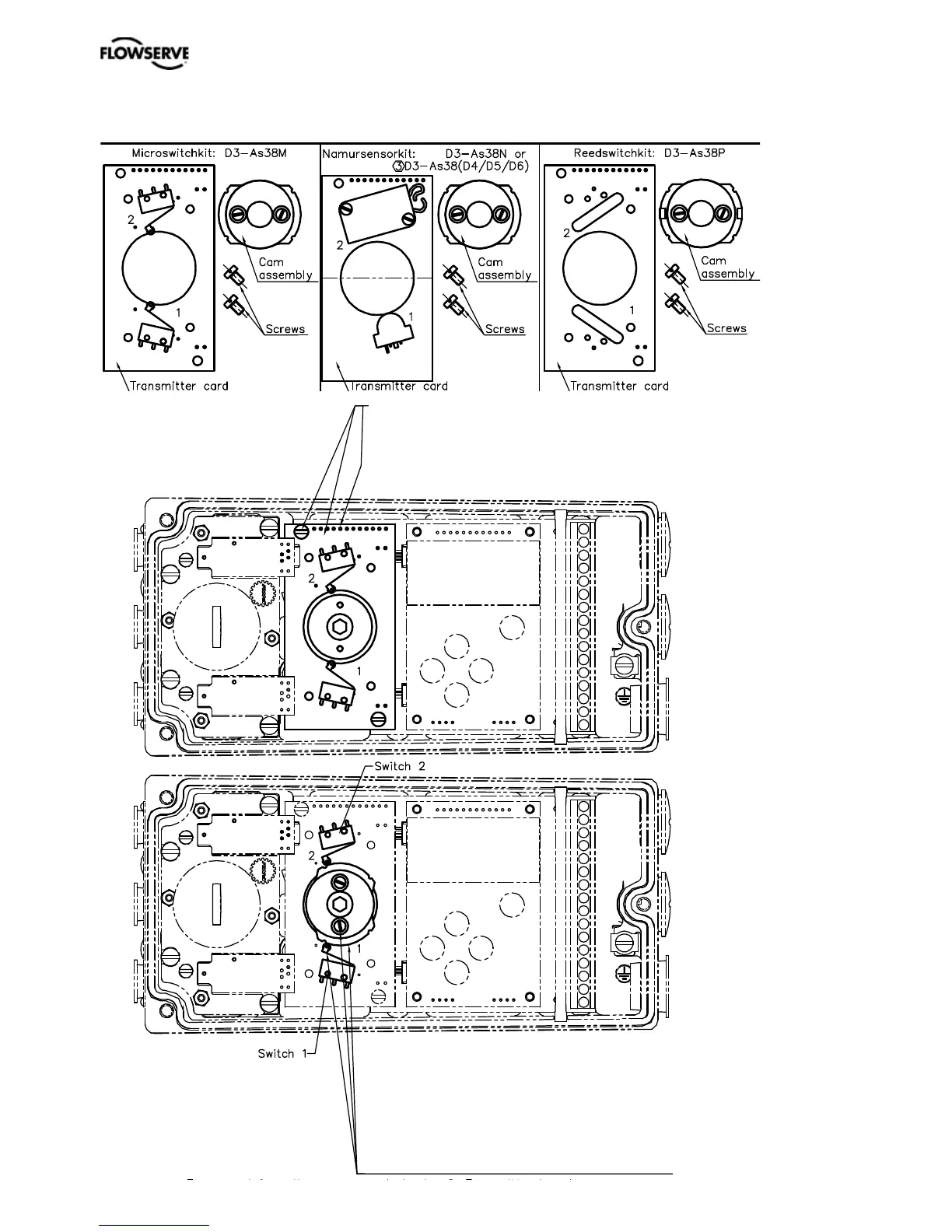

When installing the transmitter card, make sure it is placed correctly over the
connector pins before gently pushing it down until it rests on the supports.
Secure the PC board with the 2 screws. Make sure the holes are centred before
tightening the screws.
Note: When installing the cam assembly for mechanical switches,
retract both the switch arms first. Install the cam assembly and
tighten the screws loosely to obtain enough friction to lock the cams.
Adjust the lower cam first, and then the upper cam. Secure cams
setting by tightening the two screws hard. The upper cam should trip
switch/sensor no. 2.
