40
•

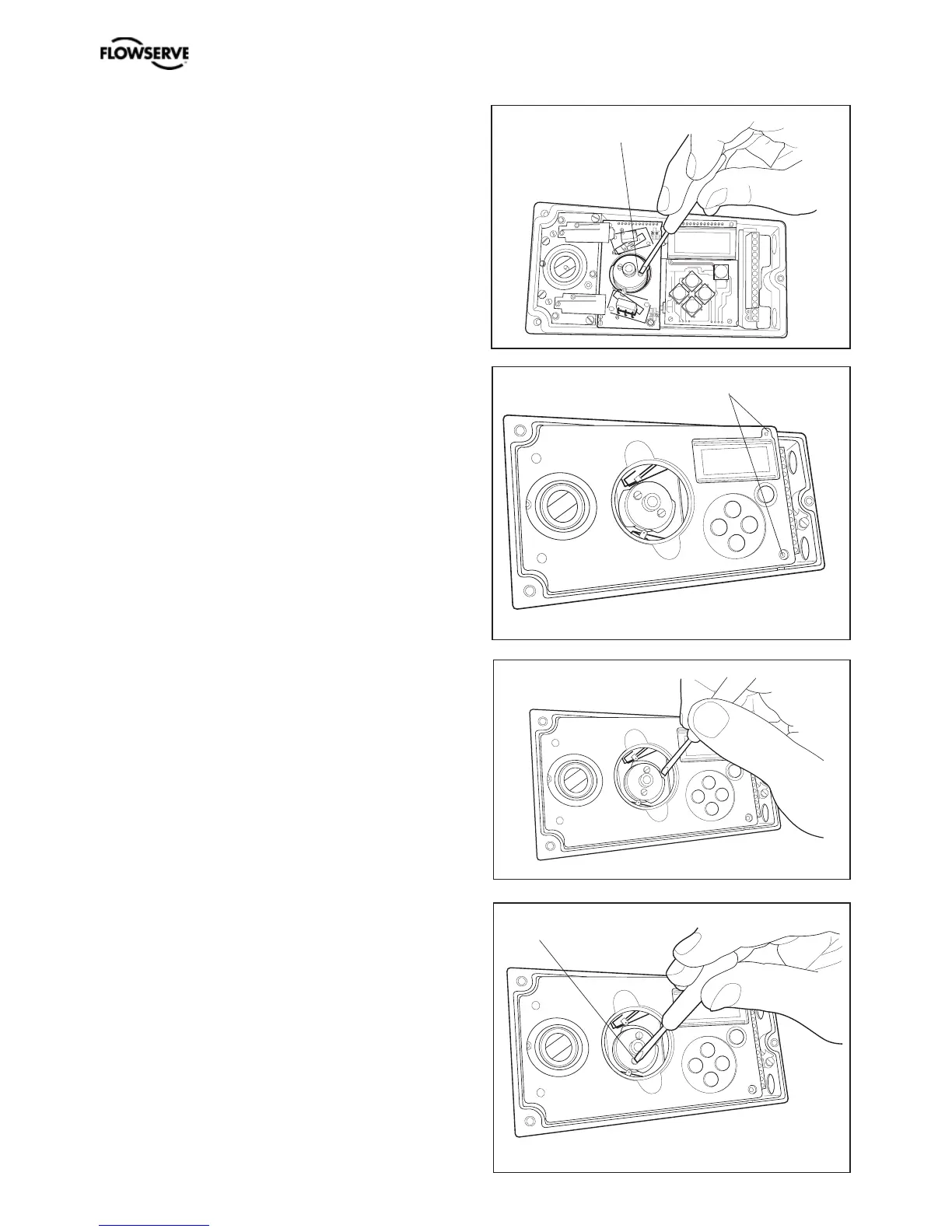

Tighten the screws F, on the cam assembly
.
Do not tighten the screws too hard. The
cams should be able to move relative to
each other.
• Install the inner cover with the two screws,
G.
• Connect the wiring for the transmitter feed-
back on the terminal block, according to
the drawings on the following two pages.
• Adjust the position where the switches/
sensors should be affected, by turning the
cams with a screwdriver.
• Tighten the cam assembly screws F when
the cams are correctly adjusted.
• Install the indicator and cover. To calibrate
the feedback transmitter, see drawings on
the following two pages.
F
G
F
