Fluke 1750 - Page 29

Power Recorder
Power Type Diagrams
21
SD
ETHERNET
POWER
175 0
POWER RECORDER
ON
BUSYLINK
100-240 V
47- 63Hz
BACN
VO LTAGE
CURRENT
GND
ØC/L3
A/L1
B/L2
C/L3
N
GND
ØB/L2
ØA/L1
azd08f.eps

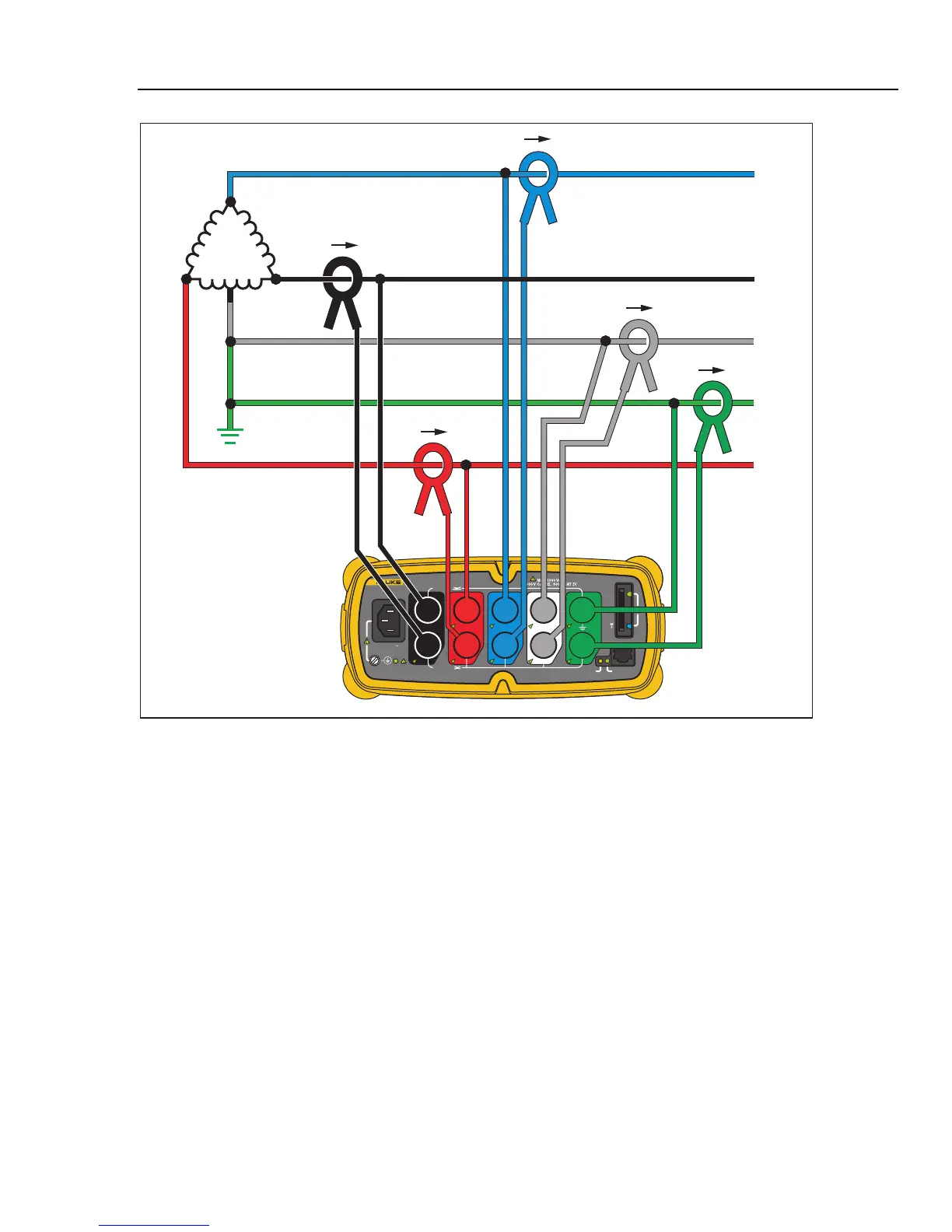

Figure 10. Three-Phase High Leg
Example: A way to get a 120 V single phase feed by tapping across part of a leg in a delta
power system
