Fluke 1750 - Page 31

Power Recorder
Power Type Diagrams
23
SD
ETHERNET
POWER
1750
POWER RECORDER
ON
BUSYLINK
100-240 V
47-63Hz
BACN
VO LTAGE
CURRENT
GND
ØB/L2
C/L3
A/L1
GND
B/L2
ØA/L1
ØC/L3
azd13f.eps

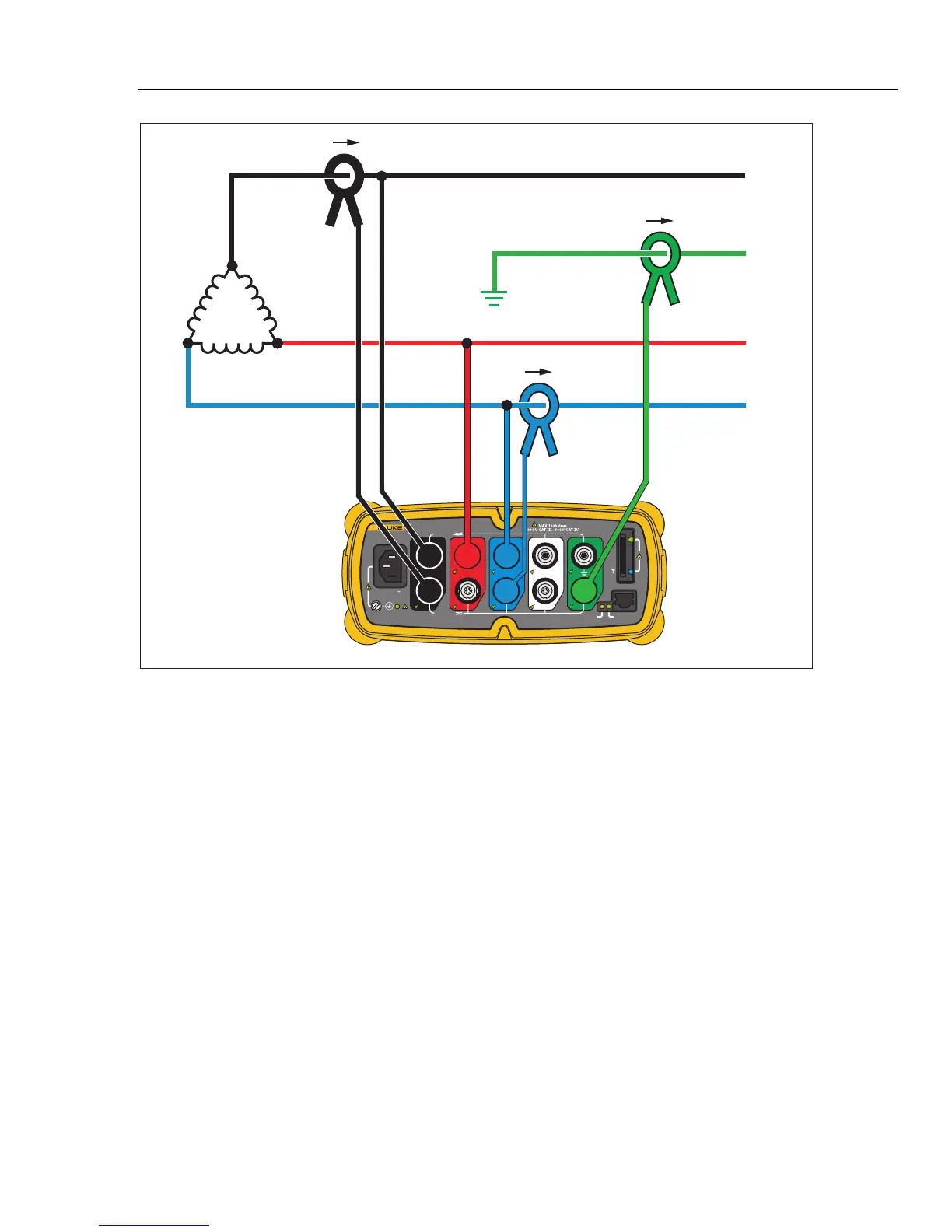

Figure 12. 2-Element Delta
Example: Blondel or Aron connection, used to measure power like a two-element
revenue power meter.
