1750
Operators Manual
46

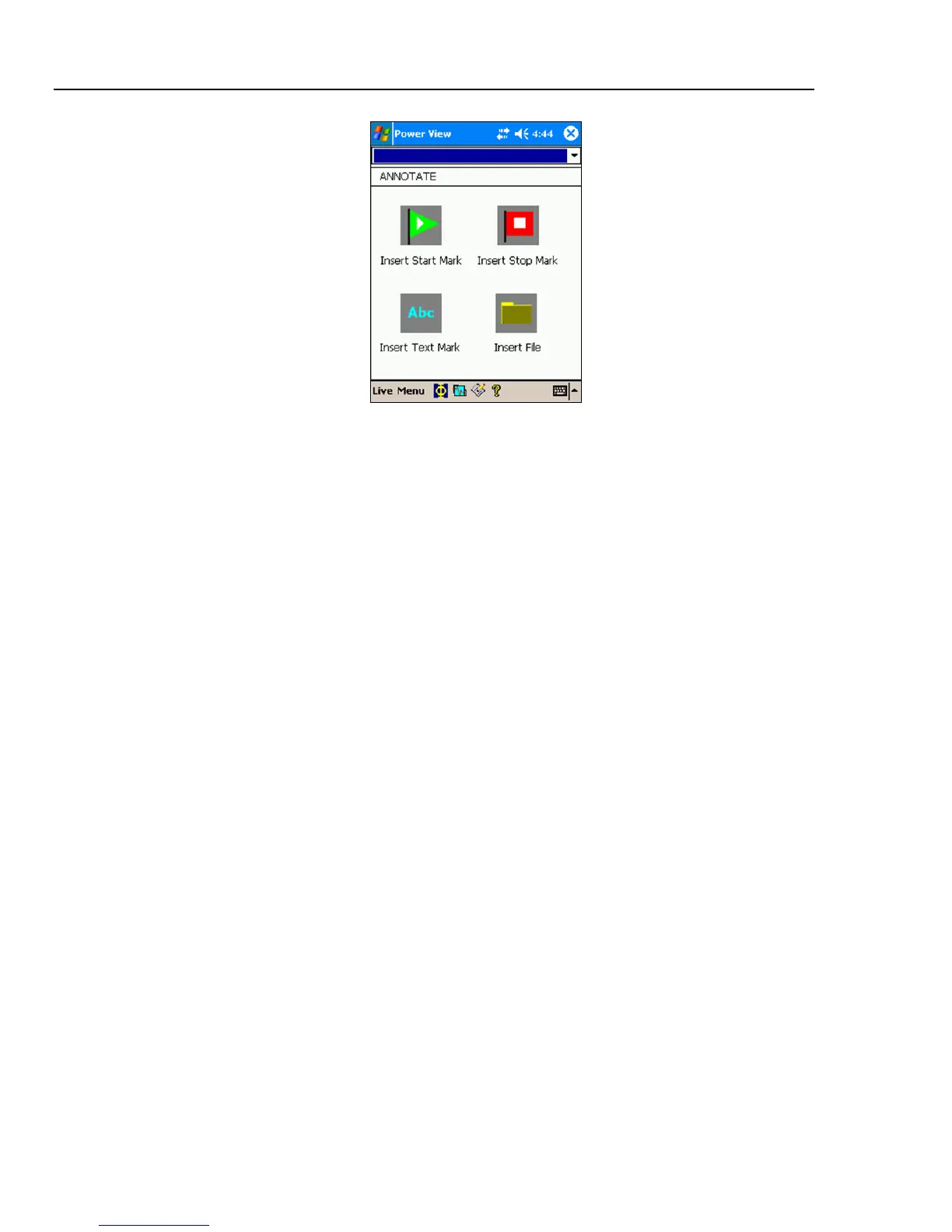

There are five types of annotations:
• START annotation (green)
The START annotation can be used to signify where important data begins. For
example, the operator might want to establish a start annotation after having finished
all probe connections and instrument setup, to indicate that any preceding data was
preliminary.
Note
You are not limited to using the START and STOP annotations in pairs, or
to show a range of data. You can use each as many times as desired to
mark a particular point during recording.
• STOP annotation (red)
The STOP annotation can be used to signify where important data ends.
• File annotation (yellow)
File annotations contain the name of a picture or audio file relevant to the data. See
“Using Image or Voice Annotations” later in this manual.
• Text annotation
Text annotations contain a text note.
• Power Configuration Change annotation
Power Configuration Change annotations are inserted by the system when a change is
made to the Power Configuration in the Recorder. These markers only display in the
Download dialog box.
To show or hide annotation markers:
• In the Volts/Amps/Hz or Events view, check or uncheck the Annotations option on
the view controls.
To open an annotation:
• In the Volts/Amps/Hz view, Events view, or Download dialog box, click on the
annotation.
If the annotation is associated with an audio (.WAV) or image (.jpg) file, the
application associated with that file will start and open the file. If the file is not in the
