Fluke 196 - Making Scope Connections

Using The Scope
Making Scope Connections
1
11
Making Scope Connections
To make dual input scope measurements, connect the
red voltage probe to input A, and the gray voltage probe
to input B. Connect the short ground leads of each
voltage probe to its own reference potential. (See Figure
6.)
Note
To maximally benefit from having independently
isolated floating inputs and to avoid problems
caused by improper use, read Chapter 7: “Tips”.

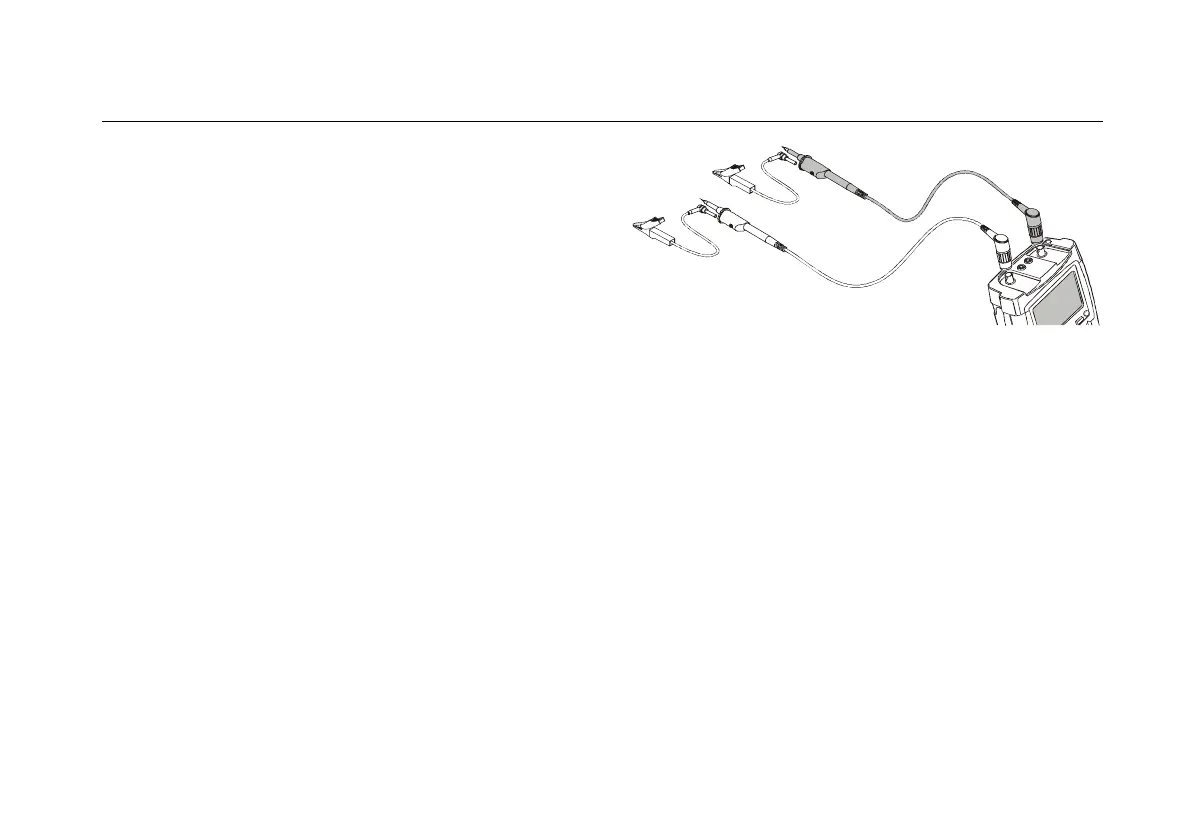

Figure 6. Scope Connections
