Fluke 5080A Service Manual

Calibrator
Performance Tests
31
High Resistance Source (HVR) Verification
To verify the High Resistance Source function:
1. Connect the high resistance source output to the input terminals of a
standard multimeter in 2-wire configuration as shown in Figure 8.
Fluke 5080A
Fluke 8508A
gru002.eps

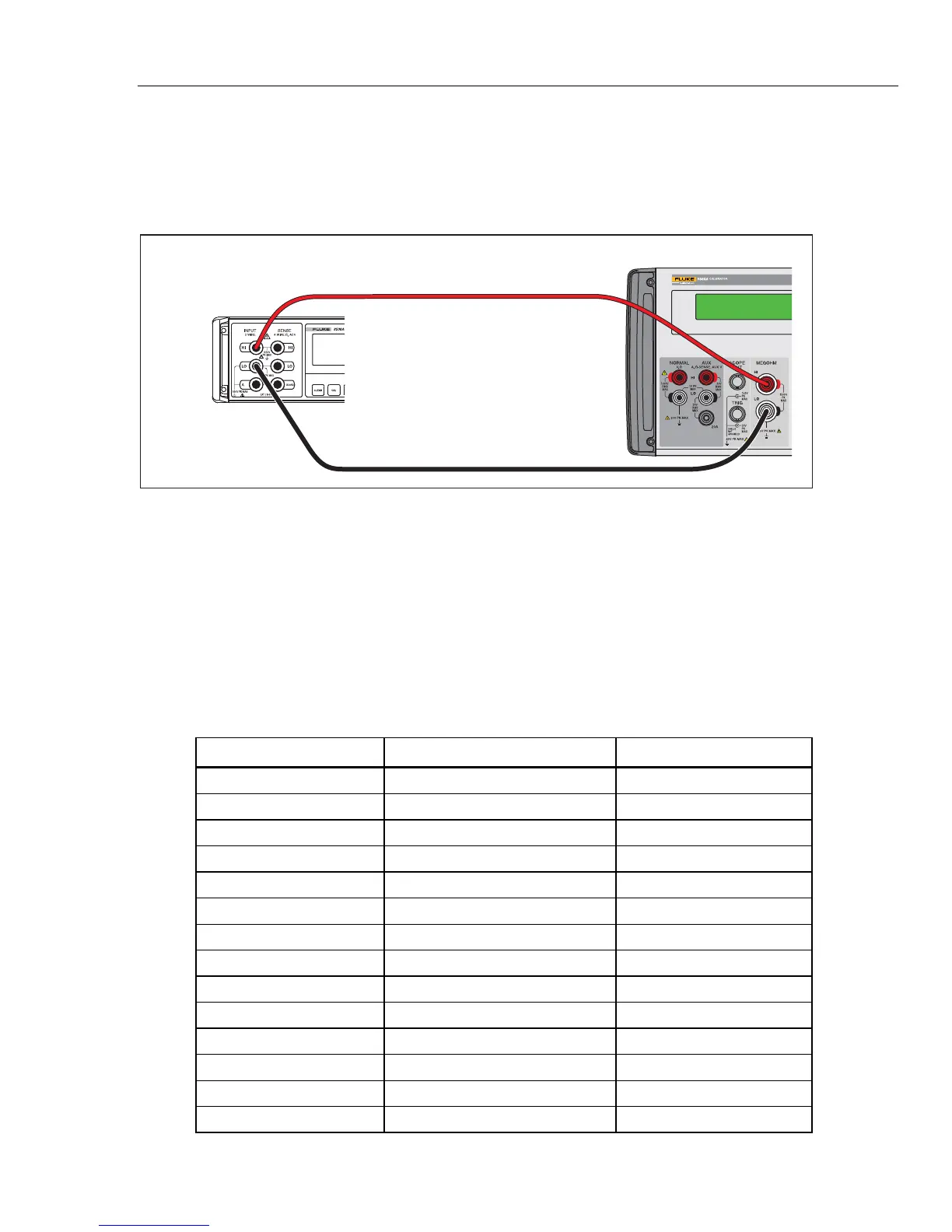

Figure 8. High Resistance Source Calibration Connections
2. If not already on, push  on the Product.
3. Push the softkey labeled MODE until hvr shows above the right-most Product
softkey.
4. Set the multimeter for 2-wire ohms measurement and auto range.
5. Measure the High Resistance calibration performance at each resistance
point shown in Table 16. Deviations should not be greater than the specified
limits.
Table 16. Megohm Option HVR Verification Points
Range Output Tolerance
10.000 kΩ 10.000 kΩ ±0.0200 kΩ
11.550 kΩ 11.550 kΩ ±0.0231 kΩ
21.000 kΩ 21.000 kΩ ±0.042 kΩ
42.000 kΩ 42.000 kΩ ±0.0840 kΩ
80.850 kΩ 80.850 kΩ ±0.1617 kΩ
100.00 kΩ 100.00 kΩ ±0.0200 kΩ
150.20 kΩ 150.20 kΩ ±0.0300 kΩ
288.20 kΩ 288.20 kΩ ±0.576 kΩ
500.00 kΩ 500.00 kΩ ±1.000 kΩ
535.50 kΩ 535.50 kΩ ±1.071 kΩ
1.0000 MΩ 1.0000 MΩ ±0.00300 MΩ
1.0290 MΩ 1.0290 MΩ ±0.00309 MΩ
1.9200 MΩ 1.9200 MΩ ±0.00576 MΩ
3.6600 MΩ 3.6600 MΩ ±0.01098 MΩ
