Getting Acquainted with the Calibrator
Input and Output Terminals

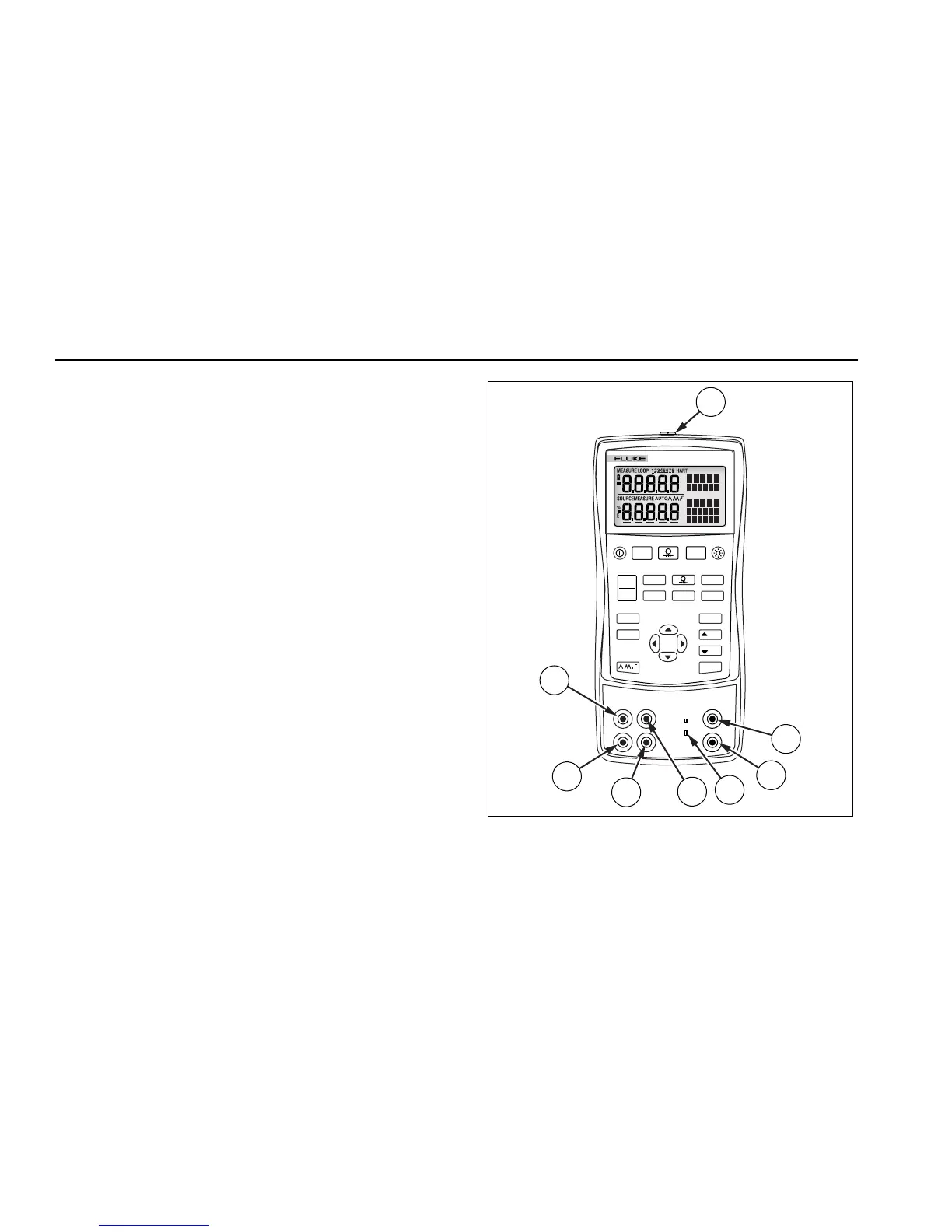

Figure 2 shows the Calibrator input and output terminals.
Table 3 explains their use.
726
PRECISION CALIBRATOR
0%
25%
25%
SAVE
RECALL
Return to
Recal
FREQ
MEAS
SOURCE
ENTER
EXIT CONFIG
HART
TC
RTD PULSE
V mA
V mA
LOOP
SWITCH
TEST
100%
%Error
ZERO
3 Seconds
OPEN/CLOSE
TRIGGER/STOP
CONFIG
SELECTION
Return to
Recall
7
8
6
5
4
3
2
1
bec05f.eps
Figure 2. Input/Output Terminals and Connectors

Fluke 726 Specifications

General

Auto-ramp function	Yes
Measuring parameters	Current, Frequency, Resistance, Temperature, Voltage
Frequency source accuracy	0.5 %
Frequency measurement accuracy	0.05 %
DC current measurement accuracy	0.01 %
DC voltage measurement accuracy	0.025 %
Resistance measurement accuracy	0.015 %
Product color	Black, Yellow

Weight and Dimensions

Depth	47 mm
Width	96 mm
Height	200 mm
Weight	650 g
