Memory Locations
Data Point
1
S A V E
D A T A
Save Data Mode Indicator
bec46f.eps

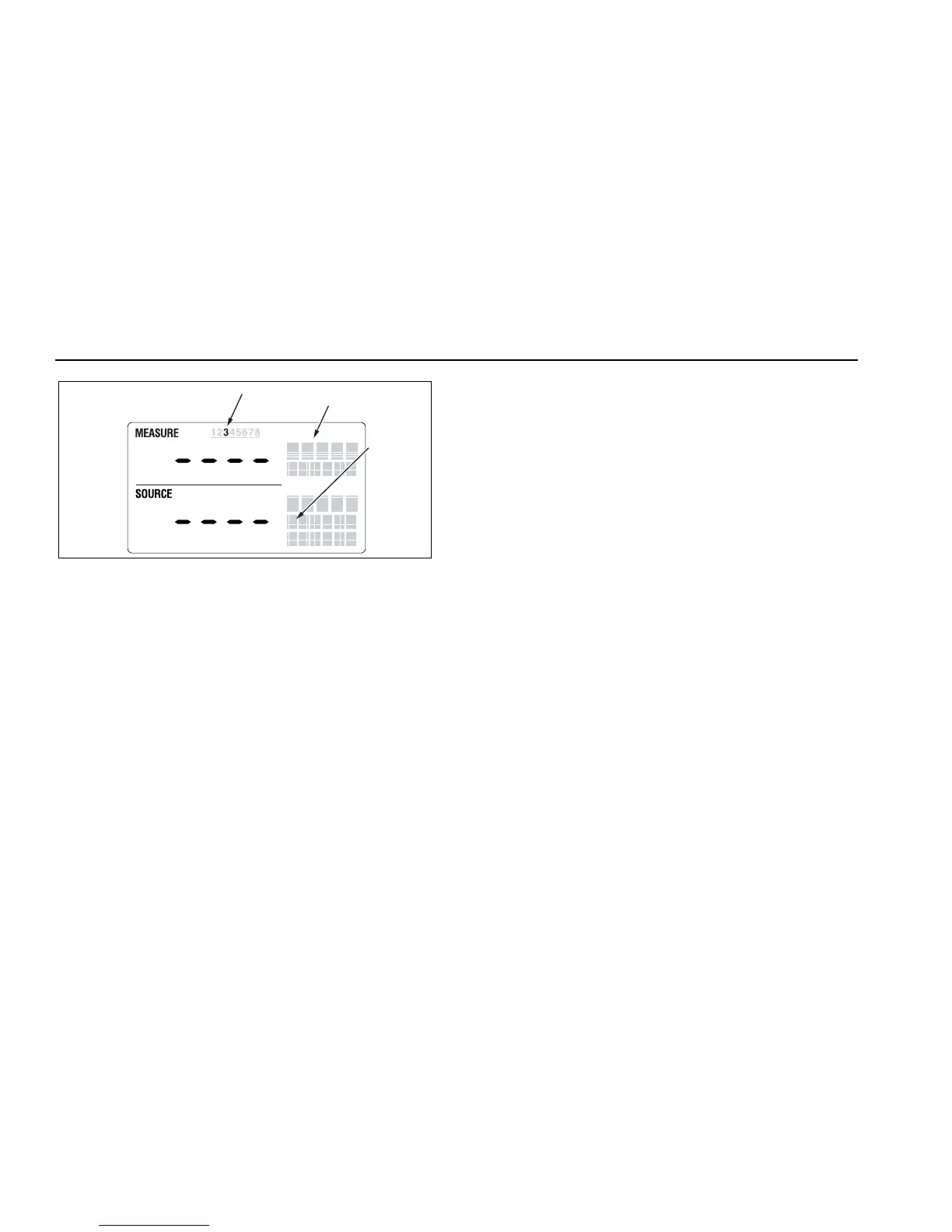

Figure 19. SAVE DATA Menu Showing Measurement
Memory Location 3, 1
Recall Data
To recall data:
1. Push S twice. The right side of the display
changes to show RECL SETUP and RECALL DATA.
2. Push W to highlight RECL DATA (bottom right of the
display).
3. Push S.
4. Push Z to choose the desired memory location (top
of the display).
The data saved in that first memory location now
appears. There can be different measurements
stored (1-5) for each memory location (1-8).
5. Push Y or Z to select the correct data location
(bottom right of display).
6. Push S to recall the data stored in that location.
7. Push W to return to the same RECALL DATA
location to see the next saved measurement, 2 of 5
for example.
Pulse Train Source/Read
Pulse Train Source/Read counts input pulses or sources
output pulses. Use the configuration menus to set the
frequency and output voltage. Refer to “Configuration
Menus” earlier in this manual. The number of counts is
set through the main display and cannot be changed
while sourcing pulses.
L works as a trigger/stop key
in this mode since ramping or stepping during a pulse
train is not relevant.
