Fluke 8062A - Page 71

Maintenance
General Information
4
4-9
Shock Absorber
LCD Interconnect
Microcomputer PCB
CAUTION:
Use tweezers to insert.
Do not handle with fingers.
Microcomputer
Interconnect
Insert edge
under retainer
LCD Plate
(Do not remove)
LCD Bracket
LCD Support
Display Lens
Serial # effectivity. 3995000
Gasket
Align, then push down
and snap into place.
CAUTION:
Use tweezers to insert.
Do not handle with fingers.
CAUTION:
Static Sensitive.
LCD Display
dy33c.eps

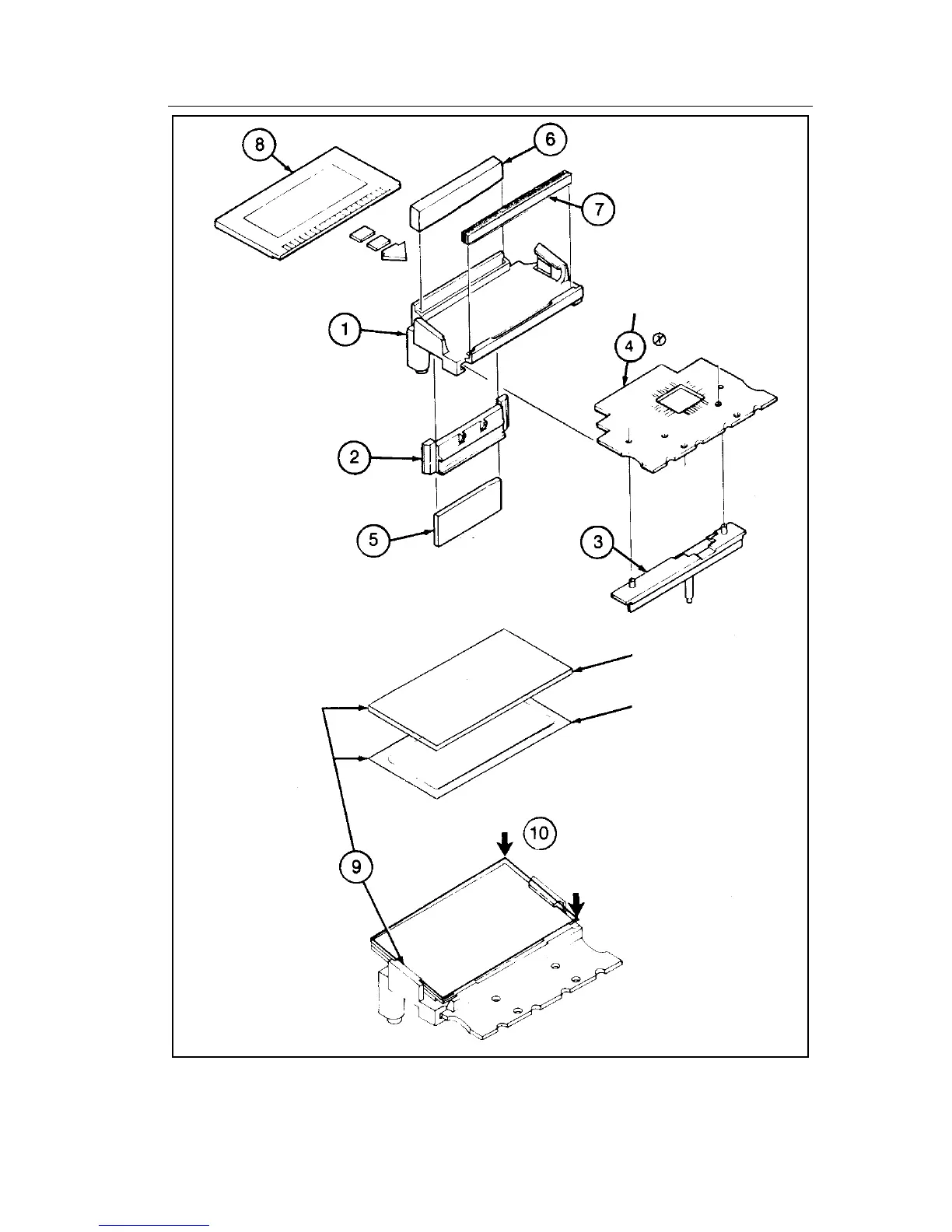

Figure 4-2. Assembling/Disassembling the Microcomputer PCB and
LCD
