Fluke BT521 User Manual

Maintenance
Install or Replace the Battery Pack 7
7-3
Install or Replace the Battery Pack
Warning
Never operate the Product with the Battery Cover removed.
Hazardous voltage exposure may occur.
To install or replace a Battery Pack:
1. Make sure the Product is off.
2. Remove all probes and/or test leads.
3. Unlock the battery cover at the rear of the Product. Turn the screw a quarter turn
counter clockwise.
4. Install the battery pack.
5. Put the battery cover back on the unit.
6. Tighten the screw.

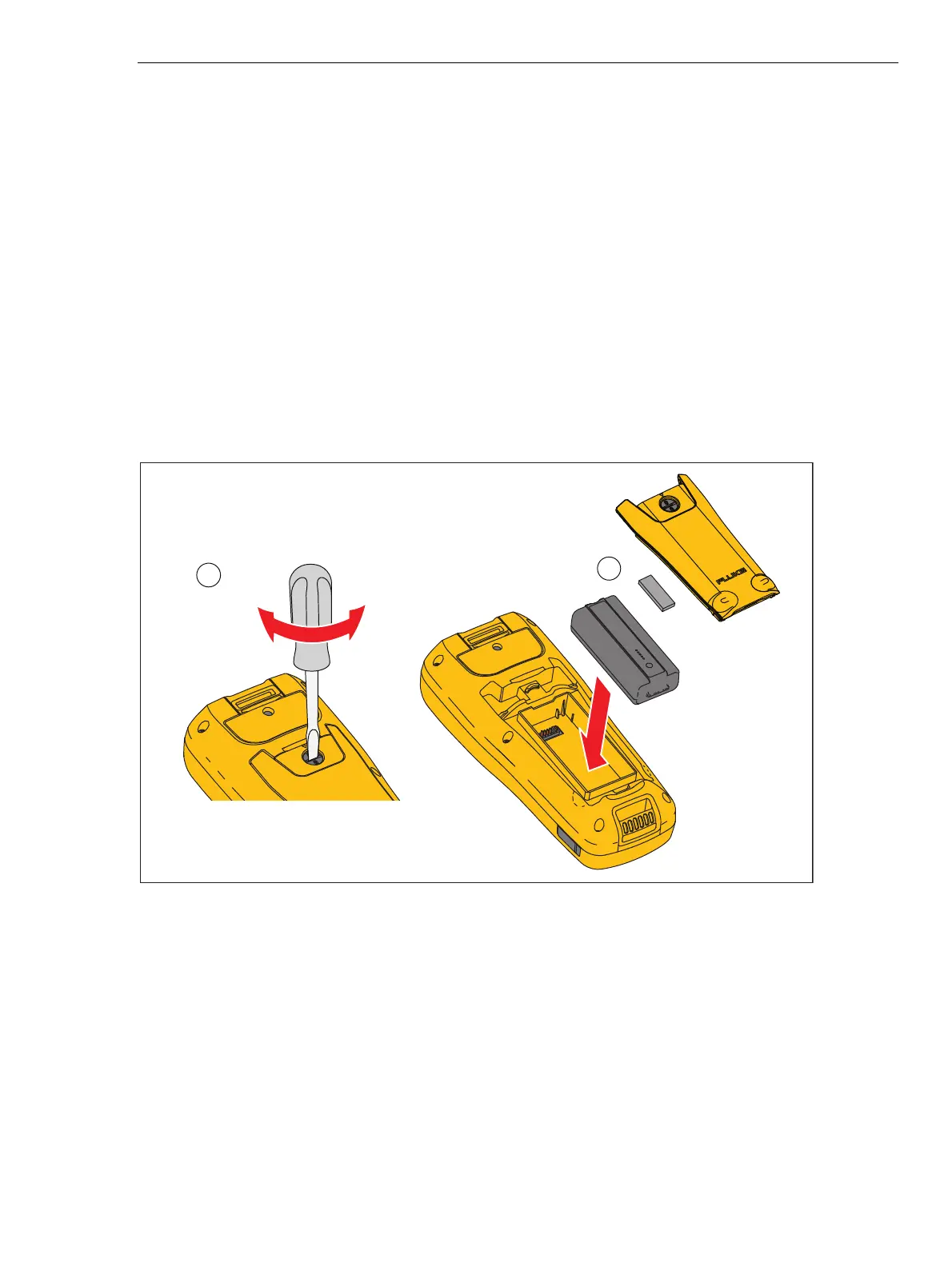

Figure 7-1 shows how to install or replace a battery pack.
1
2
hpo005.eps
Figure 7-1. Install or Replace a Battery Pack

Fluke BT521 Specifications

General

Certification	RoHS, IEC 61326
Product color	Black, Yellow
Frequency range	50 - 60 Hz
Maximum measured voltage	600 V
Minimum measured voltage	6 V
International Protection (IP) code	IP40
Operating temperature (T-T)	0 - 40 °C
Display type	LCD
Built-in display	Yes
Battery voltage	7.4 V

Weight and Dimensions

Depth	58 mm
Width	103 mm
Height	220 mm
Weight	850 g
