sensALIGN3 sensor and reflector
sensALIGN 3 sensor
The sensor has an integrated Bluetooth, and contains a position detector, which
measures the position of the laser beam as the shafts are rotated. The sensor also
contains an electronic inclinometer for shaft rotation measurements. The semi-
conductor laser diode within the sensor emits a ray of red light (wavelength 630 –
680 nm) which is visible at the point it strikes a surface. The Class 2 laser beam is emitted
with a diameter of approx. 5 mm (3/16”).
The sensor has two indicator LEDs on its front side. When facing the sensor, the left LED shows
both the laser beam adjustment and charging statuses. The LED lights red, orange or green
depending on current function. The LED on the right shows the Bluetooth communication status
and lights blue when scanning and when communication is established.
The sensor is water and dust resistant (IP 65). The internal optics and electronics are intern-
ally sealed, preventing possible contamination.
The sensor is powered using its internal 3.7 V 5 Wh Lithium-ion rechargeable battery.
The sensor is turned on by pressing its On/Off switch. The red LED lights when sensor is
switched on.
The sensor is turned off by pressing and holding briefly its On/Off switch until both LEDs are
off.
WARNING
When the sensor is switched on, the laser beam is emitted. DONOTstare into the laser
beam!

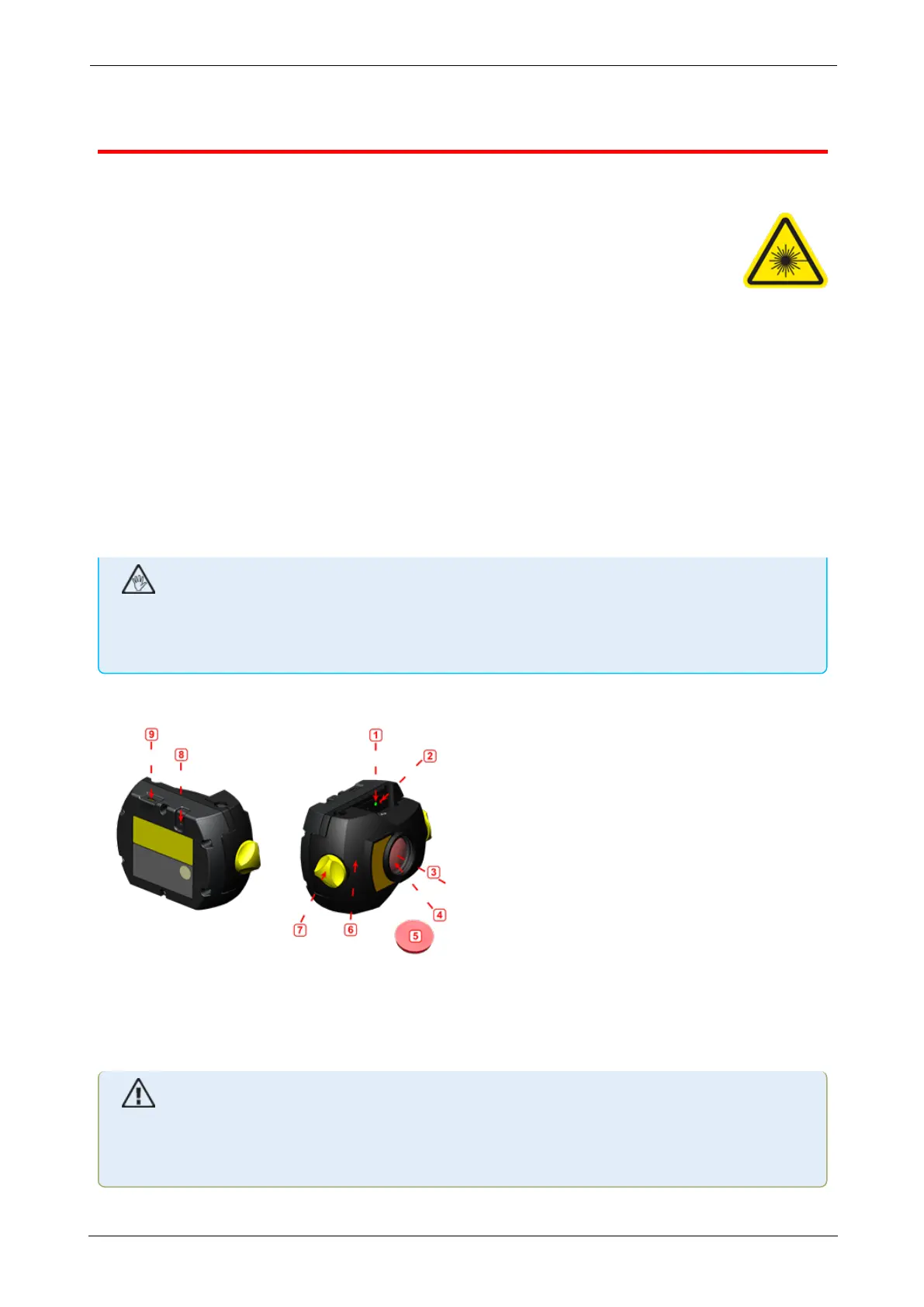

The following illustrations shows both the front and back sides of the sensor.
1: Laser beam status and charging LED; 2: Laser on/Bluetooth communication LED; 3: Laser
beam; 4: Scratch resistant lens; 5: Sensor dust cap; 6: IP 65 housing; 7: Locking knob; 8:
On/Off switch; 9: Micro USB port
CAUTION
Under no circumstances may the six housing torx head screws be removed, as that
would void all warranty coverage.
SHAFTALIGNtouch 13
